NordicTrack NTEL99421-INT.2 User Manual

7
6. Rotate the Right Upper Body Arm (9) to the
position shown.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
Next, tighten the indicated M10 x 45mm
Hex Screw (78).
Then, press the Upper Body Arm Cover (20)
downward and turn it so that it is flush with the
Right Leg Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
6
9
78
95
20
11, 15
6
5
61
28
2
4

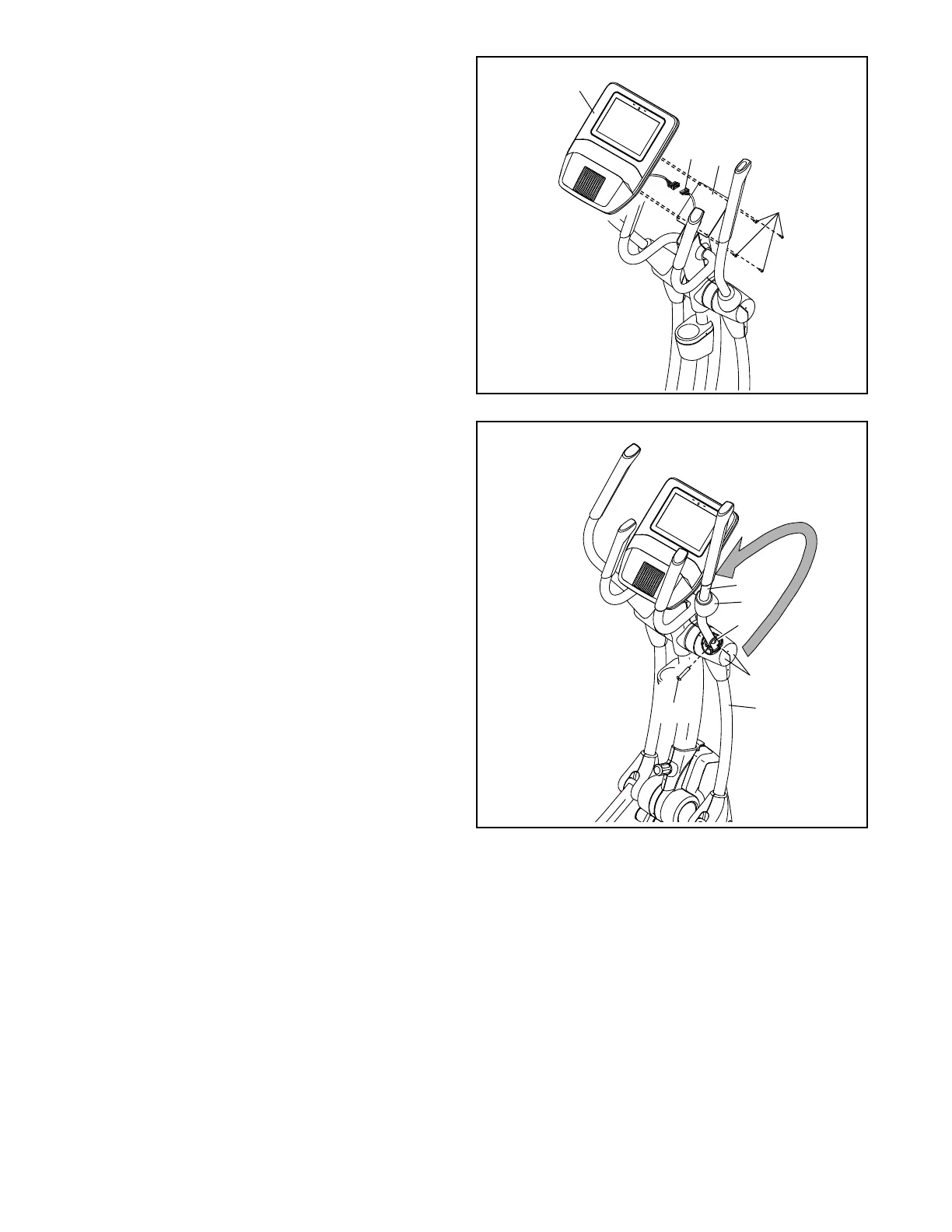

5. While a second person holds the Console (4)
near the Upright (2), connect the Main Wire (28)
to the wire on the Console. Tip: The wire con-
nectors should slide together easily and
snap into place with an audible click. If they
do not, turn one connector and try again.
Insert the excess wire into the Upright (2).
Tip: Avoid pinching the wires. Attach
the Console (4) to the Upright (2) with four
M4 x 16mm Screws (61); start all the Screws,
and then tighten them.
Avoid pinching
the wires
