32
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power
cord. Next, remove the three indicated M4 x 16mm
Screws (83) from the Right and Left Shields (30, 32).
Then, carefully pull the tops of the Right and Left
Shields (30, 32) apart a few inches.

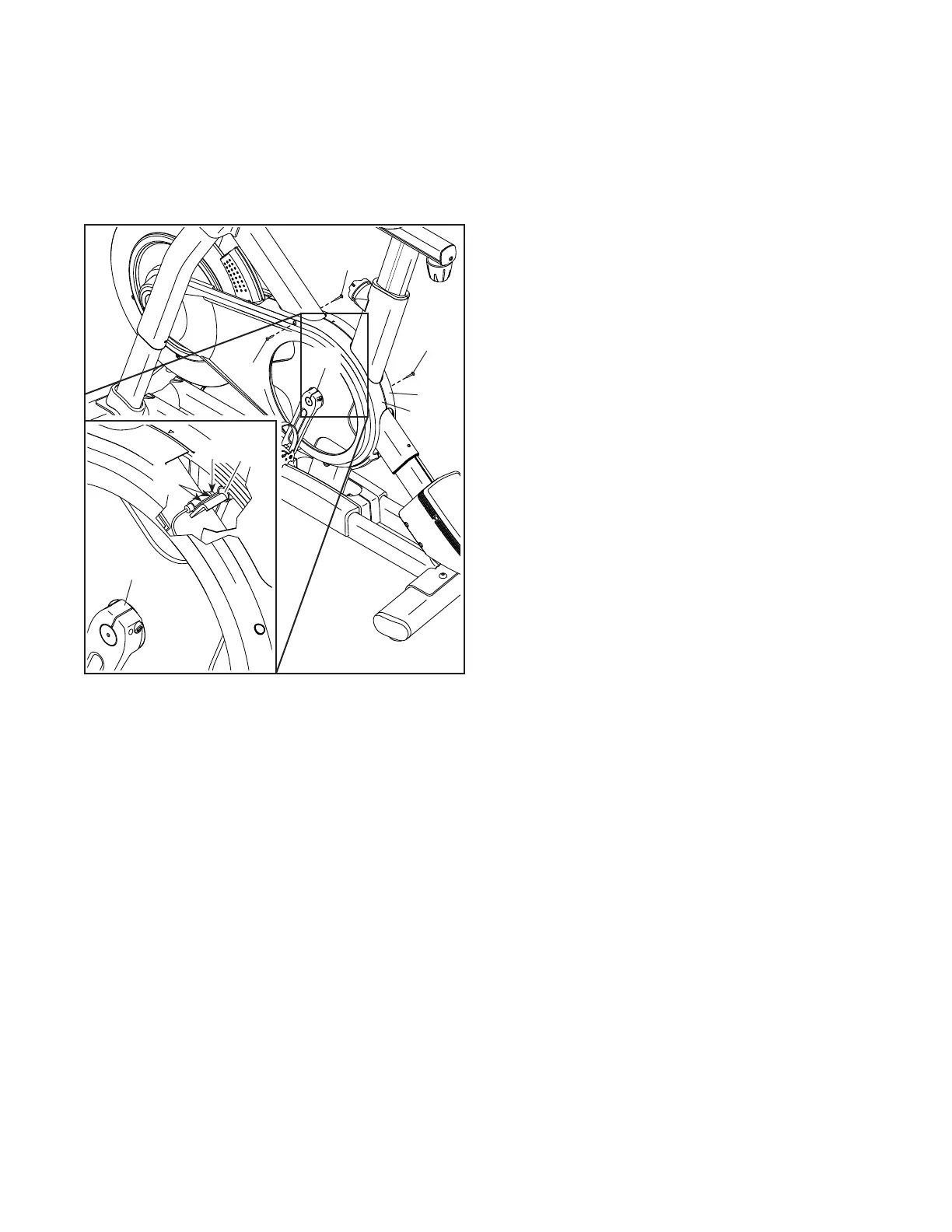

See the inset drawing. Slightly loosen the two indi-
cated M4 x 16mm Screws (83). Next, rotate the Left
Crank Arm (21) until a Pulley Magnet (137) is aligned
with the Reed Switch (115). Slide the Reed Switch
slightly toward or away from the Pulley Magnet. Then,
retighten the Screws.
Plug in the power cord and rotate the Left Crank Arm
(21) for a moment. Repeat these actions until the con-
sole displays correct feedback.
When the reed switch is correctly adjusted, reattach
the Right and Left Shields (30, 32).
83
30
32
83
83
21
115
83
21
137
115
83
