10
7
2
57
8
69
7
B
B
A
A

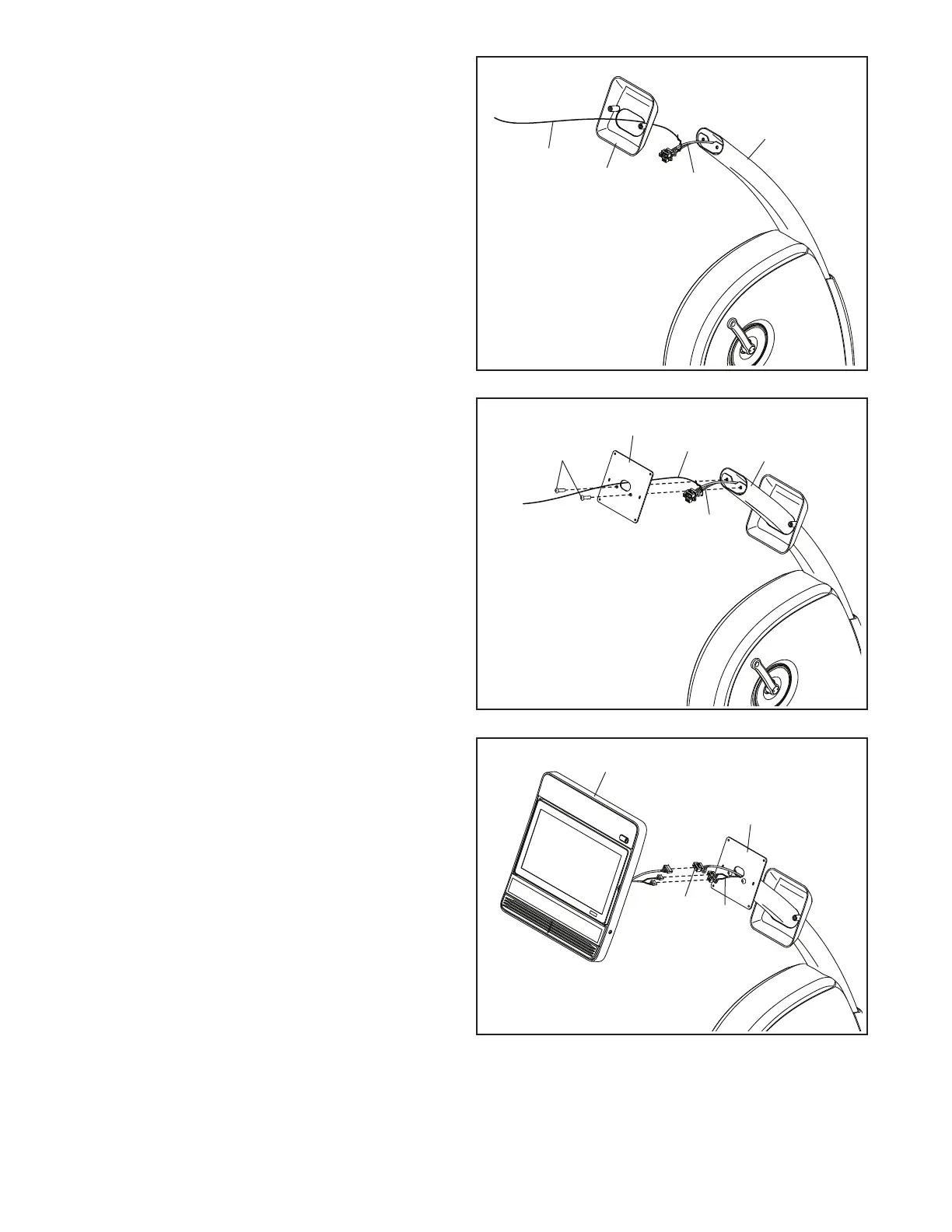

7. Orient the Upright Cover (57) as shown. Hold the
Upright Cover near the Upright (2), and insert
the wire tie (A) and the wires (B) upward through
the Upright Cover.
Then, slide the Upright Cover (57) onto the
Upright (2).
8. Orient the Console Plate (7) as shown. Hold the
Console Plate near the Upright (2), insert the
wire tie (A) and the wires (B) upward through the
Console Plate.
Tip: Avoid pinching the wires. Attach the
Console Plate (7) to the Upright (2) with two
M8 x 22mm Screws (69).
2
Avoid pinching
the wires
9
4
7
42
43
9. Untie and discard the wire tie on the Main Wire
(43) and the Control Wires (42).
While a second person holds the Console (4)
near the Console Plate (7), connect the wires
on the Console to the Main Wire (43) and the
Control Wires (42).
Insert the excess wire into the Console Plate (7).
Tip: It may be helpful to insert the connectors
on the wires one at a time through the hole in
the Console Plate.
