7

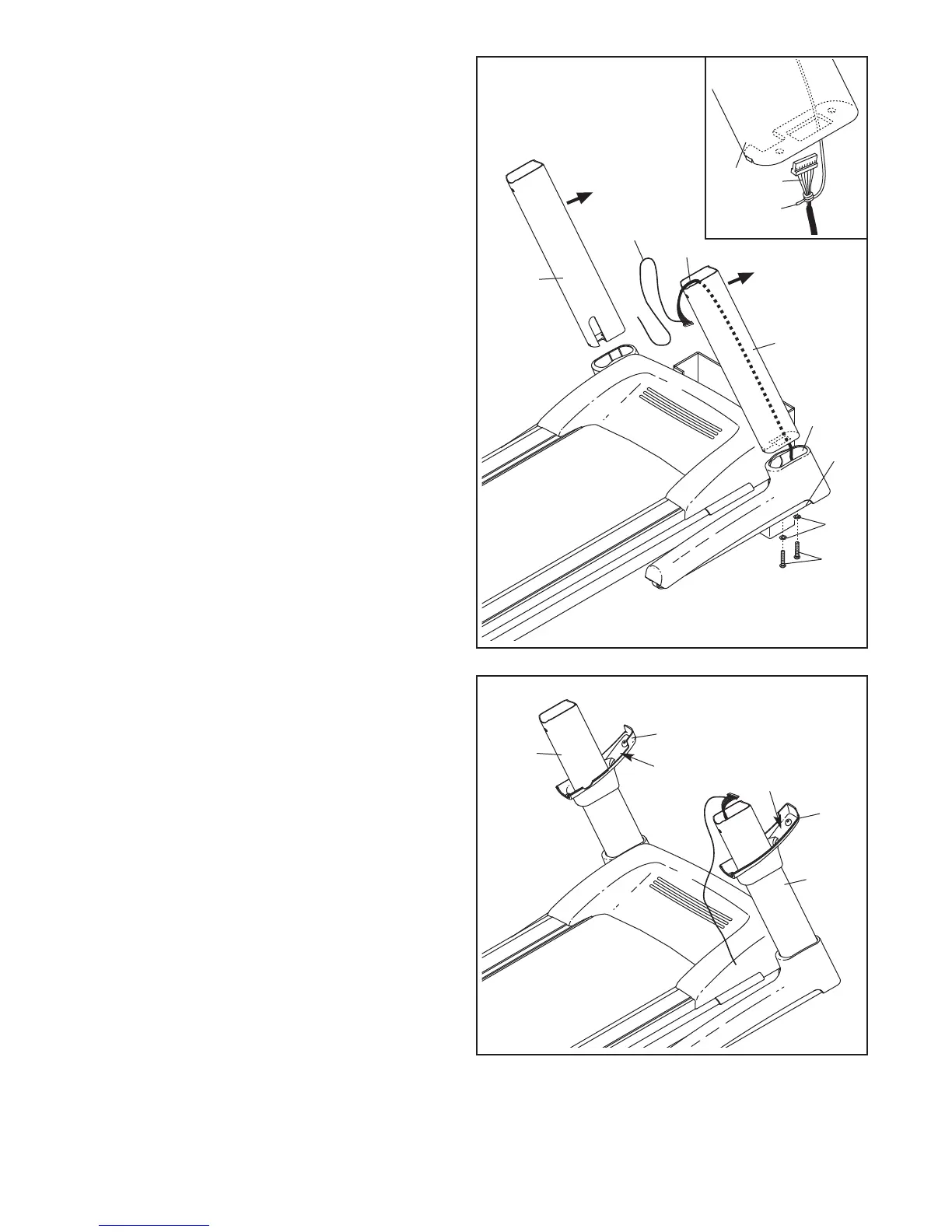

2. Identify the Left Upright (73) and the Right
Upright (74).
W
ith the help of a second person, hold the Right
Upright (74) near the Right Base Cover (77).
S
ee the inset drawing. Tie the long tie in the
Right Upright securely around the end of the
Wire Harness (75). Then, pull the other end of
the long tie up through the rectangular hole in
the bottom of the Right Upright until the Wire
Harness is routed completely through the Right
Upright.
Gently pull up on the Wire Harness (75) as you
set the Right Upright (74) on the Base (83) in-
side the Right Base Cover (77). Be careful not
to pinch the Wire Harness.
Partially attach the Right Upright (74) to the
Base (83) with two 3/8" x 3 3/4" Bolts (53) and
two 3/8" Star Washers (90). Do not fully tighten
the Bolts yet. Note: It may be necessary to tip
the tops of the Uprights forward slightly as you
thread the Bolts into the Uprights.
Attach the Left Upright (73) to the Base (83) with
two 3/8" x 3 3/4" Bolts and two 3/8" Star
Washers (not shown). Do not fully tighten the
Bolts yet.
With the help of a second person, lower the
treadmill off the cardboard stand.
83
75
L
ong
Tie
77
2
74
73
90
53
3. Identify the Right Upright Sleeve (96) and the
Left Upright Sleeve (95). The Upright Sleeves
are labeled. Slide the Right Upright Sleeve onto
the Right Upright (74) and the Left Upright
Sleeve onto the Left Upright (73).
95
“Right”
“Left”
96
3
74
73
75
74
Long Tie
To Next Page
