8

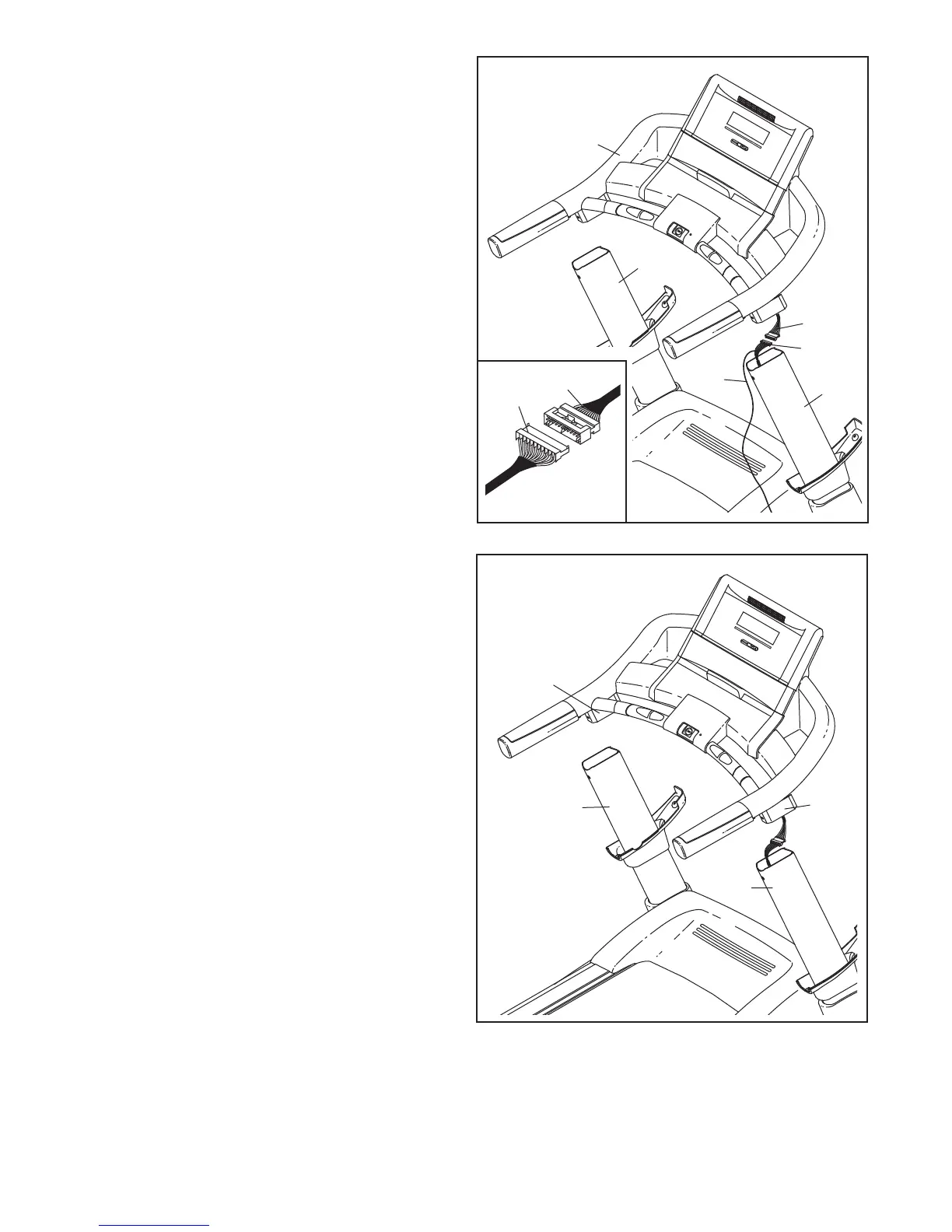

4. With the help of a second person, hold the con-
sole assembly near the Uprights (73, 74).
C
onnect the Wire Harness (75) to the Console
Wire Harness (71). See the inset drawing. The
c
onnectors should slide together easily and
snap into place. If they do not, turn one con-
nector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Remove the long tie
from the Wire Harness.
71
Console
Assembly
4
75
Long
Tie
74
5. Insert the brackets on the Handrails (99) into the
Uprights (73, 74). Make sure that no wires are
pinched.
73
5
74
99
75
73
99
71
To Next Page
