7. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 29). To protect the
floor or carpet from damage, place a mat under the treadmill.
7
5. Insert two 4 1/2” Bolts (104) with Star Washers (106)
into the right Upright (99) and the right Handrail (138).
Be careful not to pinch the wires. Next, lift the right
Handrail slightly and align the Bolts with the holes in the
Handrail. (Note: If necessary, twist the Handrail to align
the holes in the Handrail with the Bolts).Thread the
Bolts into the Handrail.
Do not tighten the Bolts yet.
Attach the left Handrail (not shown) in the same way.
Then, tighten all four 4 1/2” Bolts (104). Note: There
are no wires on the left side.
104
106
99

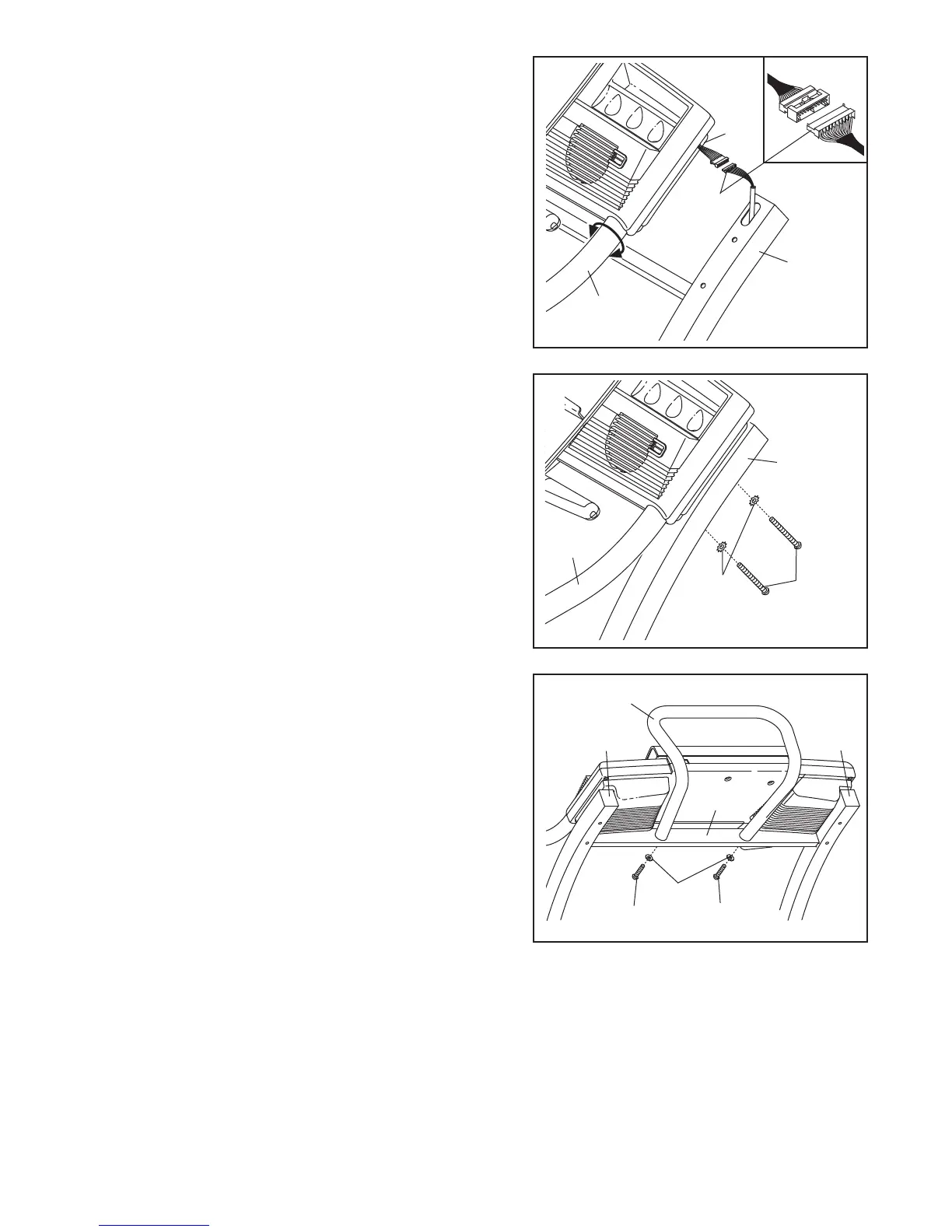

4. Insert a Handrail (138) into each side of the console as-
sembly. Note: It may be helpful to twist the Handrails as
you insert them.
Cut the tie securing the Upright Wire Harness (119). Have
a second person hold the console assembly near the
Uprights (99). Connect the Upright Wire Harness to the
wire harness extending from the Console Base (130).
The
connectors should slide together easily and snap into
place. If they do not, turn one connector and try again.
Insert the connectors and the Upright Wire Harness down
into the right Upright, and then set the console assembly
on the Uprights.
Be careful not to pinch the wires.
119
99
130
138
4
138
6. Attach the Upper Handrail (19) to the Uprights (99) with
two 3” Bolts (56) and two Handrail Washers (69) as
shown. Firmly tighten the Bolts.
Press the two Upright Endcaps (118) into the Uprights
(99) as shown.
6
56
69
19
99
118
118
56
5
To Next Page
