8

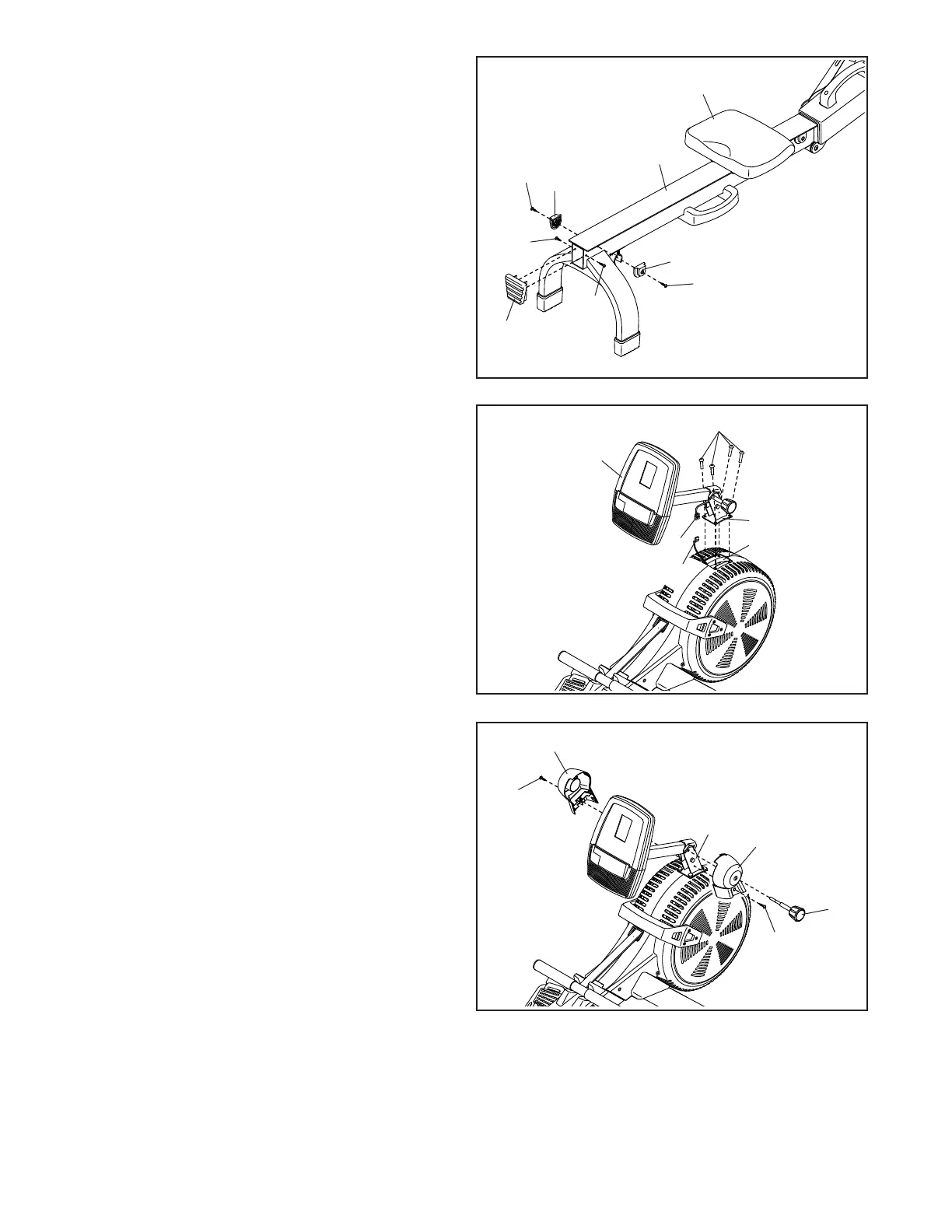

5. Slide the Seat (23) to the front of the Rail (2).
Next, attach a Stop (32) to each side of the Rail
(2) with an M4 x 19mm Screw (69).
Then, attach the Rail Cap (38) to the Rail (2)
with two M4 x 19mm Screws (69).
6. While a second person holds the Console (75)
and the Upright (77) near the Frame (1), connect
the Upright Wire (109) to the Frame Wire (84).
Insert the excess wire into the Frame.
Tip: Avoid pinching the wires. Attach
the Upright (77) to the Frame (1) with four
M8 x 35mm Screws (82); start all the Screws,
and then tighten them.
7. Loosen and remove the Knob (78) from the
Upright (77).
Identify the Right and Left Upright Covers
(80, 81), and orient them as shown.
Press the Right and Left Upright Covers
(80, 81) together around the Upright (77), and
attach them to the Upright with two M4 x 16mm
Screws (68).
Then, insert the Knob (78) into the Right Upright
Cover (80) and tighten it into the Upright (77).
2
5
6
7
38
69
69
32
32
23
69
82
77
81
80
77
68
68
78
1
109
75
69
Avoid
pinching
the wires
84
To Next Page
