Noritz CB199-DV - Installation Procedures; Securing the Combi Boiler to the Wall

13

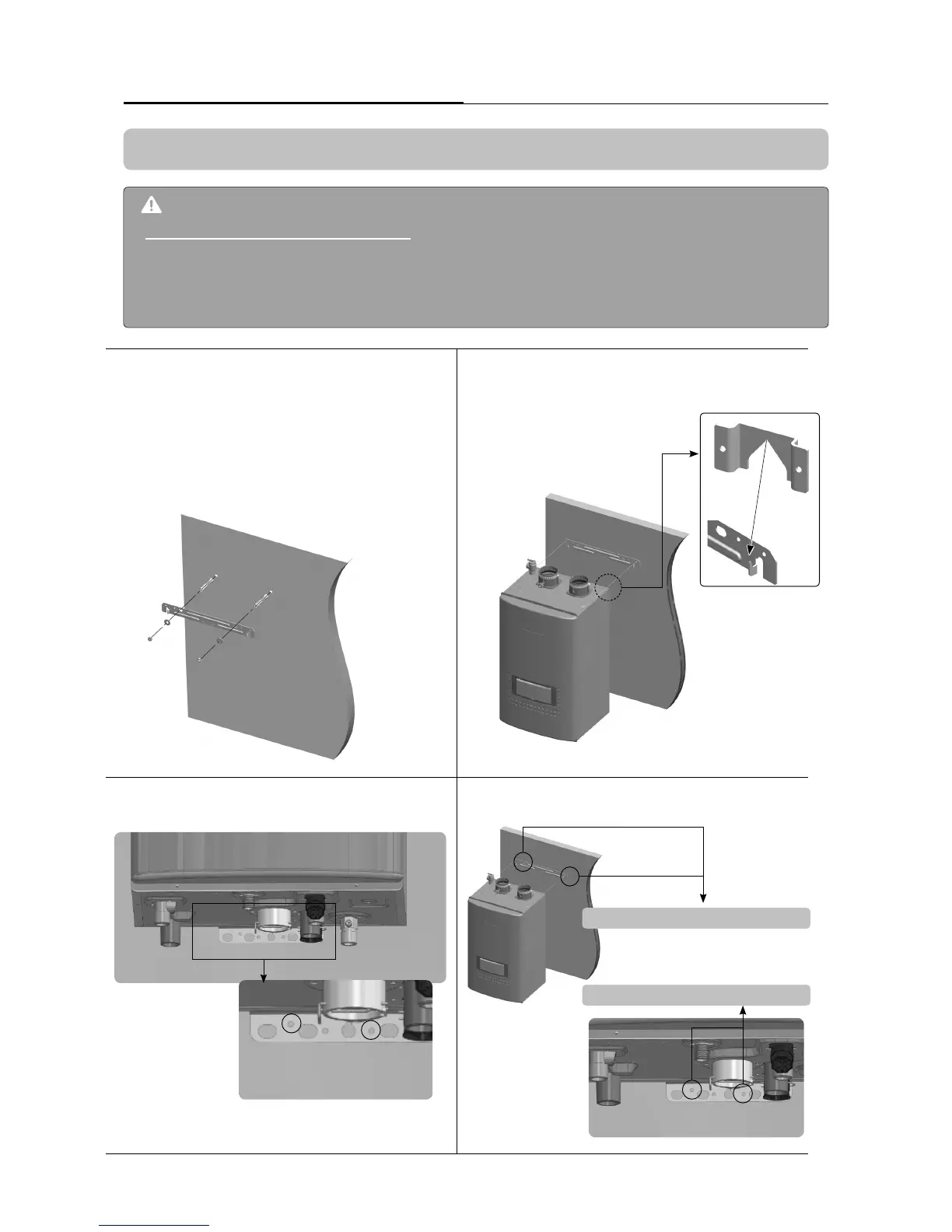

1.Use the wall bracket to mark two locations where the anchor
bolts will be inserted.(Make sure that the wall bracket is level)
2. Drill two holes with a 15/32"(12mm) size bit and insert the two
anchor bolts into the holes with the threaded end out.
3. Place the wall bracket on the two anchor bolts.
4. Place washers and nuts on each anchor bolt and tighten.
Make sure that it is leveled and it can support the weight of
the Combi Boiler.
5. Lift up the Combi Boiler, rest the unit on the hooks provided
on the wall bracket that is already mounted on the wall.
6. Locate the lower mounting bracket on the bottom of the
Combi Boiler. The two screws and dry wall anchors will be
used to securer the bottom of the unit to the wall.
9. Place the Combi Boiler back on the wall. (same as step 5)
10. Screw in the two screws into the dry wall anchors.
Securing to the wall
Chapter4.–Installation
4-1. Securing to the wall
WARNING
CLEARANCES FOR SERVICE ACCESS
The Combi Boiler must be installed on a wall that can bear its weight.
If you try to install the Combi Boiler on a wall which cannot support its weight, please reconsider.
The Combi Boiler can be installed on any suitable internal wall (suitable sound proong may be required
when installing onto a stud partition wall).
Afx the screws into dry wall anchors.
Position the bracket securely to the wall.
7. Mark two holes. Then remove the Combi Boiler from the wall.
8. Drill two holes with a 17/64"(7mm) size bit.
Then insert the two dry wall anchors into the wall.
