8
6.

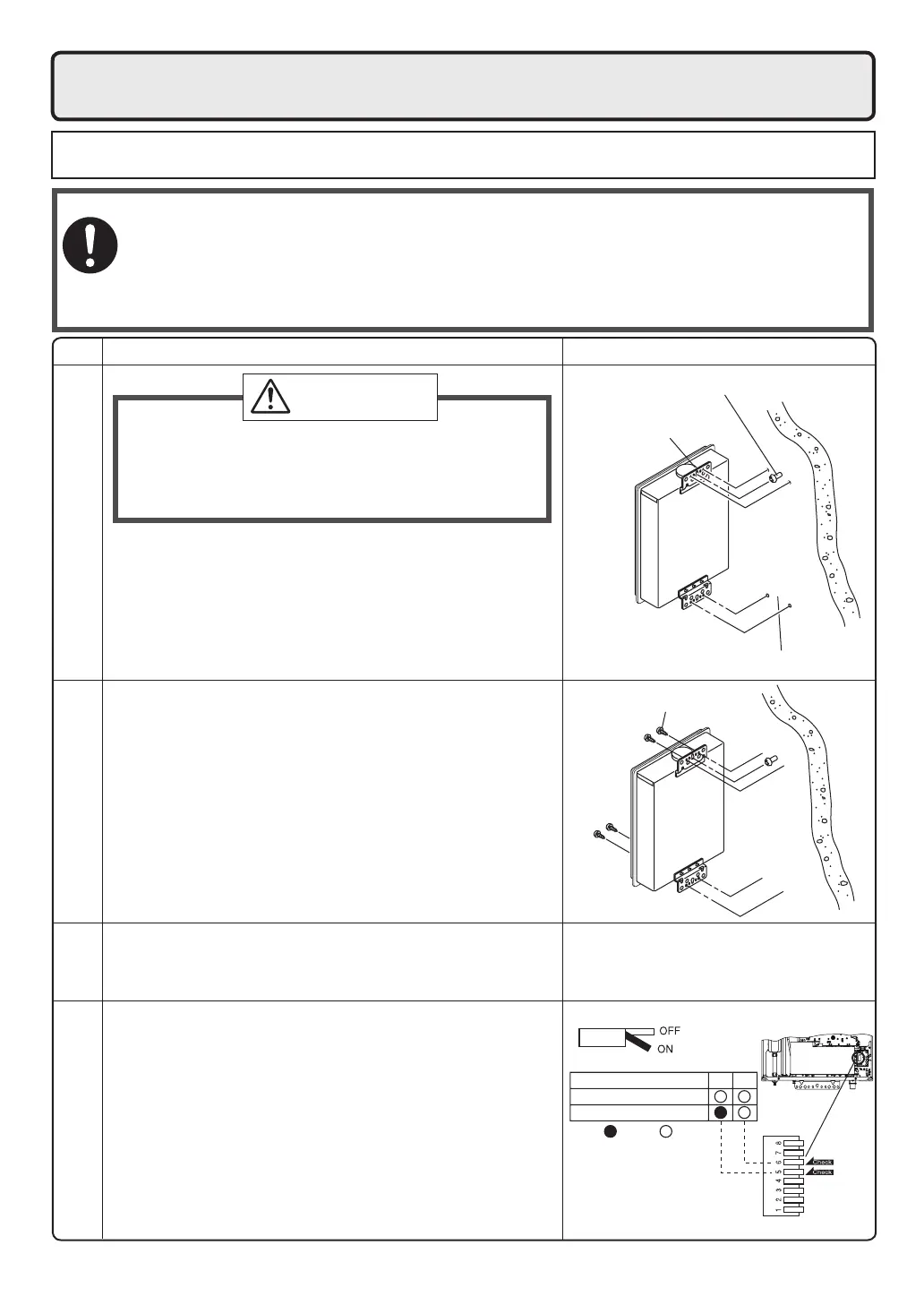

Installation
Securing to the wall
IllustrationCheck
4. Drill holes for the remaining four screws.
5. Hang the unit again by the rst screw, and then
insert and tighten the remaining four screws.
6. Take waterproong measures so that water does
not enter the building from screws mounting the
device.
• Make sure the unit is installed securely so that it will
not fall or move due to vibrations or earthquakes.
1. Drill a single screw hole, making sure to hit a stud.
2. Insert and tighten the screw and hang the unit by
the upper wall mounting bracket.
3. Determine the positions for the remaining four screws
(two for the top bracket and two for the bottom), and
remove the unit.
• The weight of the device will be applied to the wall. If the strength of the wall is not sufcient,
reinforcement must be done to prevent the transfer of vibration.
• Do not drop or apply unnecessary force to the device when installing. Internal parts may
be damaged and may become highly dangerous.
• Install the unit on a vertical wall and ensure that it is level.
• Do not install the water heater when the inside/outside temperature is below 40°F (5°C).
Locating Screw Holes
Mounting
Structure
• When installing with bare hands, take caution to
not inict injury.
• Be careful not to hit electrical wiring, gas, or water
piping while drilling holes.
Item
CAUTION
Be sure to do
Mounting Bracket
(upper)
Location of Screw Hole
Locating Screw Holes
Installations at Elevations
Above 2,000 ft.
• Adjust the DIP switches as illustrated in the table to
the right if this water heater is installed at an altitude
of 2000 ft. (610m) or higher.
• Disconnect power to the water heater before changing
the DIP switches. Failure to perform this step will result
in a "733" code displayed on the Display Window and
a cease in operation. If this occurs, disconnect, then
reconnect power to the water heater to reset the system.
Anchoring Screw
▲The illustration is an example. Please check with the actual water heater about the position of piping, and form.
* Do not change any other DIP switches.
* High elevation adjustment.
65
2,001 - 3,500 ft (611 - 1,050m)
0 - 2,000 ft (0 - 610m)
ON=OFF=
To Next Page
