Applications
LogiTemp® Plus systems are designed to control SciPak™ refrigeration Systems for freezer and cooler applications.
Each system contains a condensing unit, evaporator(s) with LogiTemp Plus control board(s), electric expansion
valve(s), pressure transducers, temperature sensors, and reverse cycle valve.
Figure 1 below shows where the LogiTemp Plus controller is mounted on the system.

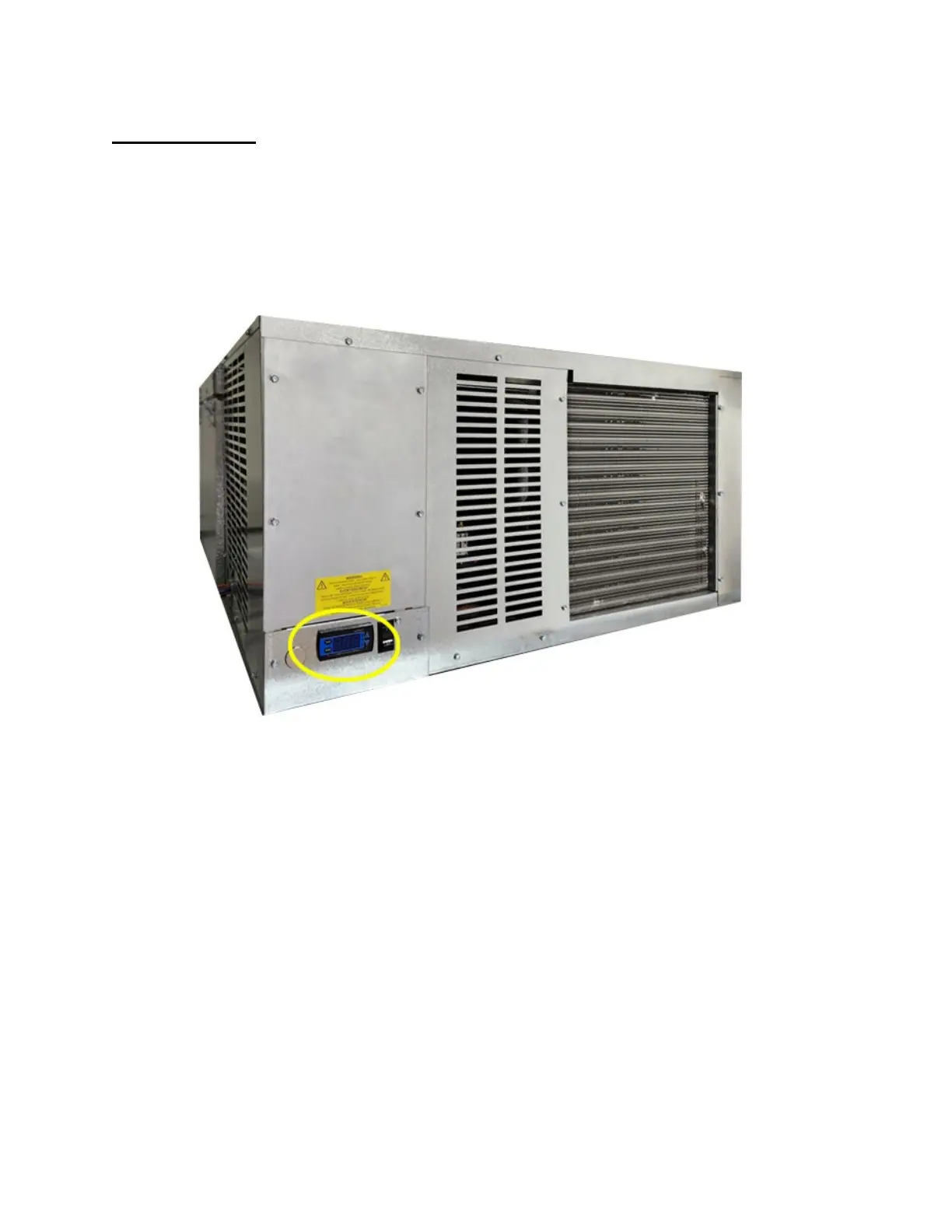

Figure 1: Location of the LogiTemp controller interface
