2. Multi-fuel burners NORTEC WB description and features
NORTEC WB burners are designed in 2 frames of typical sizes (see section 4).
Models WB60/120 (pic. 1) have one line to connect compressed air and one pressure regulator.
Models WB 230/270 (pic. 2) have two lines to connect compressed air and two pressure
regulators what follows the principle of two-stages start.

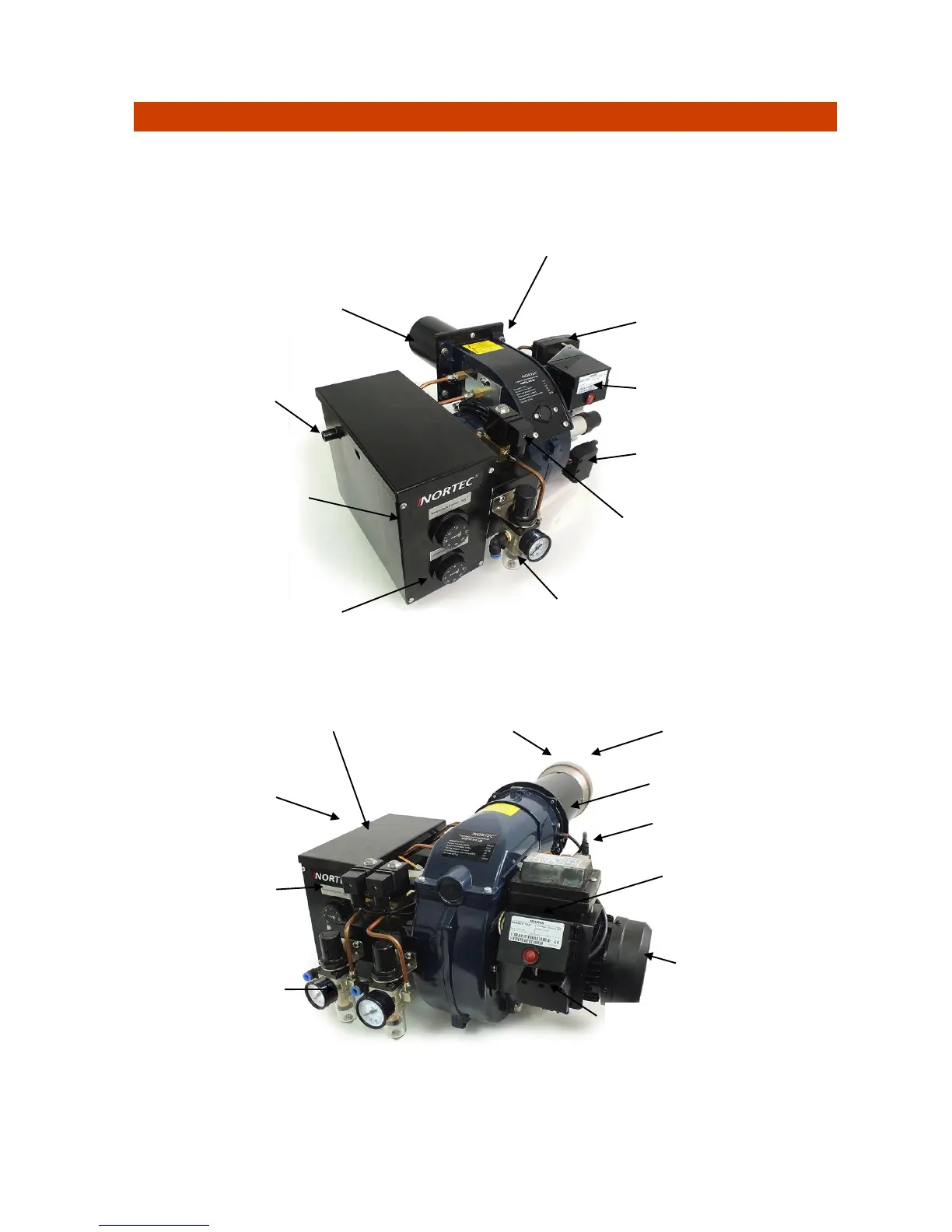

Pic. 1 Burners NORTEC WB60 and WB 120
Pic. 2 Burners NORTEC WB230 and WB270
Preliminary fuel
heater
Air regulator with a moisture
separating filter and manometer
Control chamber with an
indicator of emergency
shutdown
Electric socket
Electromagnetic
valve
Ignition transformer
Photocell
Fuel heating
thermostat
Nozzle for
adding fuel
Combustion tube
Fuel heating
thermostats
Preliminary fuel heater
Air regulators with a
moisture separating
filter and manometer
Electromagnetic
valves
Electric socket
Control chamber with an
indicator of emergency
shutdown
Ignition transformer
Photocell
Combustion tube
Diffuser
Fan electric engine
