Nortek B-HW-2.2(07)-A3AK - Product Introduction; Outline of the Unit and Main Parts; Rated Operating Condition

Multi Variable Heat Pump WALL Mounted Type Indoor Unit
3
2 Product Introduction

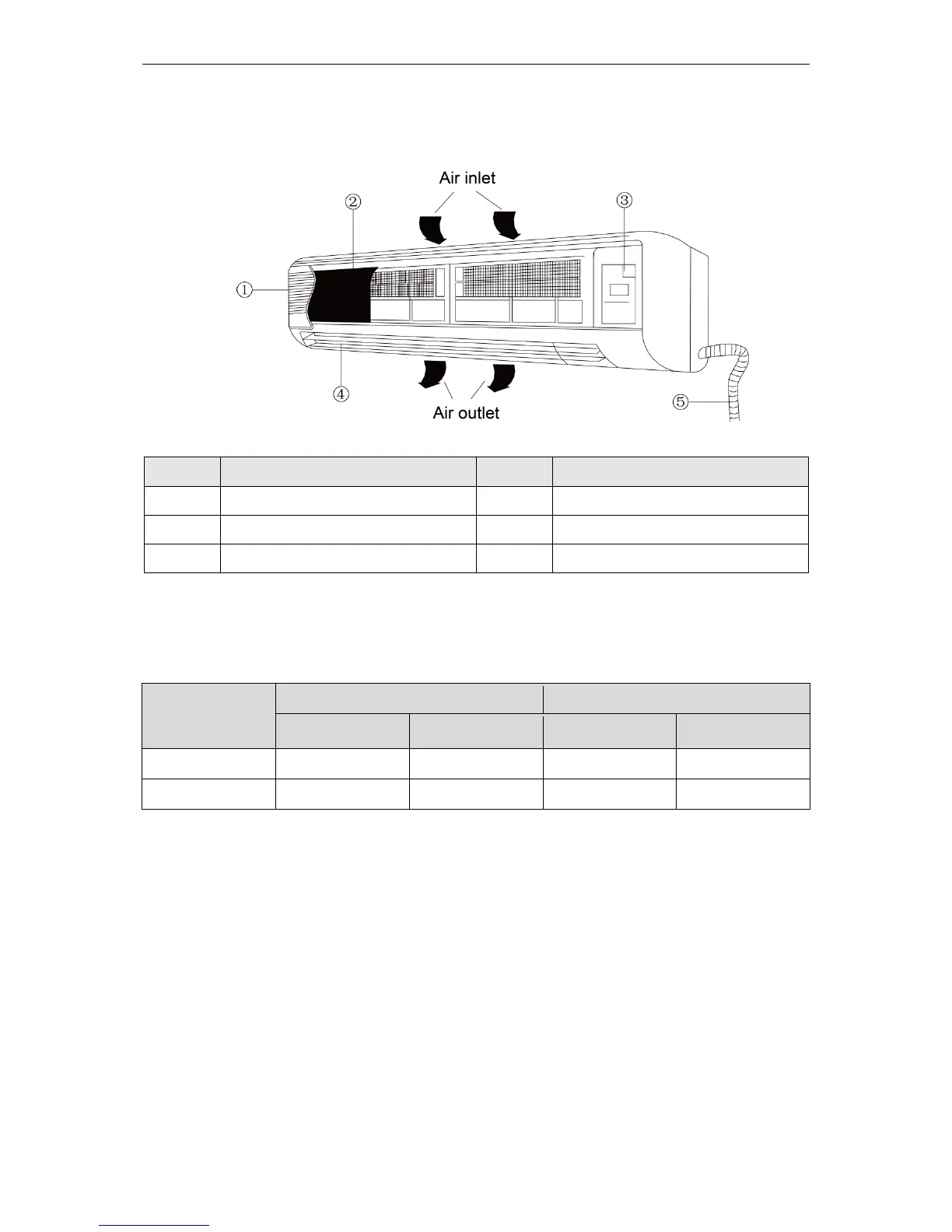

2.1 Outline of the Unit and Main Parts
NOTICE! The appearances will be different for different models of air conditioners.
No.
Part Name
No.
Part Name
①
Surface panel
④
Guide louver
②
Filter
⑤
Drain pipe
③
Wiring cover
2.2 Rated Operating Condition
Item
Indoor Side Condition
Outdoor Side Condition
Dry Bulb Temp°C
(°F)
Wet Bulb Temp °C
(°F)
Dry Bulb Temp °C
(°F)
Wet Bulb Temp °C
(°F)
Rated Cooling
27(80.6)
19(66.2)
35(95)
24(75.2)
Rated Heating
20(68.0)
15(59.0)
7(44.6)
6(42.8)
Indoor Unit Working Temperature Range:16°C ~32°C(60.8 °F ~89.6 °F) .
