Nortek B-HW-2.2(07)-A3AK User Manual

Multi Variable Heat Pump WALL Mounted Type Indoor Unit
6
4 Installation Instructions

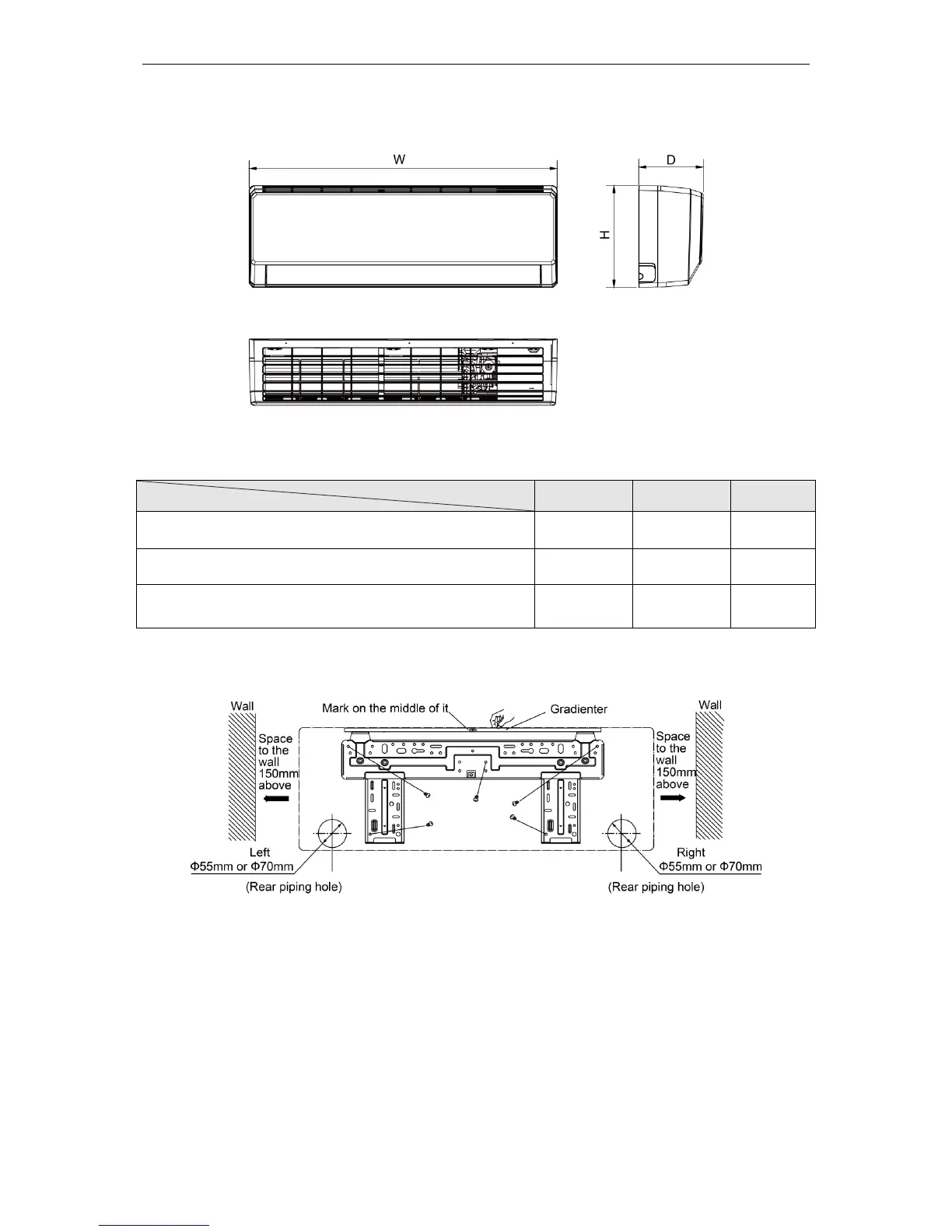

4.1 Installation of Indoor Unit
Fig 4.1
Below are dimensions of W, H, and D.:
Unit:mm/inch
Item
Model
W
H
D
B-HW-2.2(07)-A3AK
B-HW-2.8(09)-A3AK
843
(33-3/16)
275
(10-13/16)
180
(7-1/16)
B-HW-3.6(12)-A3AK
B-HW-5.0(18)-A3AK
940
(37)
298
(11-3/4)
200
(7-7/8)
B-HW-7.1(24)-A3AK
1008
(39-11/16)
319
(12-9/16)
221
(8-11/16)
4.2 The installation of the rear panel
Fig 4.2
(1) Use a level to hang the rear panel. Since the drainage pipe is on the left side, it is necessary
to adjust the rear panel to make its left side a little bit lower.
(2)
Attach the rear panel on the wall with bolts.
(3)
After installing the rear panel, check to see that it is mounted securely. The panel should
support 60kg/130 lbs., and the weight shared by every bolt should be evenly distributed.
(4)
The diameter showed in Fig. 4.2 is 65mm (2-1/2 in.).
4.3 Debugging
NOTICE! Setting main indoor unit must be done after completing installation of. Otherwise,
