North Star 5044310 - Page 42

42
Assembly Instructions

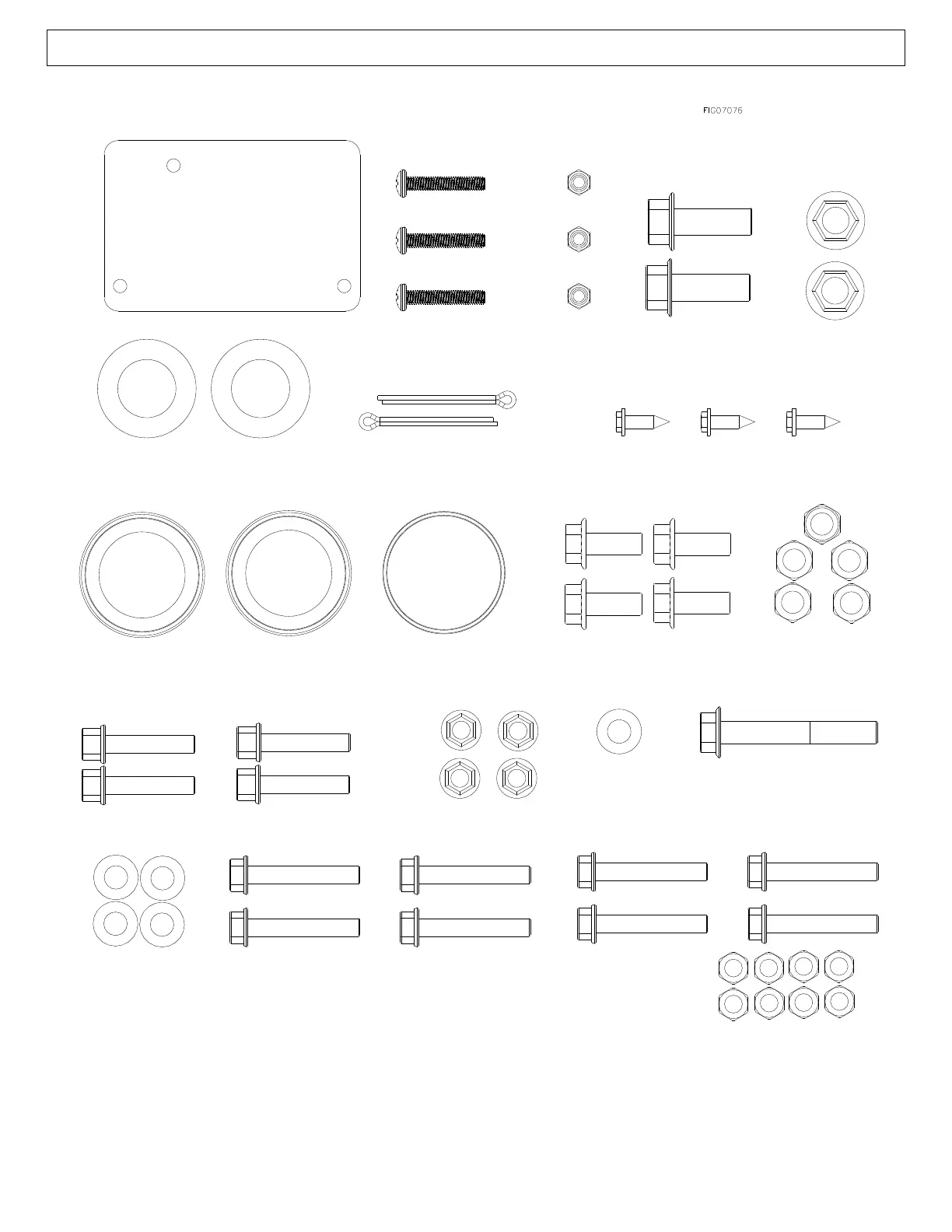

Parts Bag:
Part# 791187
Valve Plate w/ Label
Qty 1
Wheel Assembly
Part# 778844
Axle Stub Washer
Qty 2
Wheel Assembly
Part# 778674
Cotter Pin, 1/8” x 2”
Qty 2
Wheel Assembly
Part# 124A
Dust Cap
Qty 2
Horizontal Latch to Beam
Part# 82551
M12-1.75 x 35 HHSF GR5Z
Qty 2
Manual Tube
Part# 82529
M6 x 20mm Self Tapping Screw
Qty 3
Horizontal Latch to Beam
Part# 82273
M12-1.75 Ser Flange Nut
Qty 2
Wheel Assembly
Part# 780599
Dust Cap Tool
Qty 1
Guard to Beam
Part# 82565
M8-1.25 x 50mm HHCS GR5
Qty 8
Valve Plate
Part# 82562
M6-1.0 x 35mm PHCS, Zinc
Qty 3
Valve Plate
Part# 82563
M6-1.0 Nylon Insert Locknut
Qty 3
Guard to Beam
Part# 777495
M8-1.25 Nyloc Nut
Qty 8
Jack to Tow Bar, Qty 4
Out Rigger to Tank, Qty 1
Part# 82270
M10-1.5 Nylon Insert Nut
Jack to Tow Bar
Part# 82262
M10-1.5 x 25 HHSF
Qty 4
Out Rigger to Tank
Part# 82201
M10 Flat Washer
Qty 1
Out Rigger to Tank
Part# 82574
M10-1.5 x 70 HHSF Bolt
Qty 1
Log Cradles to Beam
Part# 82545
M8-1.25 x 30 HHSF GR5Z Bolt
Qty 4
Log Cradles to Beam
Part# 82281
M8-1.25 Ser Flange Nut
Qty 4
Guard to Beam
Part# 777496
M8 Flat Washer
Qty 8
