IP4BIR100 IP Bullet Camera · Quick Start Guide
13
13

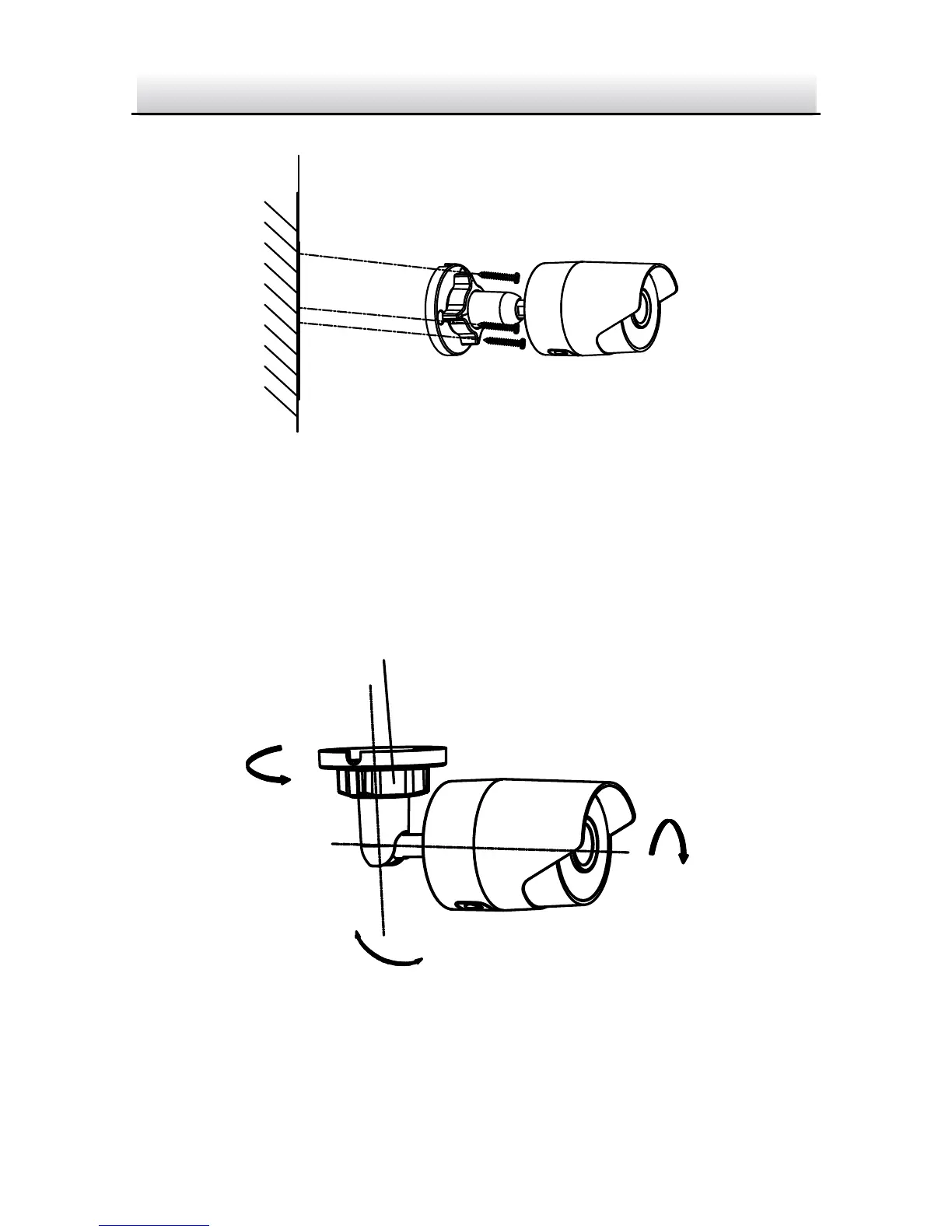

Secure the Camera to the Ceiling Figure 2-4
4. Connect the cables and power on the camera to view live view
image.
5. Adjust the surveillance angle.
Tilt: 0° to 90°
Adjusting Nut
Pan:
0° to 360°
Rotate:
0° to 360°
3-axis Adjustment Figure 2-5
1). Loosen the adjusting nut.
2). Adjust the pan direction [0° to 360°].
