NorthStar EXPLORER D210 - Specifications

Northstar Explorer D210 Installation and Operation Manual10
• Size
Mount: 51 mm (2”) diameter hole
Depth behind face plate: 95 mm (3.75”) max.
Display: 3-character LCD
• Color
Black bezel.
• Backlighting
Red colored diffused lighting for display.
• Water Integrity
Front will withstand direct water spray.
• Depth/Alarm Range
2.0-600 feet
0.6-184 metres
0.3-100 fathoms
(to 9.9 in tenths)
• Sensitivity
Better than 0.05 mV RMS at 200 feet.
• Transmit Power
36 W RMS nominal at 13.6 V DC.
• Transducer
200 kHz 1900 pF/600 W parallel.
• Display Updating
1 second.
• Operating Voltage
9.5 V DC to 16.5 V DC.
• Operating Temperature
0°C to 50°C (32°F to 122°F).
• Current Drain
150 mA max, including internal buzzer.
• Data Input/Output
Single wire data output/Input.
Dual station mode outputs NMEA sentences.
Dual station accepts NMEA sentences. In the
linked mode a dual station pair also transfer
function settings eg. Alarm on/off.
• NMEA Output
DPT.
• NMEA Input
DPT and DBT.
• External Buzzer Output
12 V DC Buzzer, 100 mA max.
• RF Interference
<6 dB quieting on any marine radio channel
(with 3 dB gain antenna) within one meter
of the instrument. Complies with CE EMC
standards EN50081-1 and EN50082-1.
Appendix A - Specifications

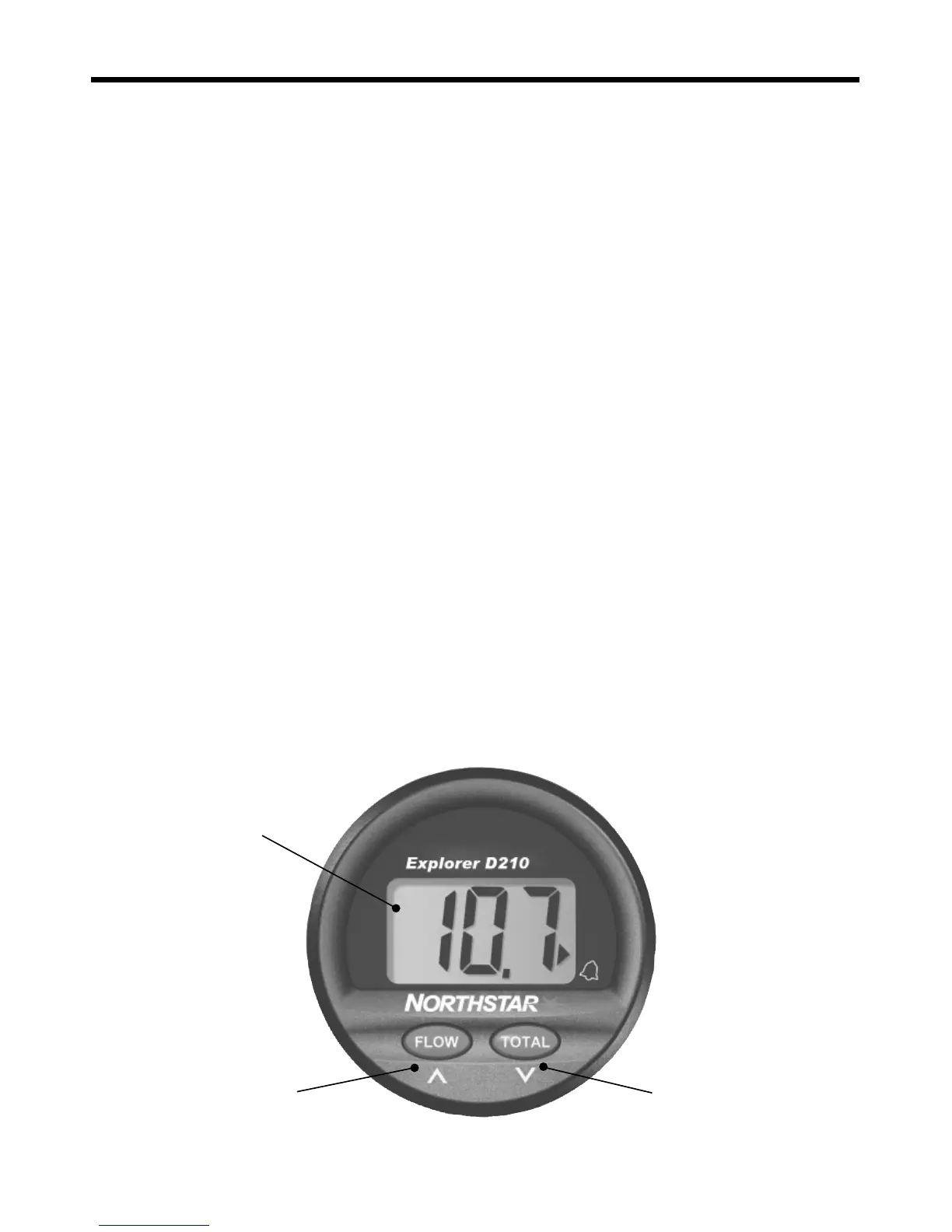

Display is backlit for
Night operation
Alarm On/
Change Value up
Alarm Off/
Change Value
Down
