Northstar Explorer D210 Installation and Operation Manual 9

• Red (+) Terminal

• Black (-) Terminal

• Orange External Buzzer

Use for optional external buzzer (use red (+)

terminal to complete circuit). If unused then

tape to avoid shorting.

• Brown Data input/output

Your Explorer D210 can be used as a repeater

for another DPT or DBT NEMA depth sounder.

If unused then tape to avoid shorting.

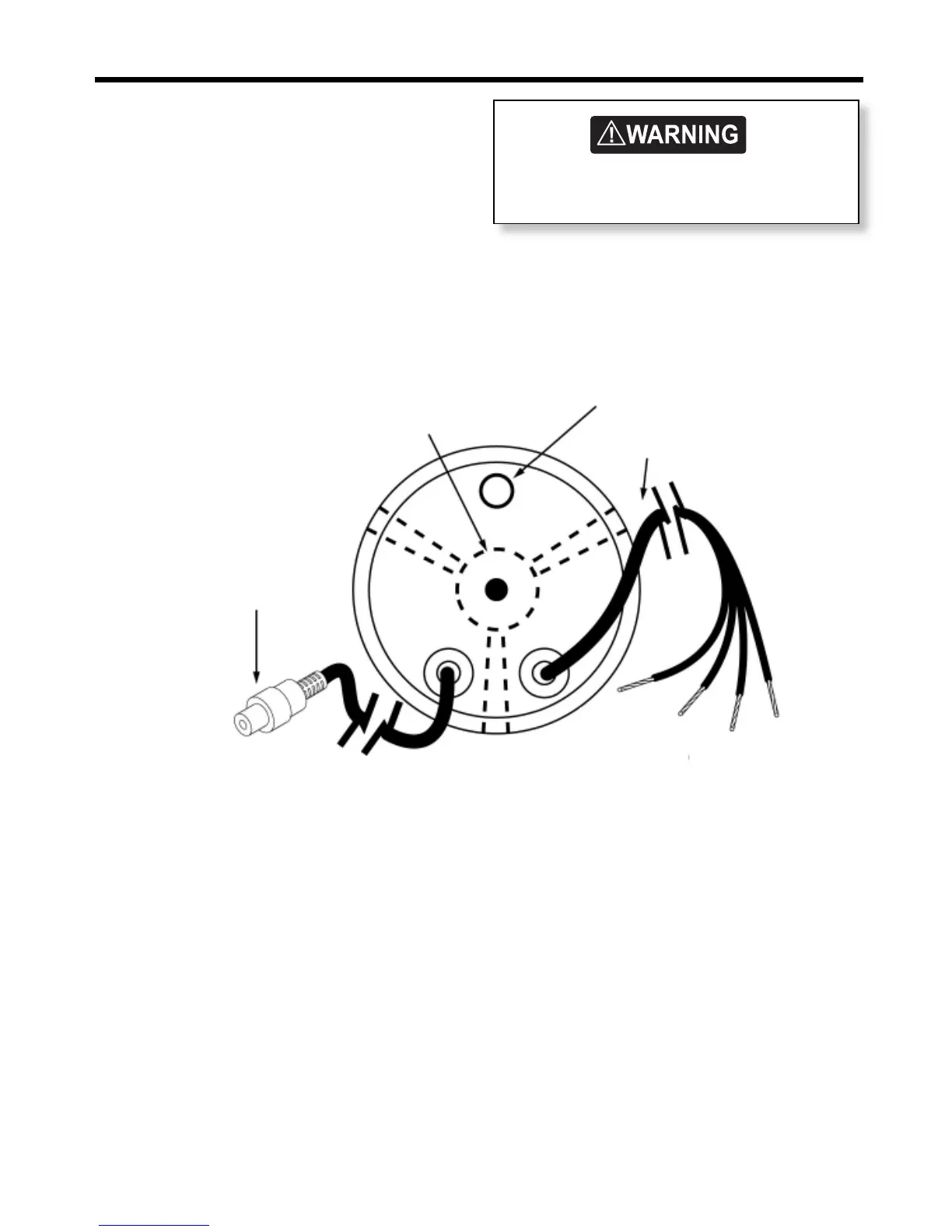

Bracket

Buzzer

RCA Jack Connector

600 mm (24 inch)

Power Cord

Black (-)

Red (+)

Orange

Brown

6 Wiring

If unsure about wiring contact your

nearest Northstar dealer.
