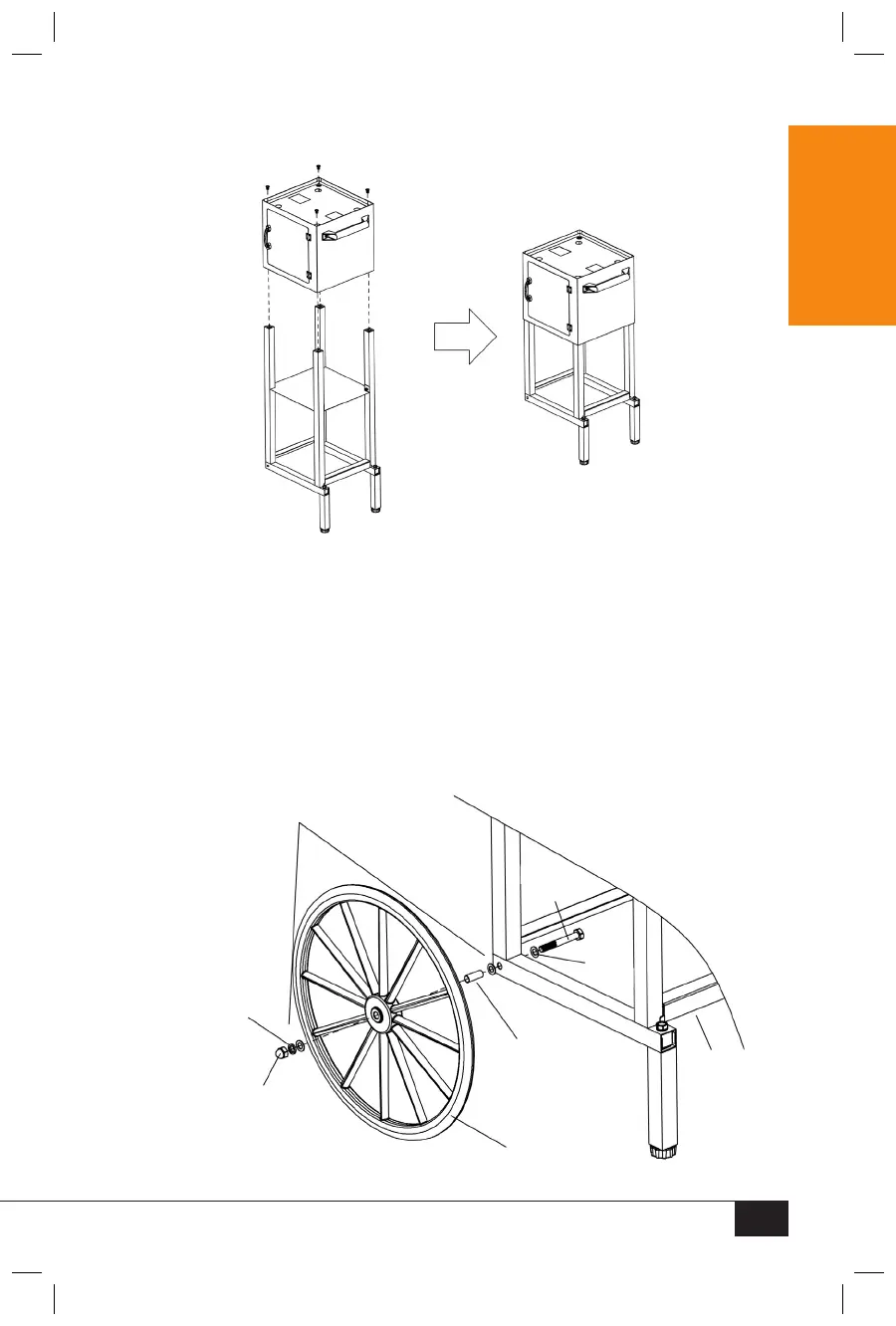

5. Assemble Base Support (F) into the bottom of the Storage Compartment (B) and secure with
four #4 Screws.
Assembly of Wheels
1. Place #7 Flat Washer onto #3 Bolt and insert into pre-
drilled hole on inside of Base Support (F).
2. Put #7 Flat Washer and #13 Sleeve Barrel on end of inserted #3 Bolt.
3. Attach the Wheel (E) to the #3 Bolt. Place #7 Flat Washer and #8 Locking Washer
on Wheel (E). Use the end of Wrench (J) with small notch to hold the #3 Bolt in
place. While holding #3 Bolt in place, tighten the #10 Nut Cap with Wrench (J).
4. Repeat on other side, following the directions above.
(#10)
Nut
Cap
(#8)
Locking
Washer
(#7)
Flat
Washer
(#7)
Flat
Washer
(#3)
Bolt
(#13)
Sleeve
Barrel
(F)
Base
Support
(E)
Wheel
