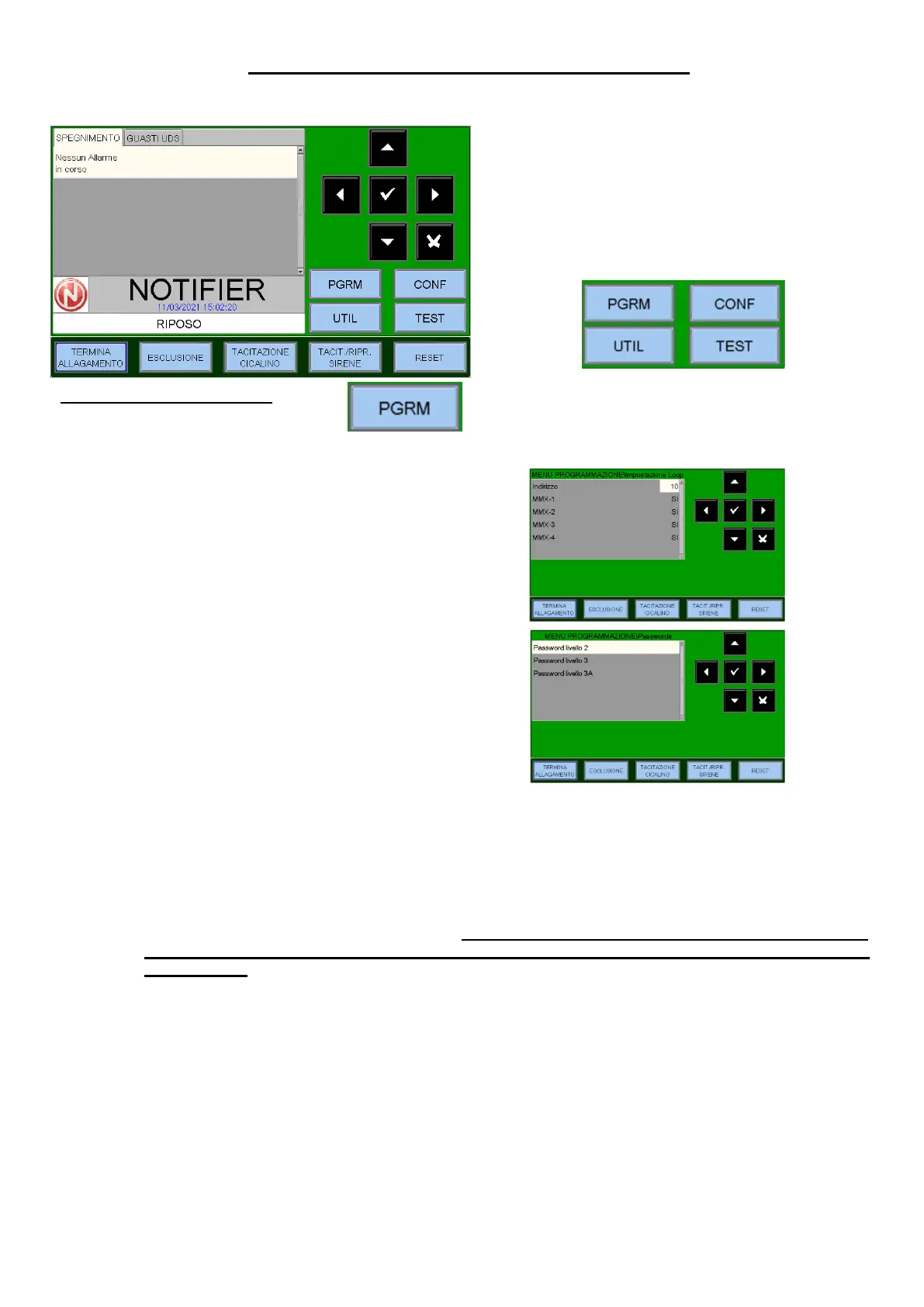

5 - PROGRAMMING AND TESTING UDS-4N
Programming is carried out via the following menus:
– PGRM: Programming
– CONF: Configuration
– UTIL: Utilities
– TEST: Test
Programming menu (PGRM)
Access level 3A (44444)
The following menus and items appear when the "Programming" menu is accessed:
• Loop setting
◦ Address 00, [00, 10, ..., 150], step 10;
◦ MMX-1 NO, [NO | YES];
◦ MMX-2 NO, [NO | YES];
◦ MMX-3 NO, [NO | YES];
◦ MMX-4 NO, [NO | YES];
• Password
◦ Password level 2 (default 22222)
◦ Password level 3 (default 33333)
◦ Level 3A password (default 44444)
5.1 - PROGRAMMING MENU \ Loop setting
◦ Address 00, [00, 10, ..., 150], step 10;
the value set determines the programming of the starting address of the incorporated modules, in the
event that the UDS is connected to analogue control units; addresses from 10 to 150 can be assigned in
increments of 10. Values from 10 to 90 are associated with the CLIP or ADV protocol, while values from
100 to 150 are used only by the ADV protocol. The choice of the protocol used is always made by the
fire panel, with the constraint described above, i.e. that values from 100 to 150 are reserved for the
ADV protocol.
◦ MMX-1, ..., 4 NO, [NO | YES];
Enabling/disabling of individual modules 1 to 4 for fault reporting to the fire alarm control panel.
N.B.: The use of these parameters is only possible by selecting an address from 10 to 90 in the
UDS and selecting the CLIP protocol in the fire alarm control panel.
