Nova TITAN User Manual

SuperNova2 – Reassembly

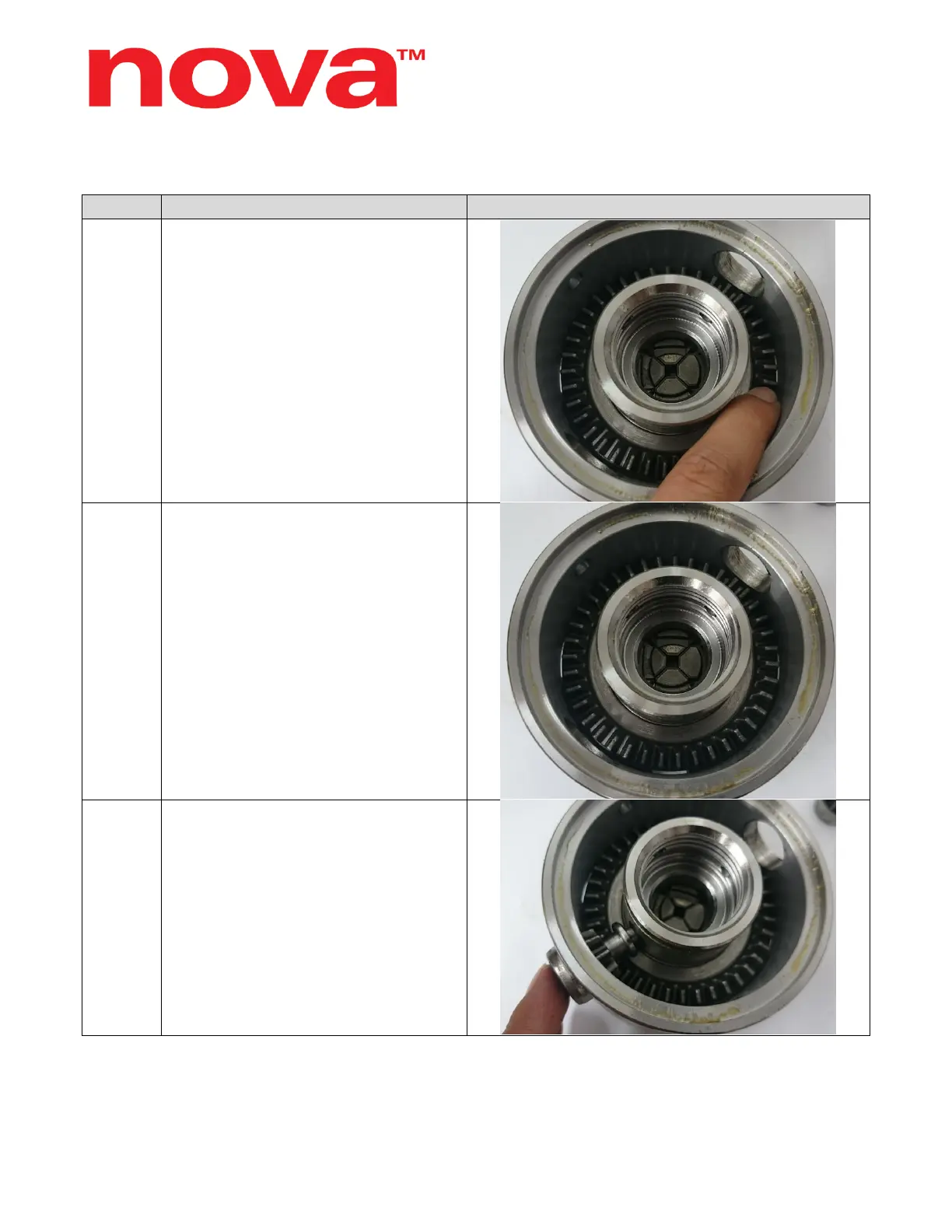

STEPS DESCRIPTION IMAGE
4.
Slide the scroll ring back into the
chuck body. Once in place, rotate the
scroll ring back and forth until it
engages with the jaw slides.
You should feel the scroll rings
engage as it drops into place,
exposing the slot where the snap ring
will fit.
NOTE: Make sure that the jaw slides
do not move before sliding the scroll
ring in.
5.
Apply a generous amount of lubricant
on the geared side of the scroll ring.
6.
Insert pinion gears back into the
chuck body as shown in the image.
Continues to next page…
