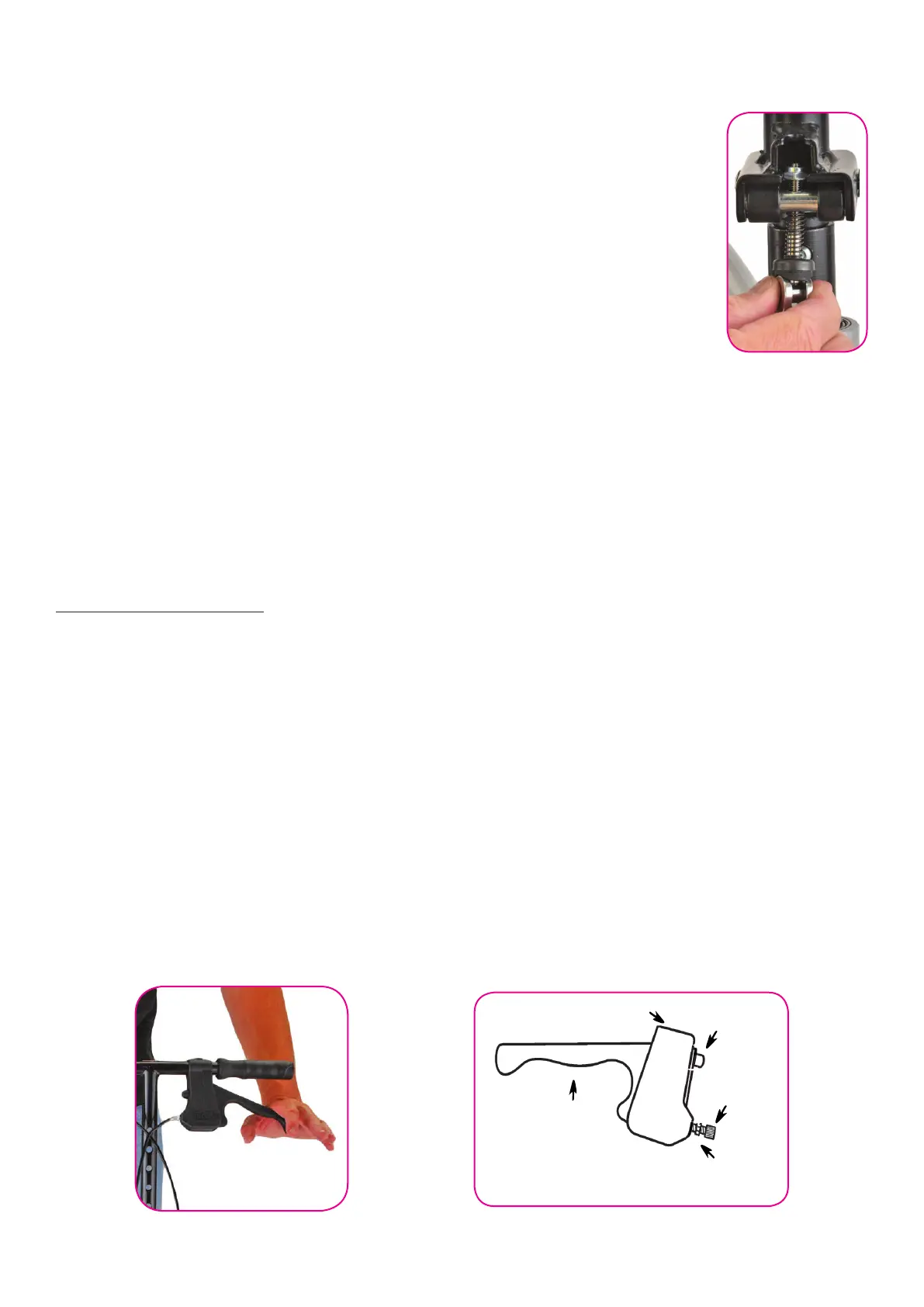

Steering Post Lever Adjustment
The lever located at the base of the steering column should secure the
steering post tightly to the frame so that there is no play or looseness.
The following steps (if necessary) will allow you to adjust the tightness
of the lever if you nd that it is either too hard to push down or too
loose to hold the post securely.
1 Pull the lever arm up to release the clamp, and place the lever
in the downward position.
2 Push upward on the lever until the nut is between the two
sides of the steering post (see Figure 10).
3 Turn counterclockwise to loosen the tension on the lever or
turn clockwise to tighten the tension on the lever.
Brake Adjustment Instructions
To lock wheels - push the brake handle downward until it clicks into the locked position
(see Figure 11).
Brake Adjustments
If you nd it difcult to squeeze/lock the brake handle or that the brake shoe is not
engaging the wheel then you may need to adjust the brake.
1 To Release Tension (make it easier to squeeze or lock): Be sure the brake is
in the unlocked position. Turn the brake adjustment screw counter-clockwise
until the desired tension is achieved. Test after each 1/2 turn. The brake should
lock the wheel when in the locked position. Screw the locking nut against the
brake casing to secure your desired setting (see Figure 12).
2 To Increase Tension (make the brake engage sooner): Turn the adjustment
screw clockwise until the desired tension is achieved. Test after each 1/2
turn. The brake should lock the wheel when in the locked position. Screw
the locking nut against the brake casing to secure your desired setting (see
Figure 12).
Cable End
Cap
Tension
Adjustment
Screw
Tension
Adjustment
Screw Locking
Nu t
Mounting
Screw
Handle
Brake
Housing
Figure 12
Figure 11
Figure 10
