5

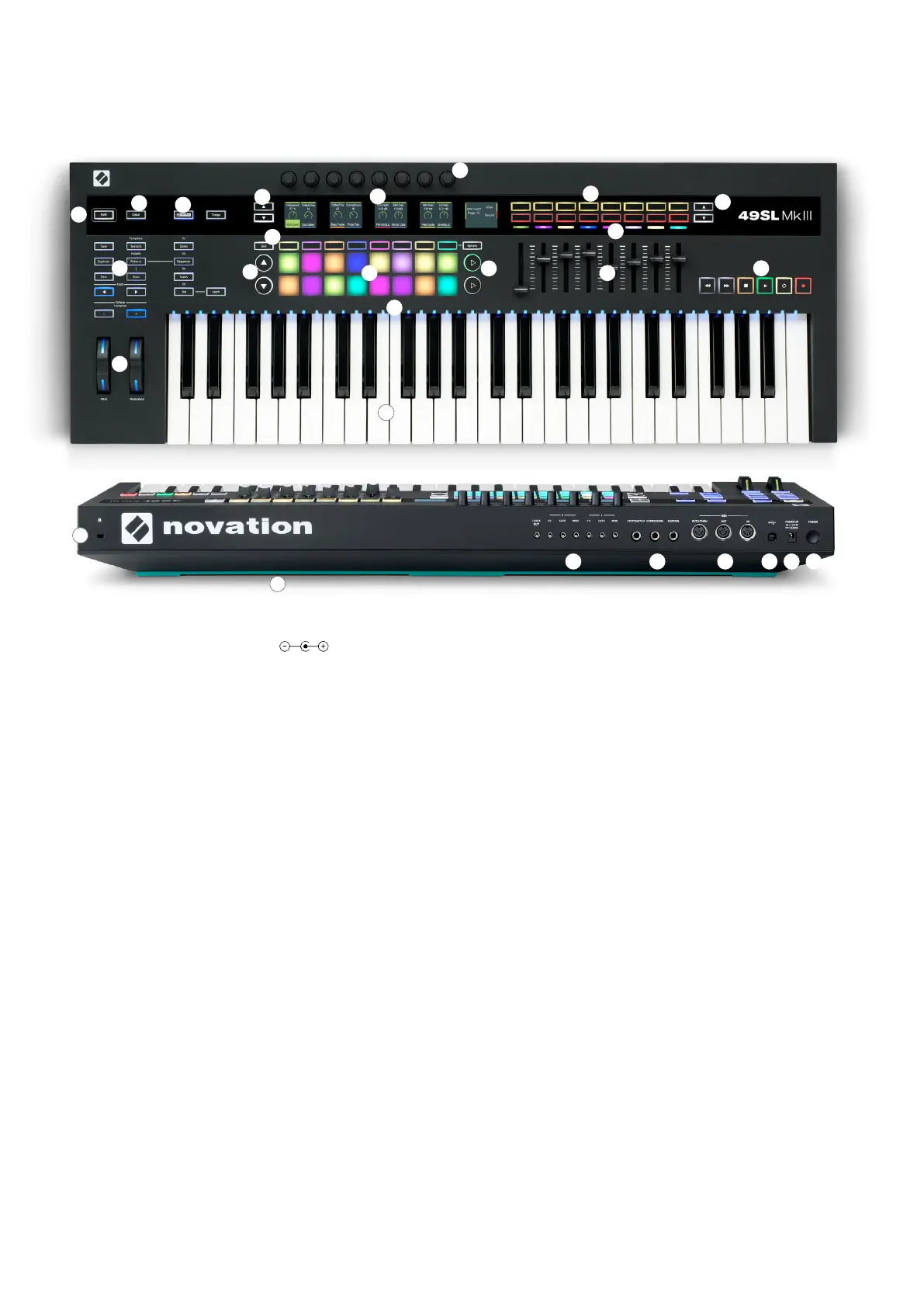

HARDWARE OVERVIEW
The SL MkIII 49- and 61-note versions have the same front
panel controls and rear panel connections.
123456
9
10
11
12
13
14
16
15
18
17
20
21
22
2324
25
26
27
19
8
7
1. Power On/Off button
2. DC power jack: 12V DC, 1A,
power supply
3. USB Type B socket
4. Three DIN sockets (5-pin) for MIDI In | Out | Out2/Thru
5. Two 1/4” TS or TRS jacks with silver metal rings for
Pedal one(Sustain) and Pedal two (Expression), and
one 1/4” jack for Pedal three (Footswitch)
6. Seven 3.5mm TS jacks for Clock Out, CV1, Gate1,
Mod1, CV2, Gate2 & Mod2 outputs
7. Kensington Security Slot
8. Teal silicone strip: the ’feet’ of the SL MkIII
9. Shift button
10. Global Settings button
11. InControl, Zones, Sequencer, Scales, Arp, Tempo and
Latch buttons
12. Up/down buttons to change pages of Sessions 1-4
13. Grid button, eight soft buttons, and Options button
14. Up/down page buttons
15. 1x2 velocity-sensitive pads
16. Eight continuous rotary knobs
17. Five LCD screens, collectively known as ‘the screens’
18. Right arrow buttons
19. 8x2 soft button area
20. RGB LEDs
21. Rectangular Up/down arrow buttons
22. Eight faders
23. The Transport
24. Save, Duplicate, Clear, Sessions, Patterns, Steps, Track
Left, Track Right, Octave Up and Octave Down buttons
25. Pitch and Modulation Wheels with RGB LEDs
26. 49 or 61 RGB Key LEDs
27. Semi-weighted keyboard with aftertouch strip
