Novitool Aero 325 - Main Components

—3—

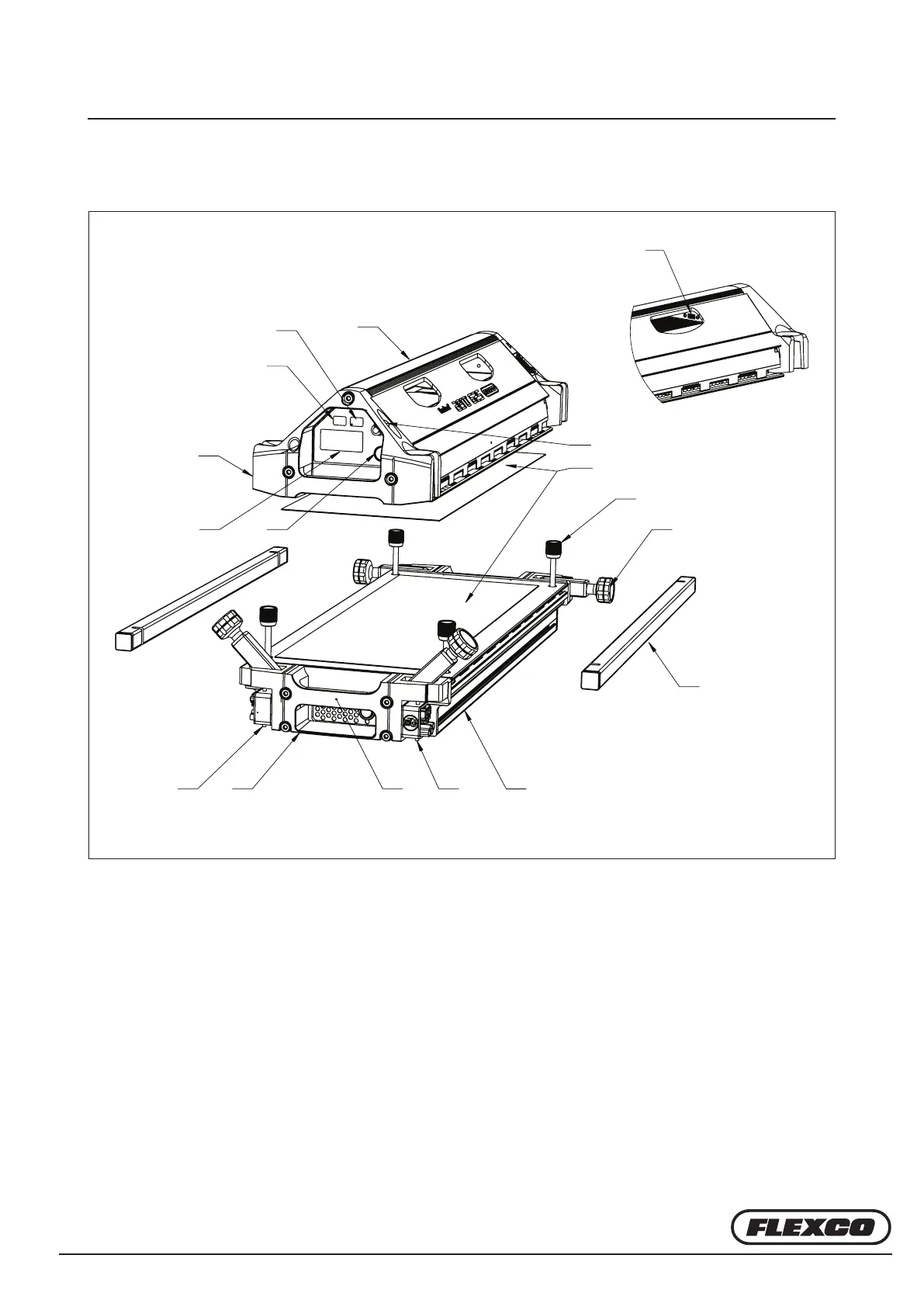

Main Components Aero
®
Splice Press
1. Top Press Beam 5. Clamp Bars (2) 9. Main Power Cable Connector 13. Display Screen
2. Bottom Press Beam 6. Clamp Bar Studs and Thumbnuts (4) 10. Start Button (Green) 14. Selector Knob
3. End Plates 7. Press Connector Bolts (4) 11. Stop Button (Amber) 15. Silicone Release Cloths (2)
4. Handle 8. Umbilical Power Cable Connector 12. Pressure Relief Button (Blue) 16. USB Port
1
2
3
4
5
14
13
3
12
11
10
9
7
15
8
6
16
