8. Definition of variables
8.1. Pressure Distribution Function
The pressure distribution function reflects the real pressure vs. rotation angle at a certain
point on surface. It is measured for every roller turn. In first part their course depends on
applied conditions like line force, elasticity of elastomer roller but also on friction of applied
ink. The splitting behavior is described by the second part of the line course.
X [m]
P [kN/m2]

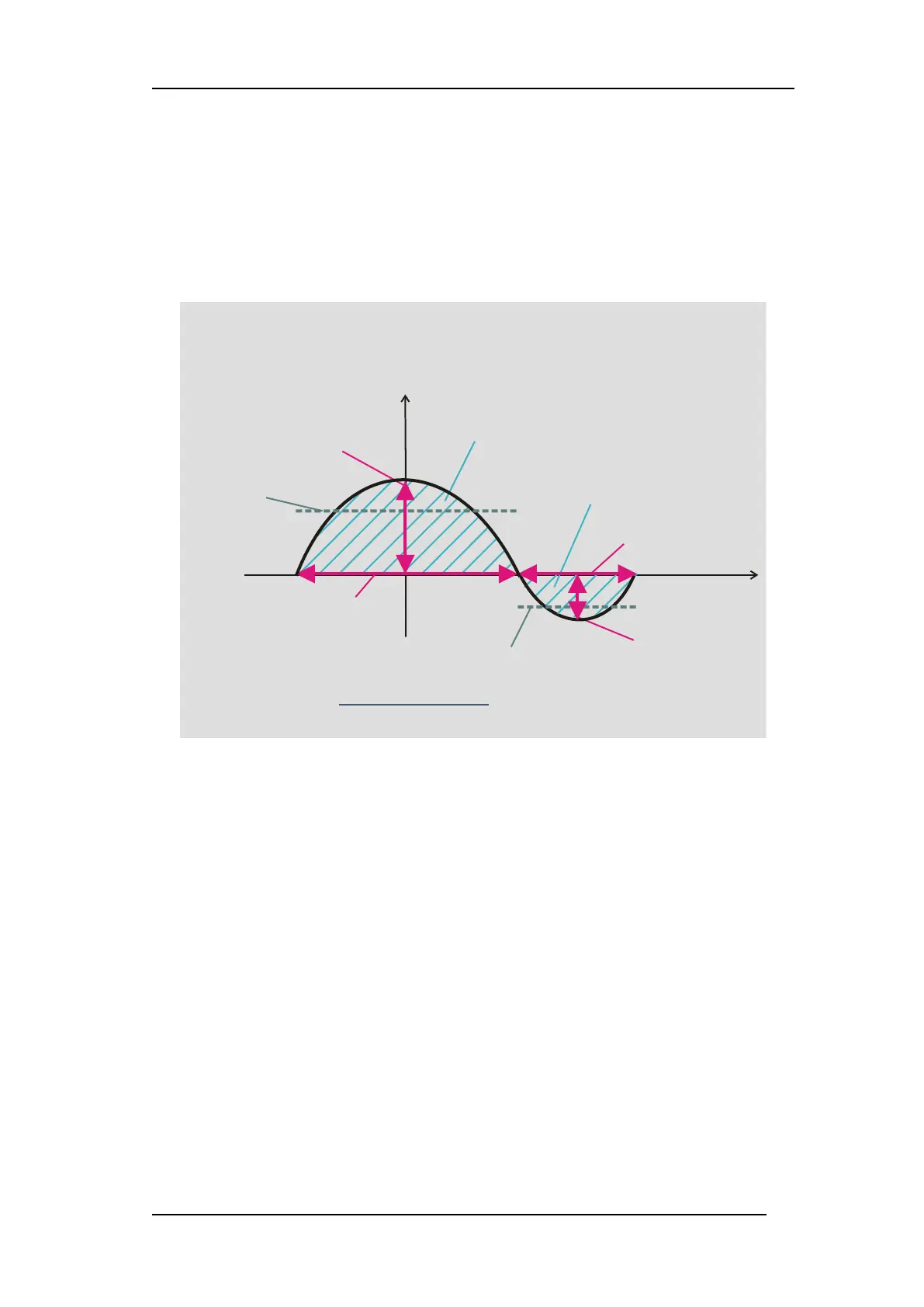

Pressure Distribution
Function and related Variables
Average Pressure [kN/m2]
Average Tack [kN/m2]
Peak Pressure [kN/m2]
Peak Tack [kN/m2]
Gap Width [ m] m
Tack Width [ m] m
Integrated Pressure
equal to LineForce
[N/m]
[N/m]
Integrated Tack [N/m]
Tack Length m [ m] =
Integrated Tack [N/m]
Peak Tack [kN/m2]
Figure 17
