COMPACTOR/DRIVER STRUCTURE
C2D THROUGH C12C COMPACTOR/DRIVERS

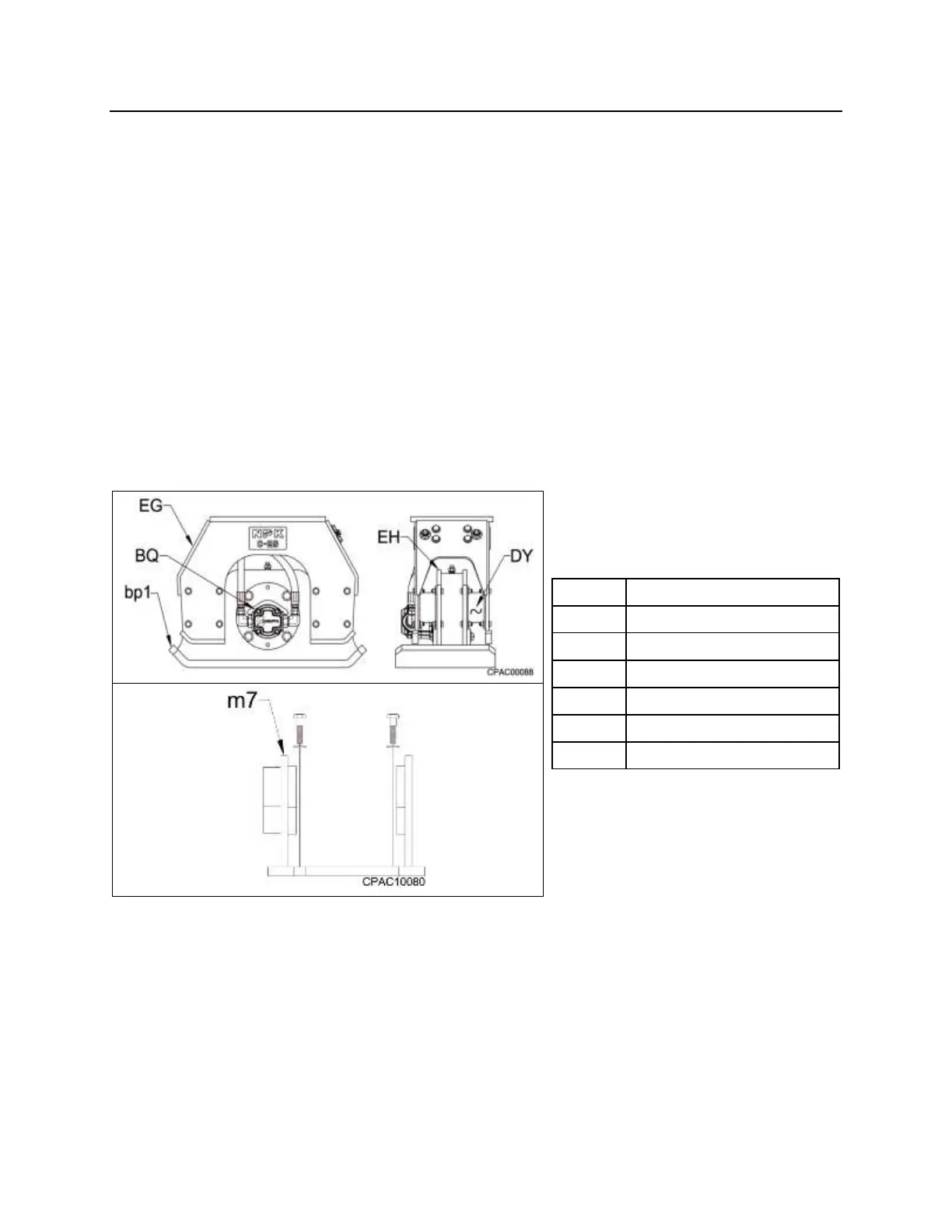

The C2D through C12C Compactor/Drivers consist of a top bracket, an upper frame and
a lower frame. The C2D Compactor has a fixed top bracket only. The C3D, C4C, C6C,
C8C, C10C, and C12C Compactor/Drivers are available with fixed or swivel top
brackets.
The C2D, C3D, C4C, C6C, and C8C upper frames are mounted to the lower frames
with four bolt-on rubber mounts. C10C and C12C models use eight bolt-on rubber
mounts. The rubber mounts reduce the amount of vibration being transmitted to the
carrier.
The lower frame contains an eccentric weight suspended on roller bearings and spun by
a hydraulic motor. The baseplate of these units is a welded part of the lower frame.
The upper frame contains a bolt-on hydraulic manifold (B, C, and D Series only).
