NTI COMPACT SERIES - Page 6

Temperature & pressure
relief valve, 3/4 NPT male
3/4 NPT female tapping
for relief valve
3/4 NPT female tapping for tap

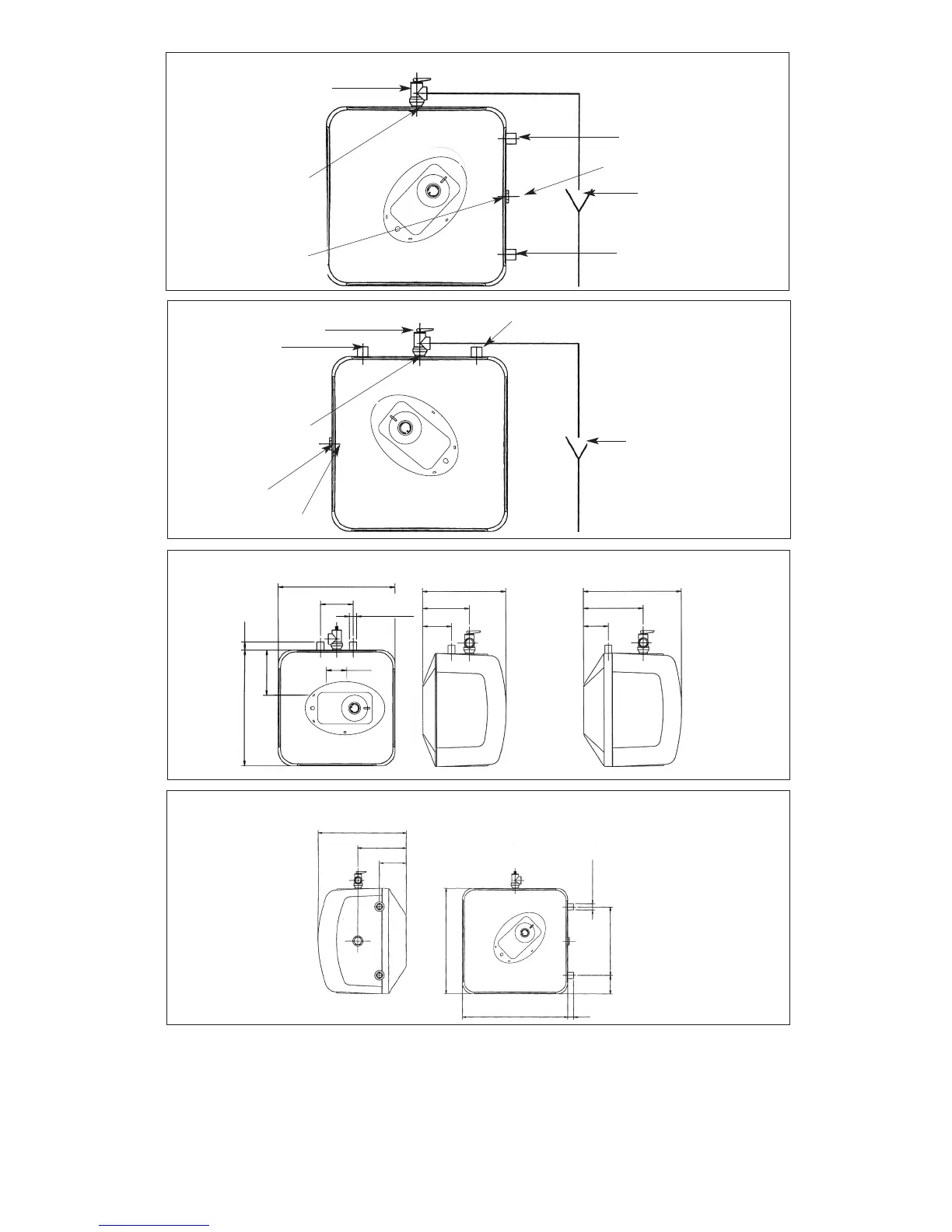

NTI COMPACT 6 (HORIZONTAL INSTALLATION)
FIG. 1/2
Temperature & pressure relief
valve discharge line to drain
Hot water outlet 3/4 NPT male
3/4 NPT male plug
Cold water inlet 3/4 NPT male
Temperature & pressure relief
valve, 3/4 NPT male
3/4 NPT female tapping for tap
3/4 NPT female tapping for
relief valve
NTI COMPACT 6 (VERTICAL INSTALLATION)
FIG. 1/3
Hot water outlet 3/4 NPT male
3/4 NPT male
Temperature & pressure relief
valve discharge line to drain
Cold water inlet
3/4 NPT male
FIG. 2/1
DIMENSIONS FOR NTI COMPACT 2.5 - NTI COMPACT 4
13 3/4”
10 3/4”
13 1/2”
9”
3 1/2”
6 1/4”
3 1/2”
1”
13 3/4”
5 3/8”
3 3/4”
2 1/2”
1/2 NPT MALE
12 1/4”
DIMENSIONS FOR NTI COMPACT6 (HORIZONTAL INSTALLATION)
FIG. 2/2
14 1/2”
8 1/2”
4 1/2”
17.6” 1”
17.6”
11.4”
3/4 NPT MALE
3”
NTI COMPACT 2.5
NTI COMPACT 4
2
