Installation & Operation Manual│ FTG
42

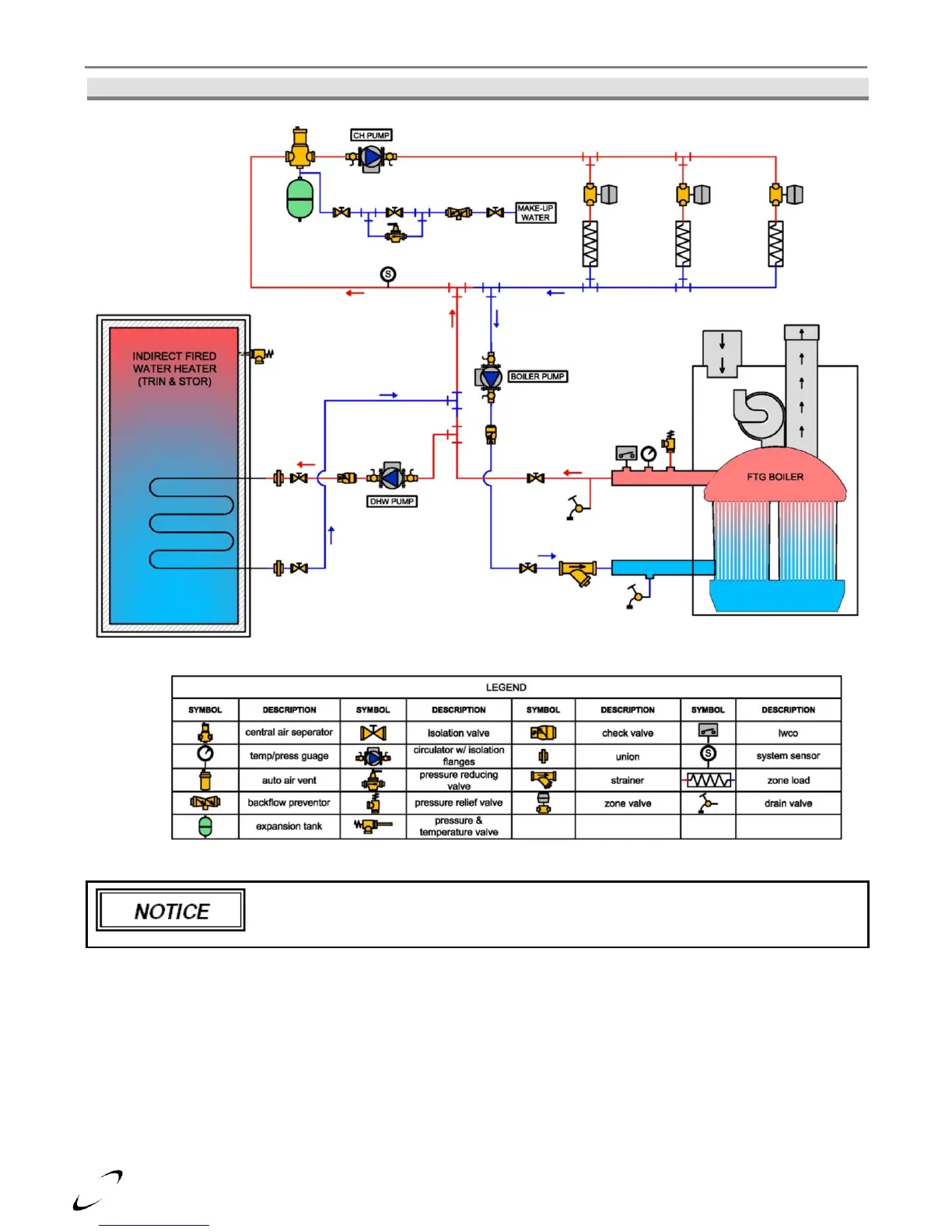

Figure 10-3 Plumbing Schematic – Single Central Heating Circulator
Figure illustrates the basic plumbing requirements for an FTG boiler installation with a
single Central Heating circulator, and an Indirect Water Heater. Refer to Figure 10-1
for boiler fitting identification.
