FTG │Installation & Operation Manual
45

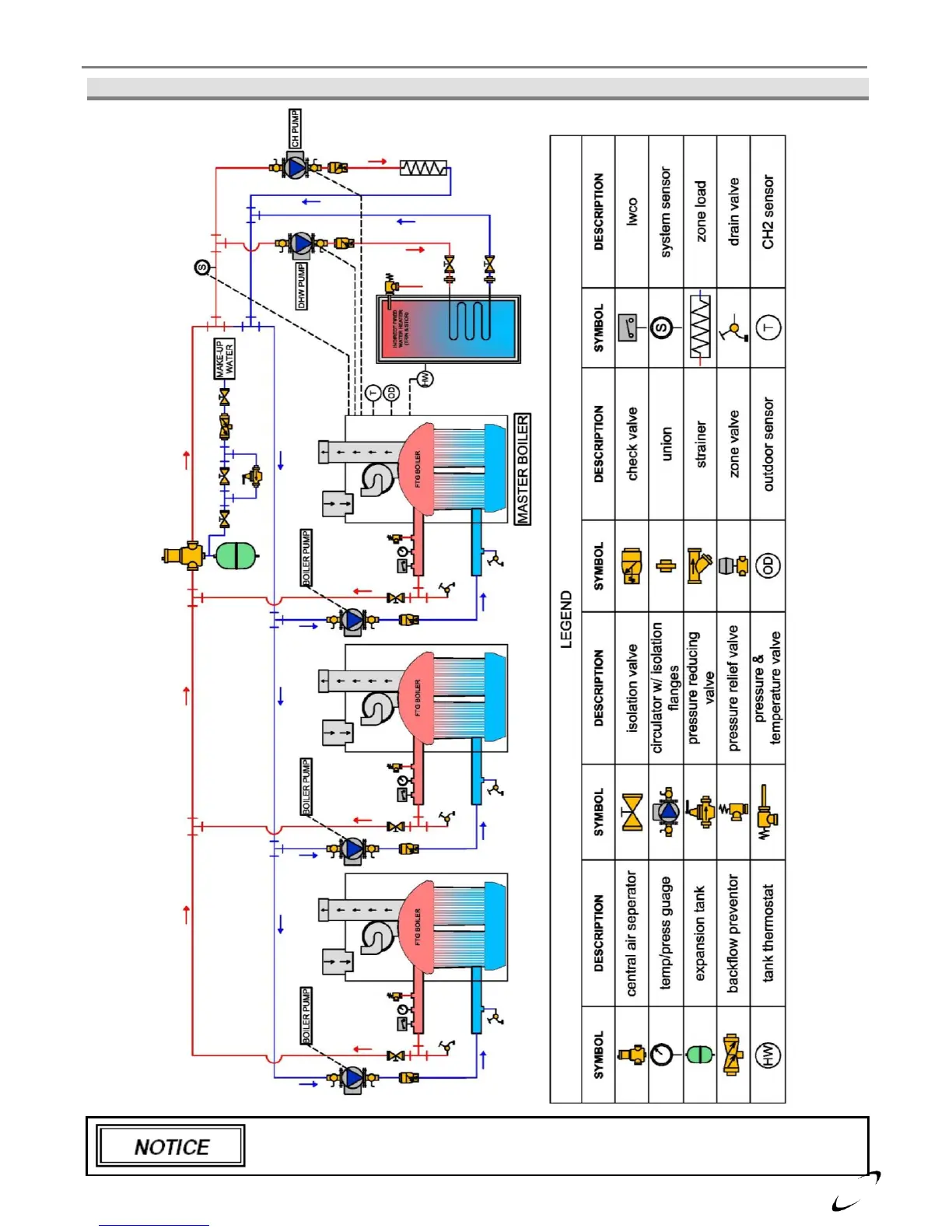

Figure 11-1 Multiple Boiler Cascade – Plumbing Configuration
Figure illustrates the basic plumbing requirements for multiple FTG boilers installed in
cascade configuration. Refer to Figure 10-1 for boiler fitting identification.
