Plan view
Side view
End view
B1
HE HS

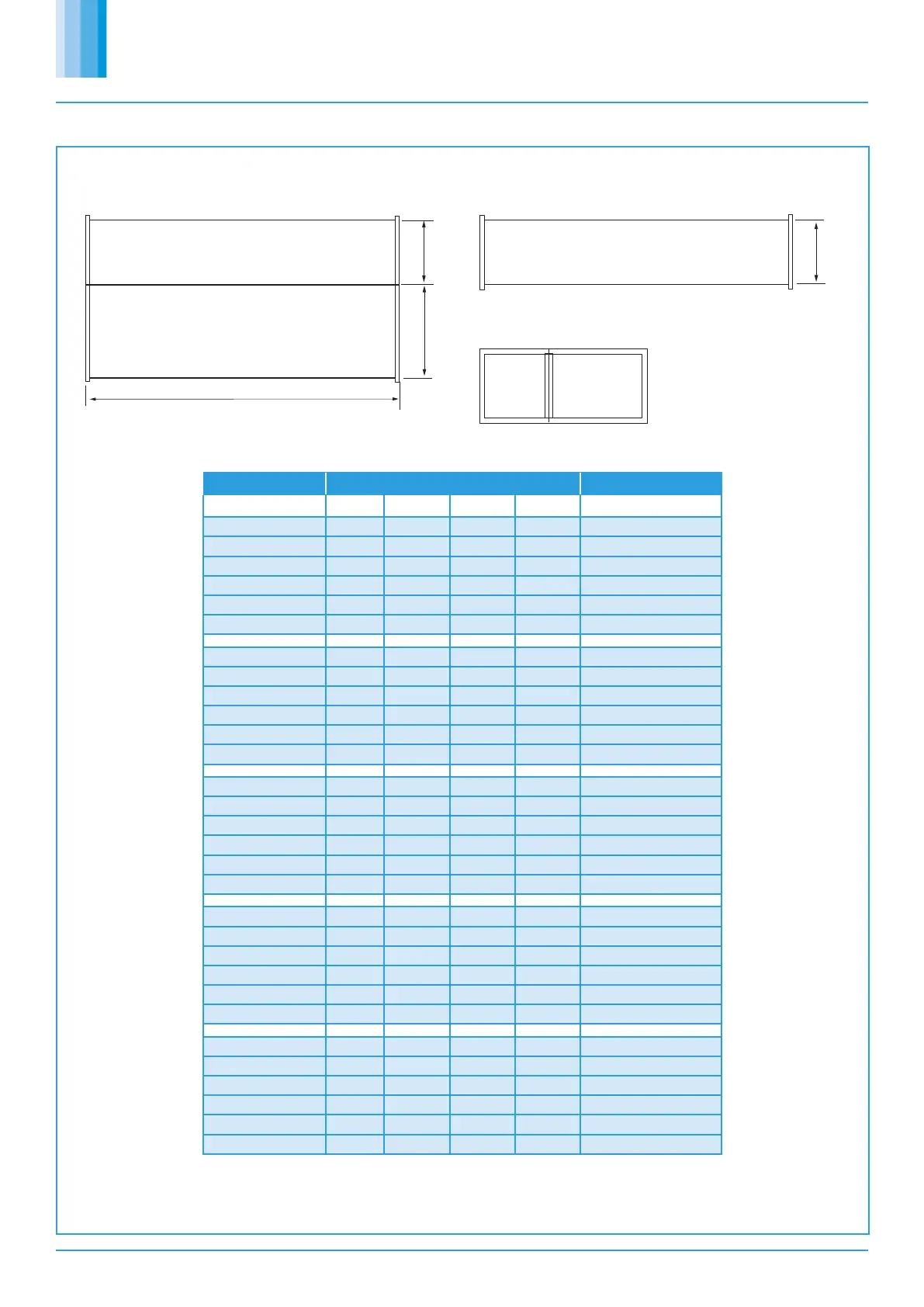

5.4 XBOXER XBC Attenuator Dimensions (mm) and Weights (kg)
Figure 11. Attenuator dimensions (mm).
Attenuator Code Dimensions (mm) Attenuator Weights
A B1 B2 C (kg)
XBC15-HS-MS10* 1050 347 220 49
XBC15-HE-MS10* 1050 238 220 37
XBC15-HS-MS12* 1250 347 220 63
XBC15-HE-MS12* 1250 238 220 50
XBC15-HS-MS16* 1600 347 220 81
XBC15-HE-MS16* 1600 238 220 62
XBC25-HS-MS10* 1050 471 302 59
XBC25-HE-MS10* 1050 252 302 44
XBC25-HS-MS12* 1250 471 302 76
XBC25-HE-MS12* 1250 252 302 59
XBC25-HS-MS16* 1600 471 302 99
XBC25-HE-MS16* 1600 252 302 73
XBC45-HS-MS10* 1050 531 360 69
XBC45-HE-MS10* 1050 270 360 49
XBC45-HS-MS12* 1250 531 360 88
XBC45-HE-MS12* 1250 270 360 66
XBC45-HS-MS16* 1600 531 360 114
XBC45-HE-MS16* 1600 270 360 81
XBC55-HS-MS10* 1050 588 430 79
XBC55-HE-MS10* 1050 398 430 62
XBC55-HS-MS12* 1250 588 430 101
XBC55-HE-MS12* 1250 398 430 82
XBC55-HS-MS16* 1600 588 430 131
XBC55-HE-MS16* 1600 398 430 102
XBC65-HS-MS10* 1050 588 580 87
XBC65-HE-MS10* 1050 398 580 74
XBC65-HS-MS12* 1250 588 580 112
XBC65-HE-MS12* 1250 398 580 97
XBC65-HS-MS16* 1600 588 580 145
XBC65-HE-MS16* 1600 398 580 122
2 attenuator flange connections are attached to every unit. Add 50mm to dimension 'A' to include both flanges.

NuAire XBOXER XBC25-H-LES Specifications

General

Category	Heating System
Heating Capacity	25 kW
Voltage	400 V
Phase	3
Frequency	50 Hz
