MC-II Plus WP-PM Flow Analyzer

Appendix A1

A1-6 May 2005

FRONT VIEW SIDE VIEW

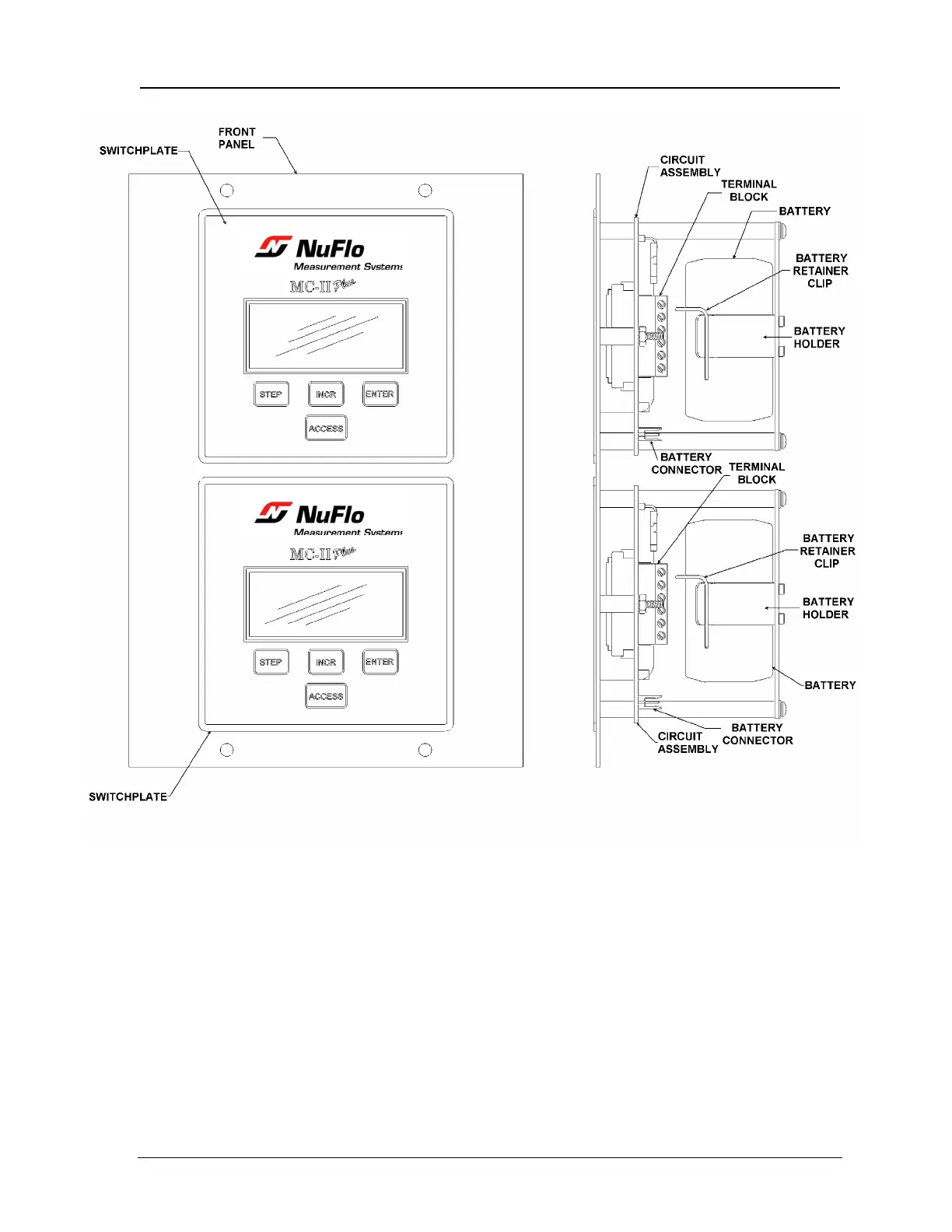

Double Wide MC-II Plus Flow Analyzer with Two Readouts, Nomenclature
