PAGE 5 MIXER CONTROLS
MIXER CONTROLS continued

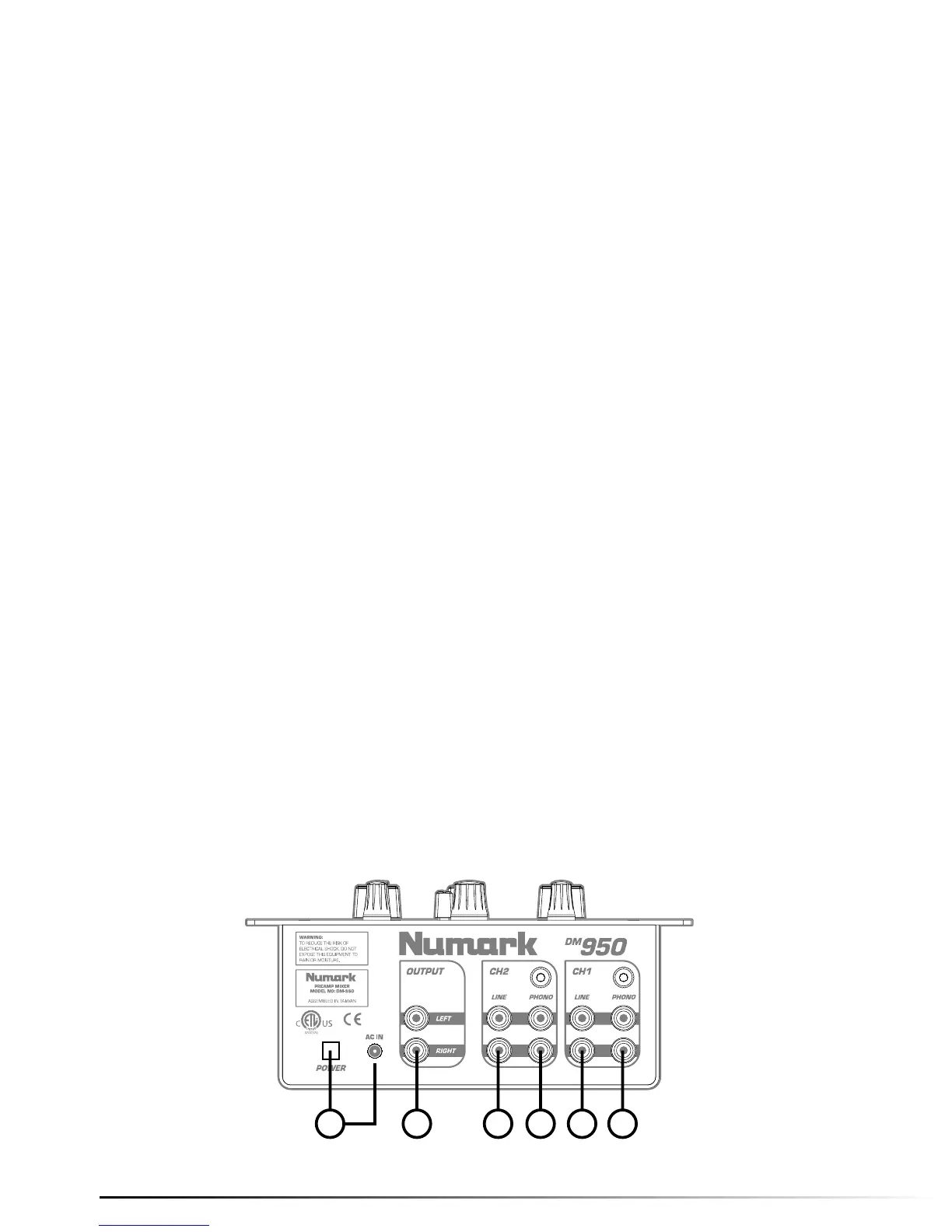

Input and Power Section
NOTE: It is recommended that the mixer be turned off before connecting or disconnecting anything to/from the mixer.
A. Power Switch and AC Jack
Use only the included AC Power Adapter when operating this mixer. See Control 1 for additional notes on powering the
mixer.
B. RCA Master Output
This RCA output is for connecting an external monitoring device such as a PA system, powered monitors or a home
stereo. The level of the master stereo output signal increases as the Master Volume (2) control is increased.
C. CH 2 Line Level Input
This line level input is used to connect CD players and other line level devices.
D. CH 2 Phone Level Input with Grounding Lug
This input is used for connecting a phono level source (turntables) to the mixer. Please note that to reduce excessive
noise and hum, the ground wire from the turntable must be connected to the mixer by tightening the ground lug onto
the turntable ground wire.
E. CH 1 Line Level Input
This line level input is used to connect CD players and other line level devices.
F. CH 1 Phone Level Input with Grounding Lug
This input is used for connecting a phono level source (turntables) to the mixer. Please note that to reduce excessive
noise and hum, the ground wire from the turntable must be connected to the mixer by tightening the ground lug onto
the turntable ground wire.
G. Microphone Input
This Quarter Inch Output Jack is used for connecting a Microphone to the mixer. See Control 5 for additional notes on
Microphone use.
H. Quarter Inch Headphone Output
This mixer is equipped with a very powerful headphone amplifier. It is important that the level be set AT THE MINIMUM
SETTING when connecting or disconnecting headphones and slowly increased until the desired level is reached.
BA C D E F
