Numark MIXTRACK PLATINUM FX Service Manual

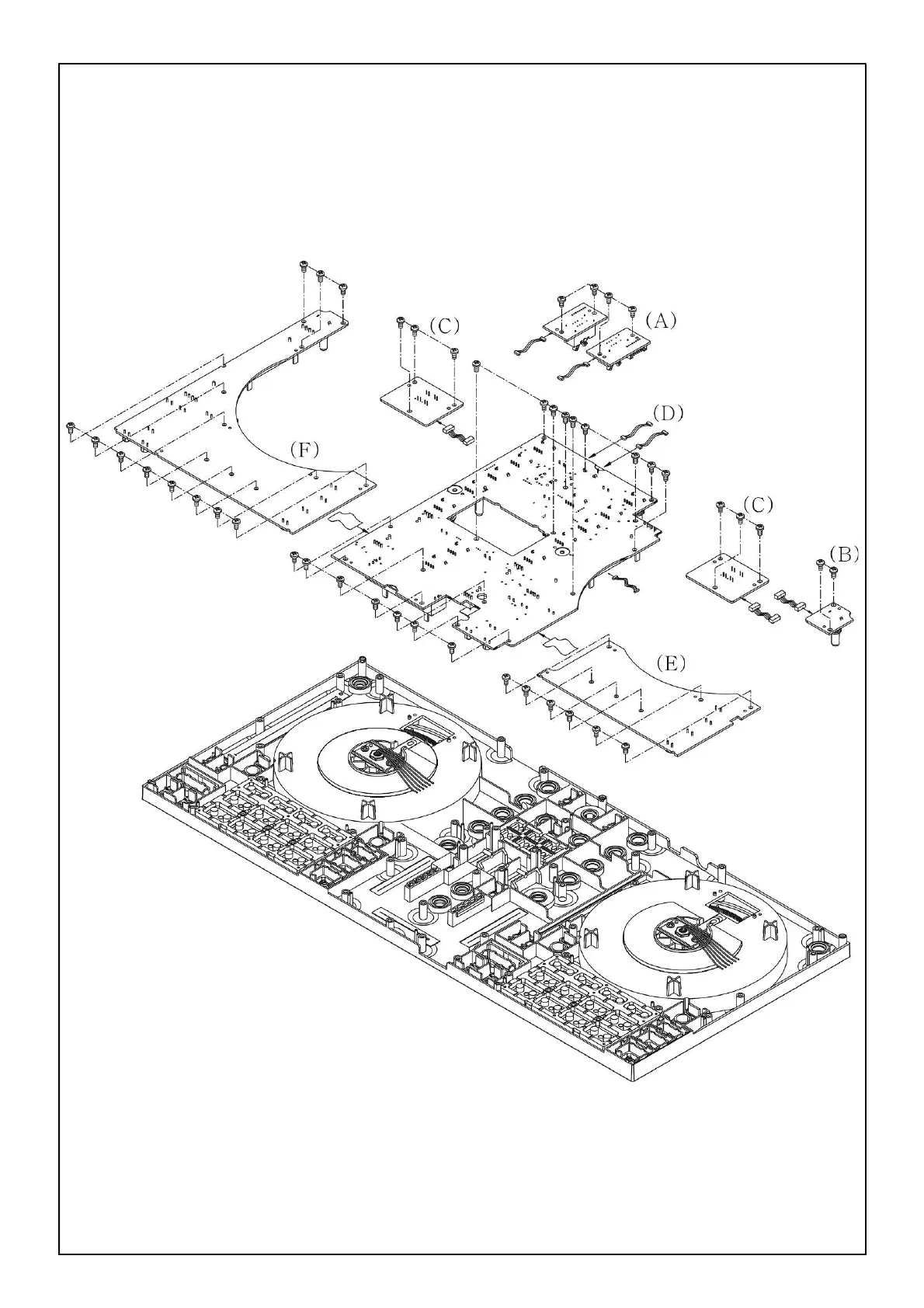

2. REMOVAL PCB ASSEMBLY. (Fig. 2)
(A) REMOVE THE 4 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF TOGGLE SW PCB DIP ASSEMBLY.
(B) REMOVE THE 2 PCS SCREWS AND 1 PC CONNECTOR BEFORE REMOVAL OF IC VR PCB DIP ASSEMBLY.
(C)REMOVE THE 6 PCS SCREWS AND 2 PCS CONNECTORS BEFORE REMOVAL OF LEFT& RIGHT SENSOR PCB SMT
ASSEMBLY.
(D) REMOVE THE 16 PCS SCREWS AND 5 PCS CONNECTORS BEFORE REMOVAL OF MAIN PCB SMT ASSEMBLY.
(E) REMOVE THE 6 PCS SCREWS BEFORE REMOVAL OF LEFT PAD PCB SMT ASSEMBLY.
(F) REMOVE THE 11 PCS SCREWS BEFORE REMOVAL OF RIGHT PAD PCB SMT ASSEMBLY.
Fig.2

Numark MIXTRACK PLATINUM FX Specifications

General

Software	Serato DJ Lite
Type	DJ Controller
Jog Wheels	2 x 6" High-Resolution Jog Wheels
Performance Pads	8 per deck
FX Paddles	2
Audio Interface	Built-in
Outputs	RCA output (main), 1/8" and 1/4" headphone outputs
Number of Decks	4
Channels	2
Faders	2 (Volume), 1 (Crossfader)
Effects	Yes
Inputs	1 x 1/4" Microphone
USB	USB-powered
Power	USB powered
Deck Control	4-Deck
Compatibility	Windows, macOS
Pads	8 per deck
Crossfader	1
Mixer Section	2-channel
