DISASSEMBLY PROCEDURES

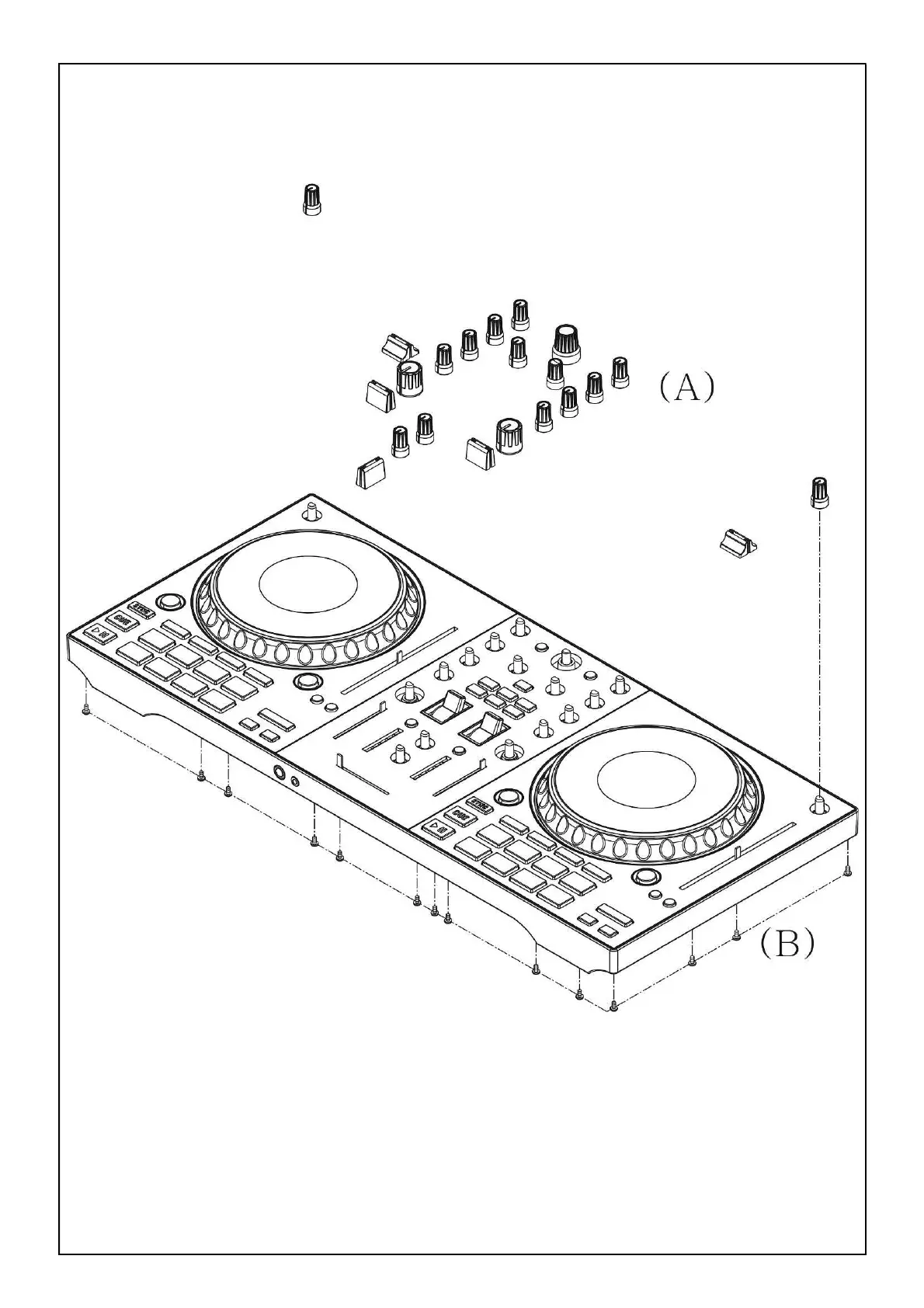

1. REMOVAL OF THE B CABINET .(Fig1)
(A) TAKE OUT THE 5 PCS VR CAP AND 17 PCS KNOB FROM OF CABINET.
(B) TAKE OUT THE 14 PCS SCREWS FROM OF BOTTOM CHASSIS.
Fig.1
