Numark NS7FX User Manual

     

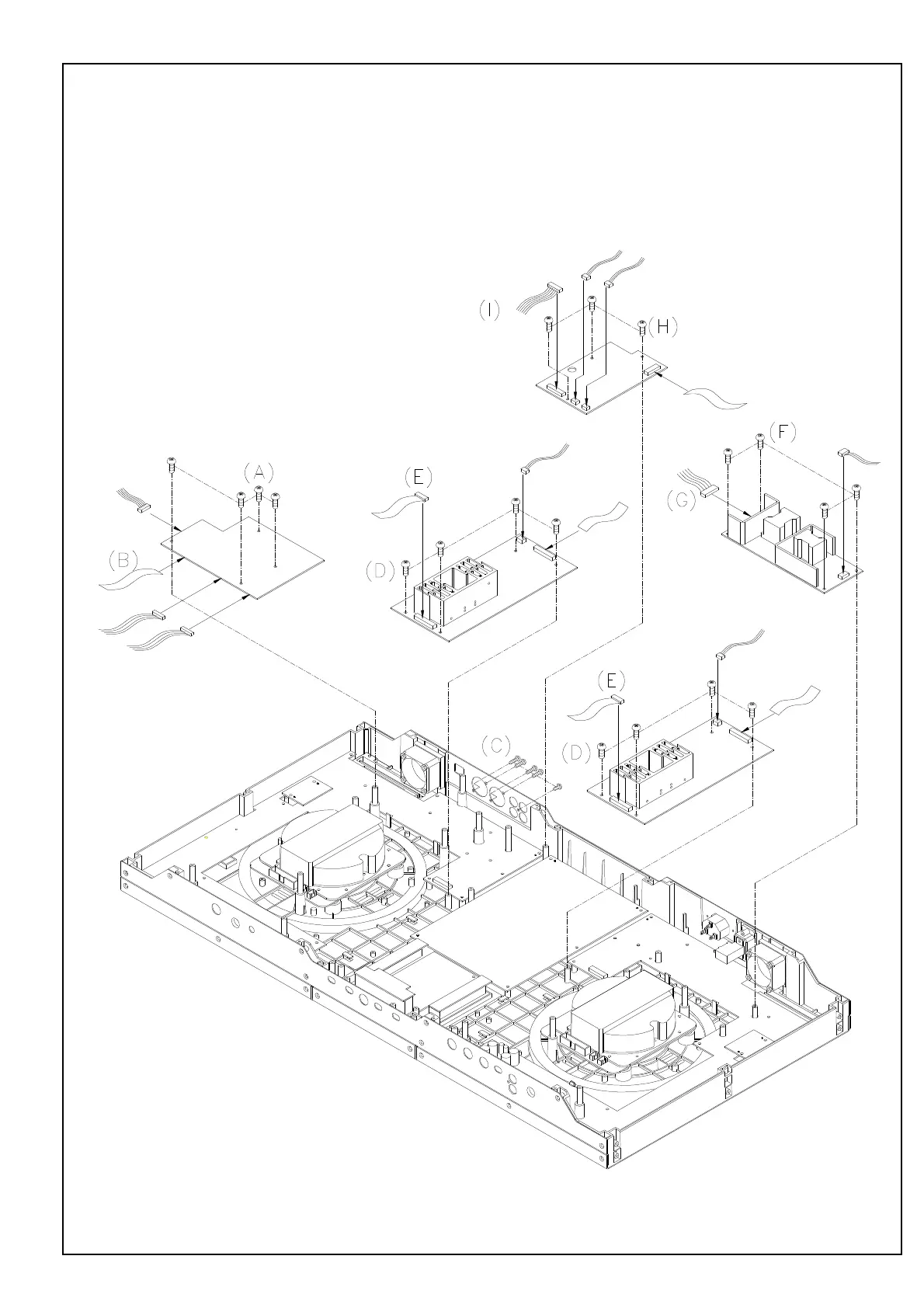

(A) REMOVE THE 4 PCS OF SCREW.
(B) REMOVE THE 4 PCS CONNECTOR.
(C) REMOVE THE 5 PCS SCREW BEFORE REMOVAL OF MAIN PCB.
(D) REMOVE THE 8 PCS OF SCREWS. 
(E) REMOVE THE 6 PCS CONNECTOR BEFORE REMOVAL OF MOTOR PCB(L&R).
(F) REMOVE THE 4 PCS OF SCREW.
(G) REMOVE THE 2 PCS CONNECTOR BEFORE REMOVAL OF SWITCH POWER.
(H) REMOVE THE 3 PCS OF SCREW.
( I ) REMOVE THE 3 PCS CONNECTOR BEFORE REMOVAL OF POWER PCB.



Numark NS7FX Specifications

General

Brand	Numark
Model	NS7FX
Category	DJ Equipment
Language	English
