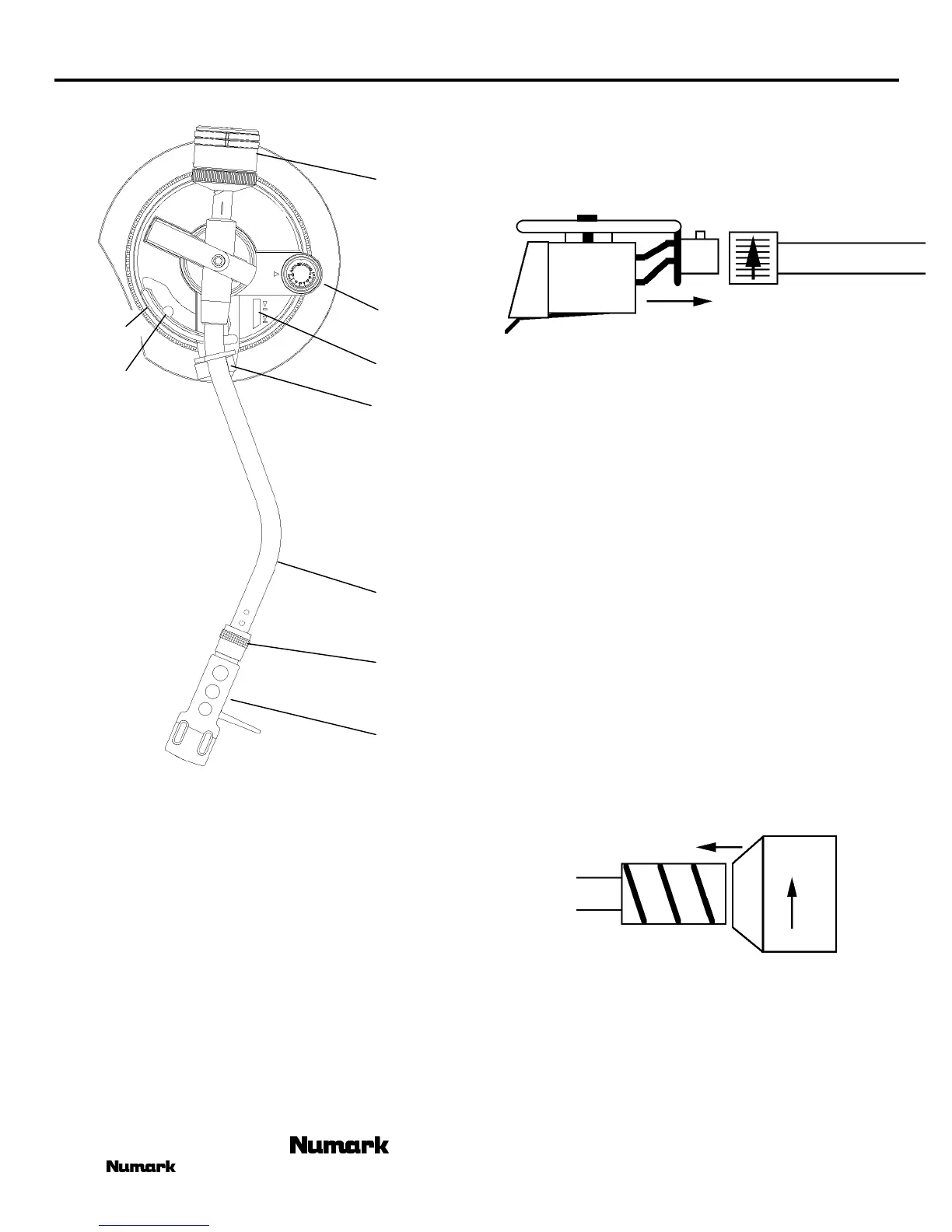

TONE ARM ASSEMBLY

18. Headshell- Install cartridge here. When

installing a cartridge, refer to the installation

instructions supplied by the manufacturer of that

cartridge. During installation, attach the stylus

protector to guard the stylus tip from damage.

Attach wires as follows:

White (L+) Left channel +

Blue (L-) Left channel

Red (R+) Right channel +

Green (R-) Right channel

19. Headshell Locking Nut - Attach headshell by

inserting into the front end of the tonearm, then

turn the locking nut clockwise with the head

shell firmly held horizontally.

20. S-Shaped Tone Arm

21. Tone Arm Clamp and Rest - Use this rest for the

tone arm and clamp it in position during

transportation.

22. Tone Arm Lift - This elevates the tone arm

above the record surface.

23. Tone Arm Lift Adjust Screw - Controls the

amount of lift.

24. Tone Arm Lever - Controls the up and down

action of the Tone Arm Lift.

25. Anti-Skate Control - This applies inward force

to the tonearm so it doesn’t skip outward across

the record due to the centrifugal force of the

record spinning. Cartridge manufacturers

usually specify the proper setting of this.

26. Counterweight - Adjustment creates the proper

downward pressure of the stylus to the record.

Attach now by sliding the counterweight onto

the rear of the tonearm. Twist it lightly and it

will screw onto the rear shaft of the tonearm.
