Numatic HFS 1023 User Manual

11
T 01460 68600
MACHINE/MOD-
ELS NO.s
HFS 1015 HFS 1023 HFM 1015 HFM 1023 HFM 1515 FMH 1515 HFM 1523 HFM 1530 HFM 1545 HFT 1530
Motor 205201 205201 205201 205201 205202 205202 205202 205202 205204 205205
Gearbox 230206 230210 230206 230210 230206 230206 230210 230209 230210 230206
Start Cap 205088 205088 205088 205088 205088 205088 205088 205088 205088 205088
Run Cap 208651 208651 208651 208651 220897 220897 220897 220897 220897 220897
Voltage
Relay
208582 208582 208582 208582 902715 902715 902715 902715 902715 206824
Handle Relay 206575 206575 206575 206575 206575 206575 206575 206575 206575 206575
Replacement parts

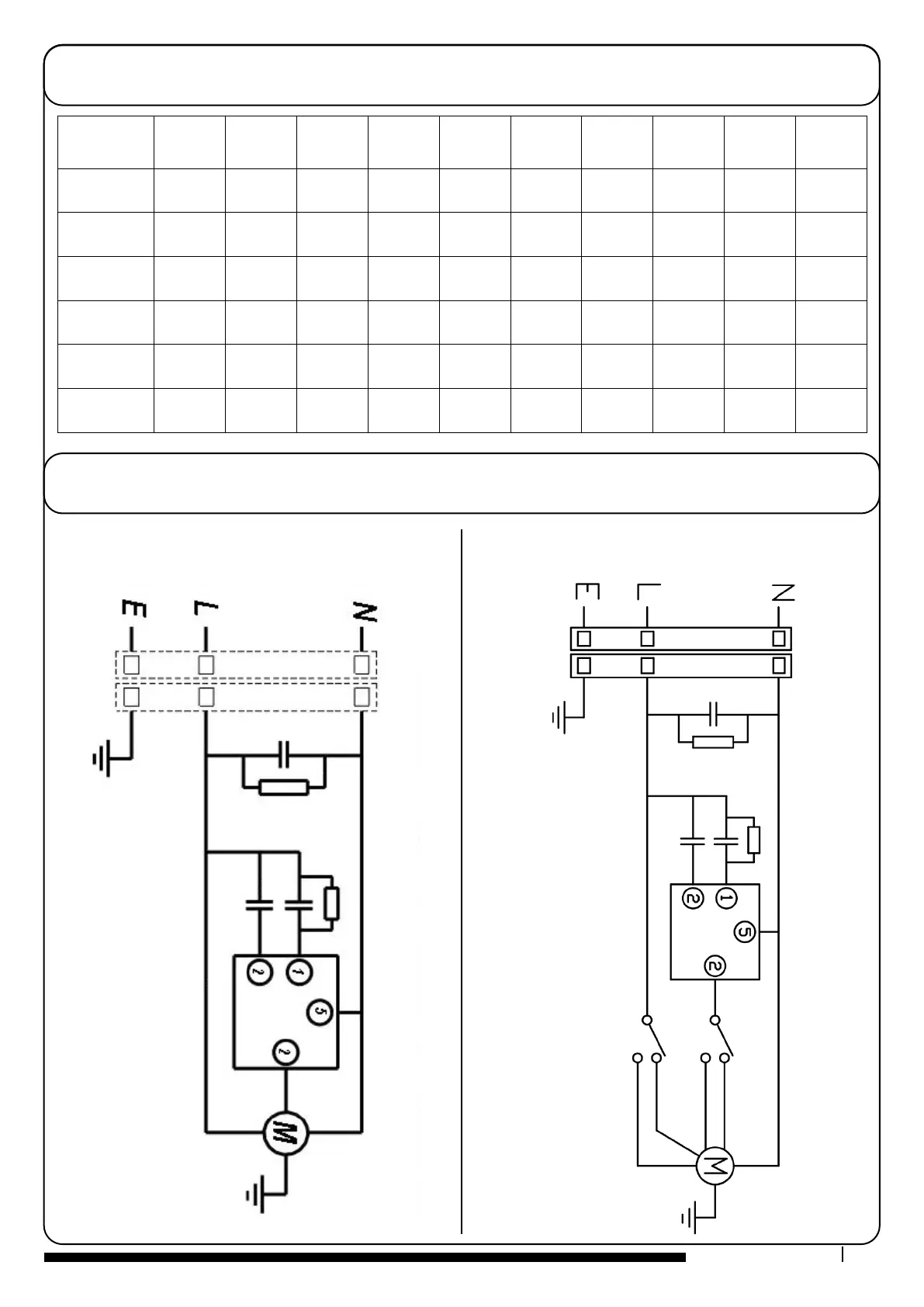

Schematic Diagram
HFS / HFM / FMH 1000W / 1500W - DRW-11701 (A09) HFT 1530 - DRW-12031 (A05)
