INSTALLATION
INSTALLATION

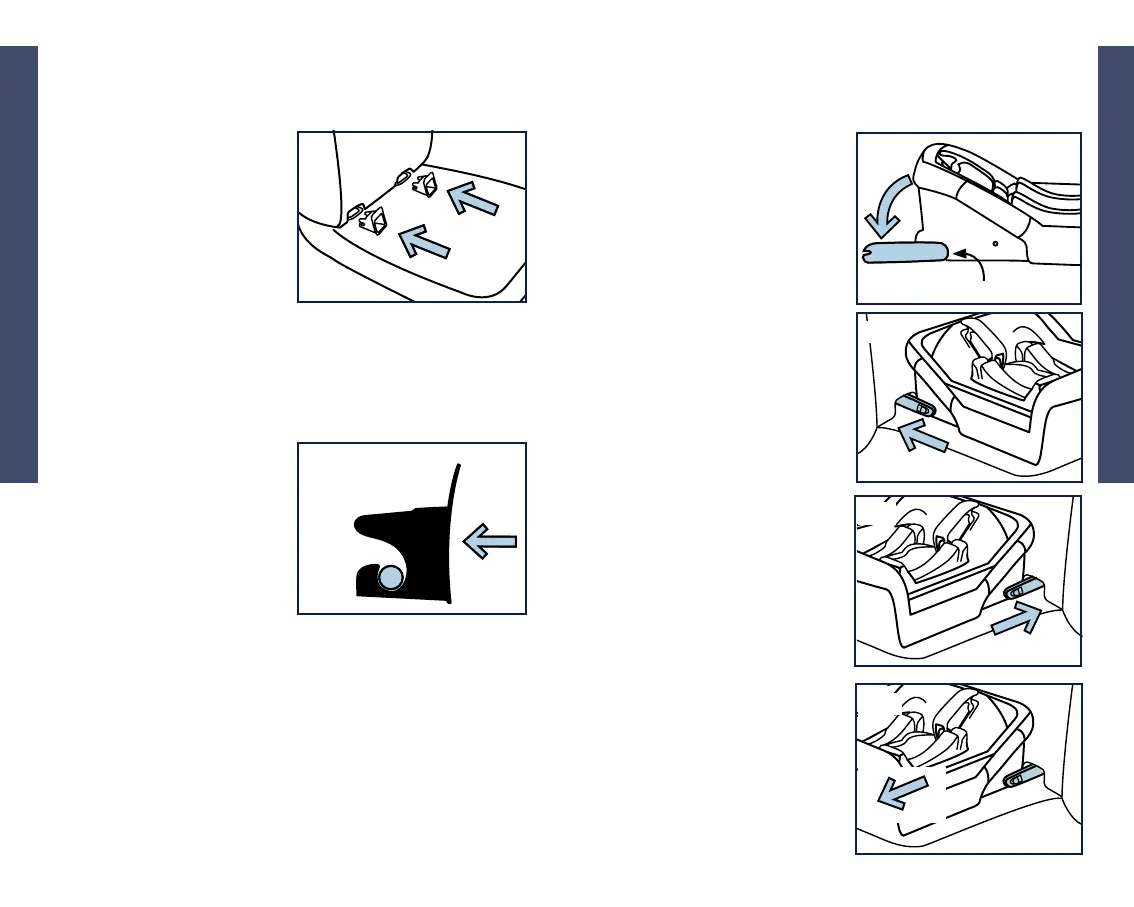

1 Some models come with
guides for the ISOFIX
compatible connectors.
These are for use in cars
where the anchorage bar
is recessed a long way
into the seats.
Once tted they will
help guide the ISOFIX
compatible connector
into place.
2 To use:
• locate the position of
the ISOFIX low anchor-
age,
• slide the guide in until
it contacts the steel rod
• allow the guide to push
up until it is secure on the
steel rod.
1
Fit guide onto
steel rod
2
Installation — ISOFIX Compatible
Connector Guides
3 Pull the base back to en-
sure both lower connec-
tors are engaged.
A
1
1 Press the release buttons
A and swing the ISOFIX
compatible connectors
forward to their operat-
ing position.
2 Attach each connector to
the vehicle ISOFIX low
anchorages.
Before fitting see general installation instructions on
pages 7 & 8
3
2
2
