Nuovo EB Easy-Printer - Electrical Overview Easy-Print

Nuovo
Operating instructions for use
EB EASY-PRINTER
Eggland’s Best, Inc. Operating Standards Manual- EB Easy Printer Manual 16/001
Confidential. Do not reproduce without permission December 6, 2016
7

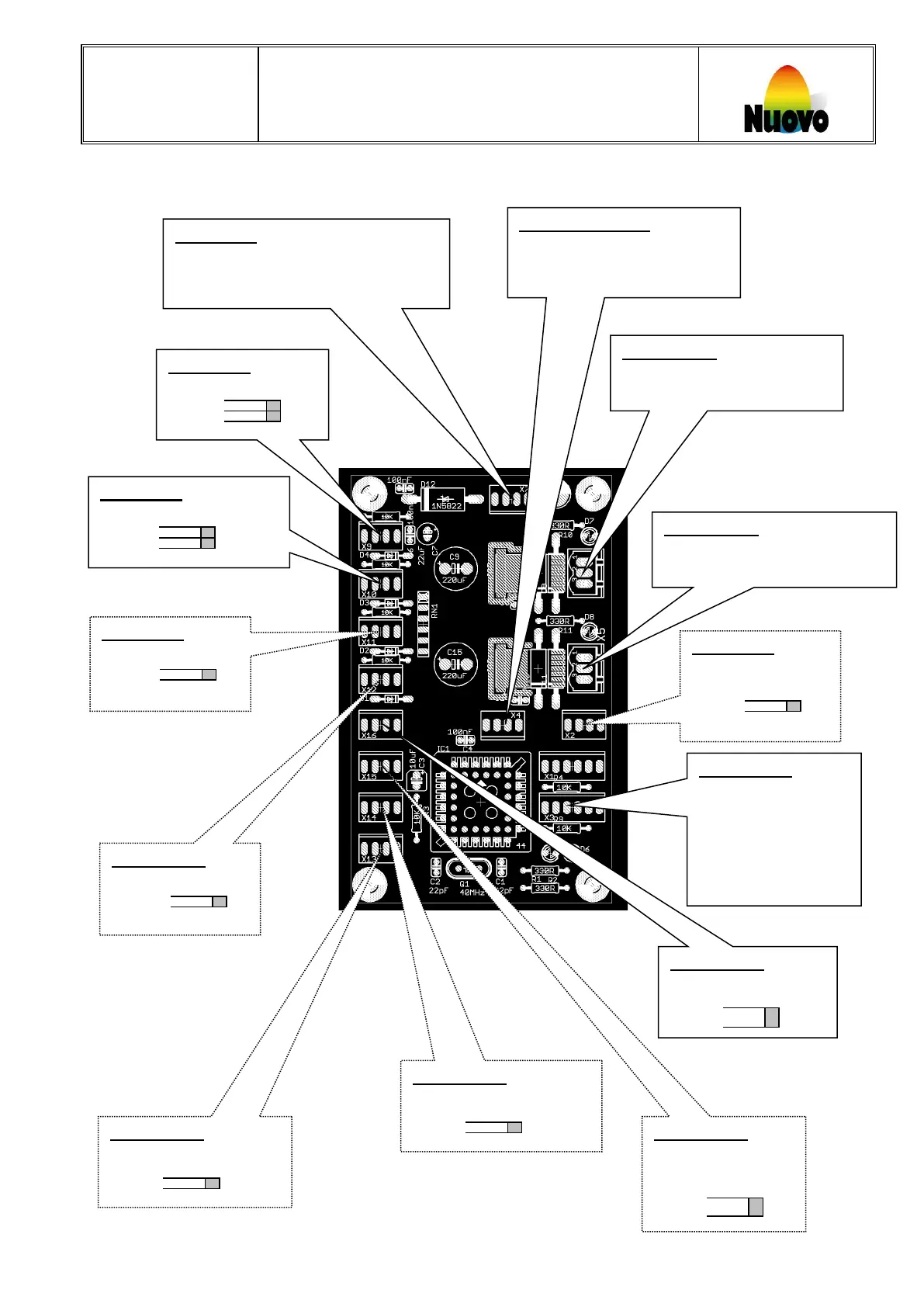

6.5 Electrical overview EasyUnit10
Input X0:
Start-Sensor
Pin 1: +24V
DC
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Input P0:
Power supply +24V
DC
Pin 1: +24V
DC
Pin 2: GND
DC
In-/Output C0:
Serial data cable (TTL)
Pin 1: RXD
Pin 2: TXD
Pin 3: GND
Pin 4: +5V
DC
Input X1:
Index-Sensor
Pin 1: +24V
DC
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Output X7:
Conveyor belt
ON/OFF
Pin 1: -
Pin 2: Signal
Pin 3: GND
Output X3:
Sealing-off lit
Pin 1: +24V
DC
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Output X6:
5V
DC
for Egg counter
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Output X4:
5V
DC
LED (green)
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Output X5:
5V
DC
LED (red)
Pin 1: -
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Input X2:
Safety-Guard
Pin 1: +24V
DC
Pin 2: Signal
Pin 3: GND
Pin 4: +5V
DC
Output A0:
Stamper-Motor 24V
DC
Pin 1: Power output A
Pin 2: Power output B
Output A1:
Conveyor belt-Motor 24V
DC
Pin 1: Power output A
Pin 2: Power output B
Input X10:
Selector switch for
Setting delay time
Pin 1: D0
Pin 2: D1
Pin 3: D2
Pin 4: D3
Pin 5: GND
Pin 6: +5V
DC
Input X8:
Button for
manual start
Pin 1: Signal
Pin 2: GND
Pin 3: Signal
Pin 4: GND
