06
Coaxial Input: Both COAX1 and COAX2 accept up to 768KHz. For DSD DOP standard input up to
DSD256.
Optical Input: Both OPT1 and OPT2 digital inputs accept up to 192KHz. For DSD DOP standard
input up to DSD64.
AES/EBU Input: Professional digital input accepts up to 192KHz. For DSD DOP standard input
up to DSD64.
Ground terminal: Chassis ground.
AC Inlet: Connect the supplied mains lead to the AC IN (115V or 230 V) terminal on the rear
of the DAC.

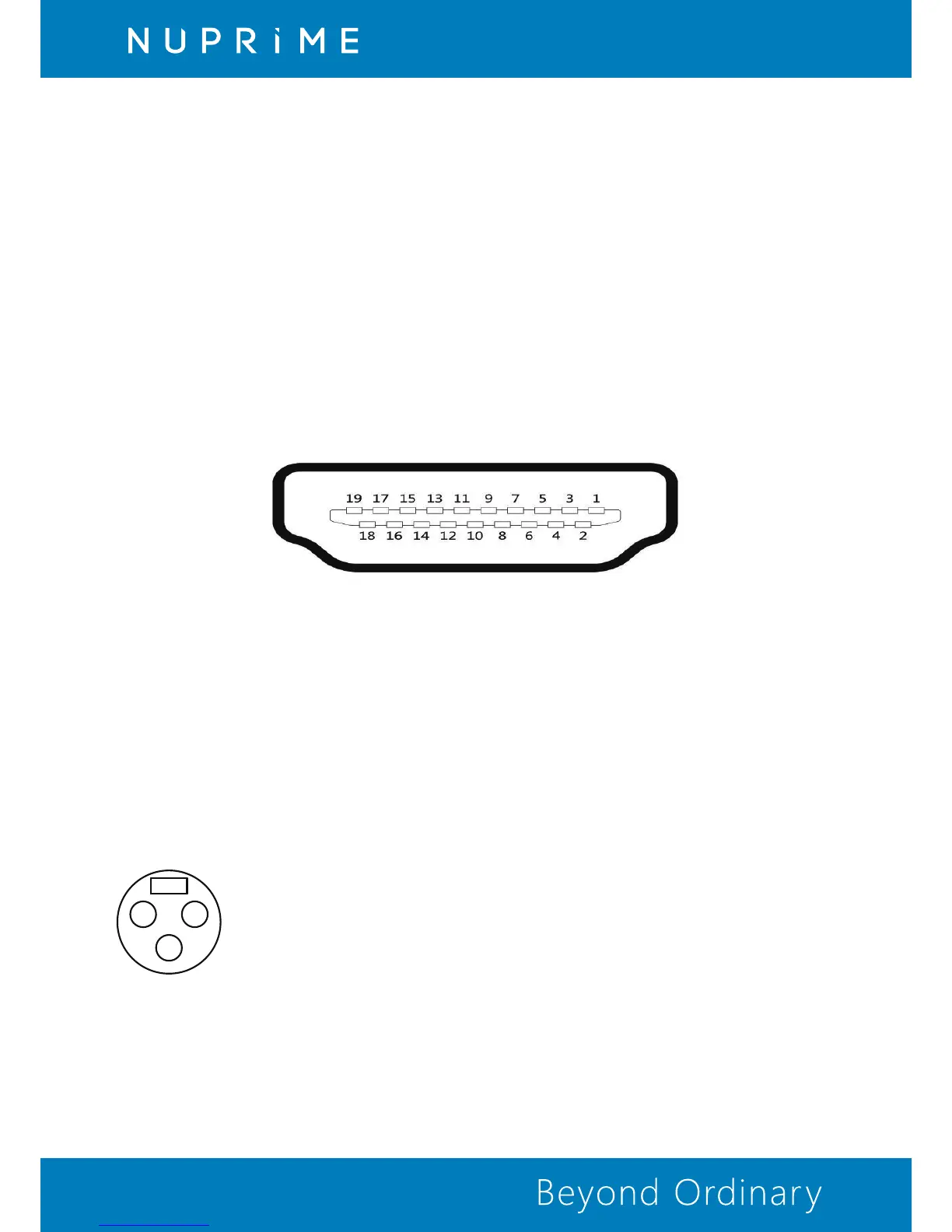

• PIN14 : NC
• PIN13 : NC
• PIN12 : NC
• PIN11 : GND
• PIN10 : NC
• PIN9 : LRCK + / DSD R +
• PIN8 : GND • PIN15 : NC
• PIN16 : NC
• PIN17 : GND
• PIN18 : NC
• PIN19 : + 3.3V OUTPUT
• PIN3 : SDATA + / DSD L+
• PIN1 : SDATA - / DSD L-
• PIN2 : GND
• PIN4 : BCK + / DSD CLK +
• PIN5 : GND
• PIN6 : BCK - / DSD CLK -
• PIN7 : LRCK - / DSD R -
AES / EBU (XLR FEMALE ) Pin define:
IIS / DSD Pin define:
Pin 1 : Ground
Pin 2 : Positive (+)
Pin 3 : Negative (-)
CASE
2
3
1
• Analog Outputs:
1x Balanced Stereo Audio Output ( XLR MALE )
1x Stereo Audio Output ( RCA )
