07
CASE
1
3
2

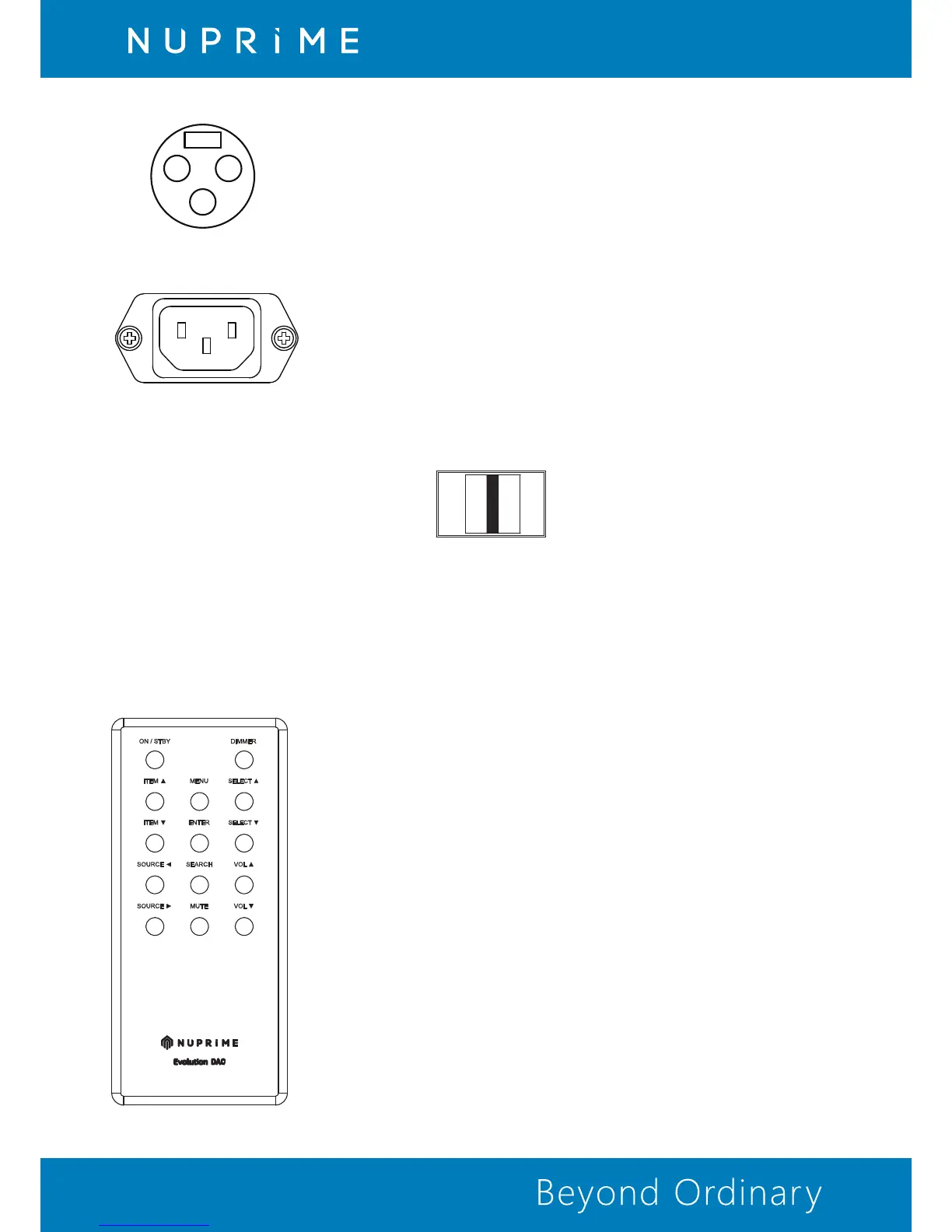

• Output Phase: Normal
Pin 1 : Ground
Pin 2 : Positive (+)
Pin 3 : Negative (-)
• Output Phase: Invert
Pin 1 : Ground
Pin 2 : Negative (-)
Pin 3 : Positive (+)
• AC Inlet:
1
2
3
Pin 1 : Live Conductor : L
Pin 2 : Ground Conductor : PE
Pin 3 : Neutral Conductor : N
3.3 Remote Control
• ON / STBY: Toggle power STANDBY and ON
• DIMMER: Toggle between 4 dim presets
• ITEM ▲▼ : Navigate Menu item
• MENU: Enter / exit the Setup Menu
• ENTER: Only used to confirm loading default function.
• SELECT ▲▼ : Navigate item value
• SOURCE ◄► : Digital input selection
• SEARCH: Quickly search for input with valid signal
• MUTE: Mute / Unmute audio
• VOL▲▼ : Increase / Decrease volume
Battery Replacement:
To change the battery, please remove the 4 screws and the
bottom cover to reveal the battery casing.
• AC Inlet Voltage Selector:
115
230
Make sure that the AC voltage selector switch at the bottom of the unit is switched
to the appropriate voltage for your country. All EVO DACs are shipped with the
switch set to 230V AC in order to prevent accidental damage.
