F 10 Calibration of the gauges
! It is important that the gauges are always placed in the home position after measurements as
this can result in inaccurate results.
! The brake should be released on all machines that have this function.

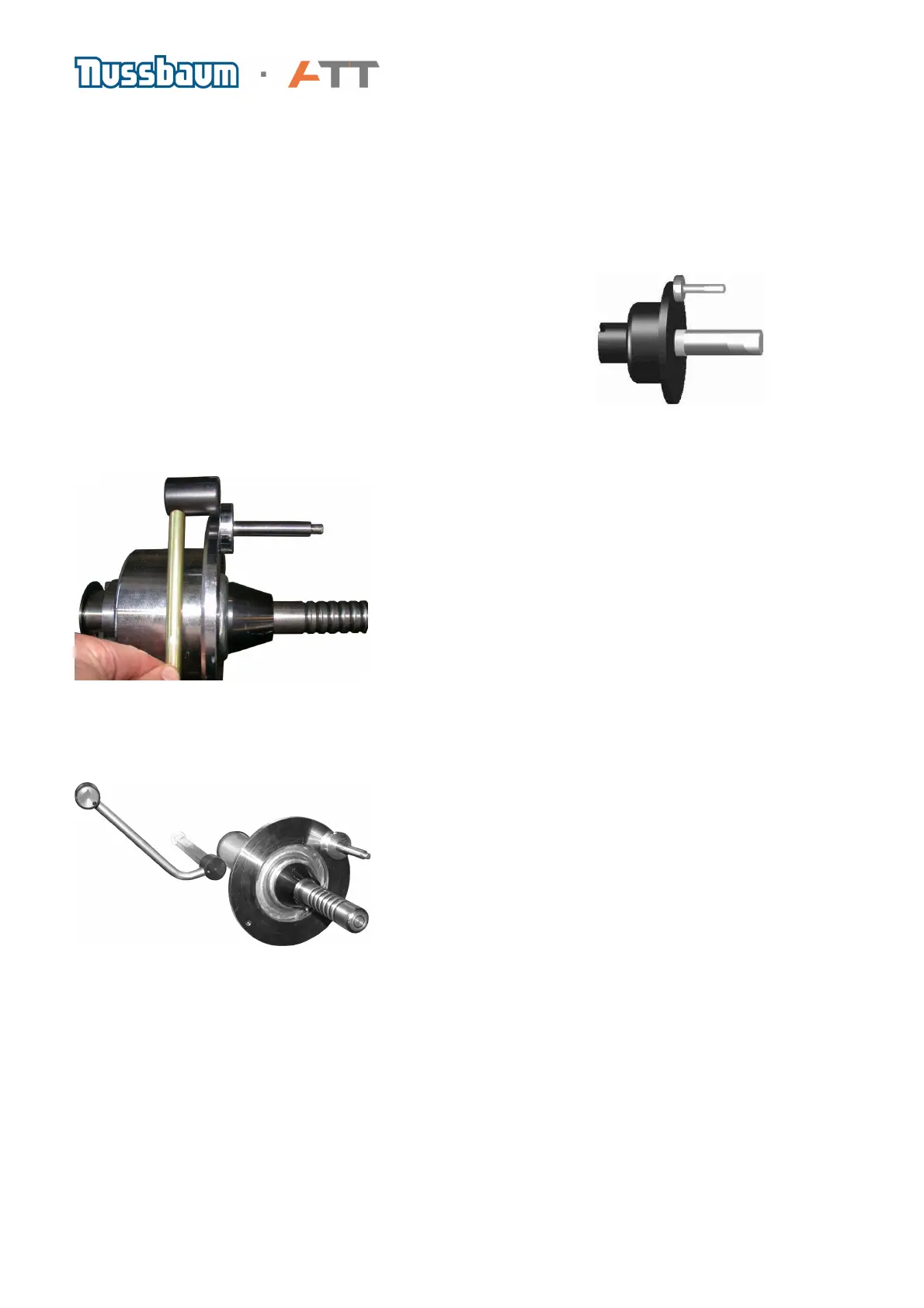

For the calibration of the gauges the calibration weight is
required. It has to be attached to the mid centering device as
shown in the left picture
Step 1 – POS 1 - Distance
Extend the inside gauge to the position 1 and hold it there until an audible signal is heard, which
means the measurement has been accepted
Step 2 – POS 2 - Diameter
Still in the extended position turn the gauge towards you into position 2 and hold until an audible
signal is heard, which means the measurement has been accepted
Place the inside gauge back in the home position and an audible signal should be heard
With machines without an outside gauge the calibration procedure is complete and the program
returns to normal mode.
