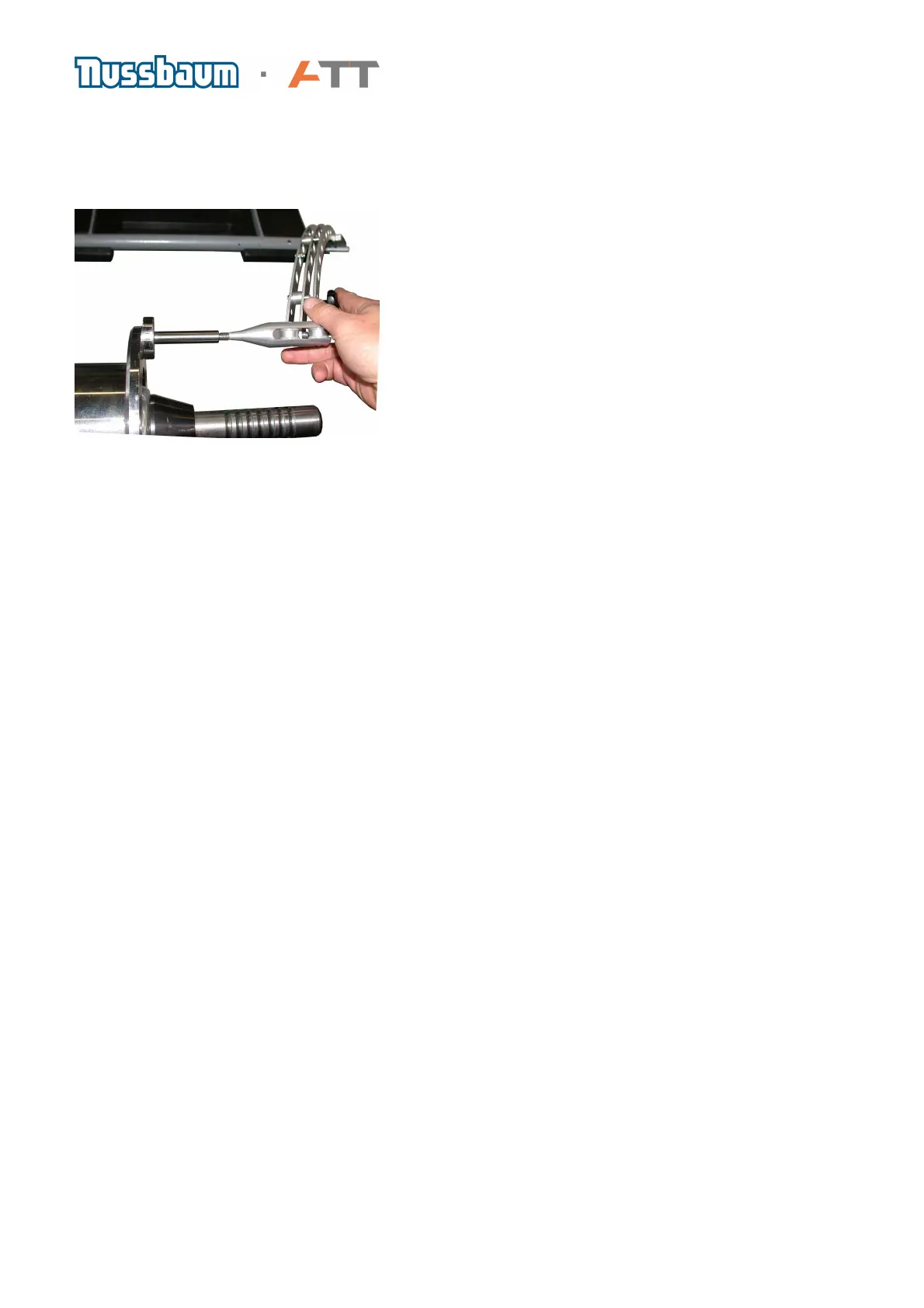

Step 3 – POS 3 – Width (only when an outside gauge arm is present)
Bring the tip of outside gauge to the tip of the “long” end of the calibration weight and hold it in this
position until an audible signal is heard, which means the measurement has been accepted.
Return the outside gauge into the home position and an audible signal is heard and the program
returns to normal mode
F 11 Counters
There are 3 counter values displayed that appear automatically one after the other with app. 10
seconds gap:
1. The first counter value shown is the total number of measurement runs since commissioning
of the machine. The counter value shown on the display should be multiplied by 10 to get
the actual value.
2. Number of measuring runs since last calibration.
3. Number of measuring runs since last power on of the machine.
After having displayed all counters the machine will change back automatically to normal mode
F 13 Setting of the brake
br --- Brake active. After the measuring run the wheel is stopped in the left correction plane
--- br Brake active. After the measuring run the wheel is stopped in the right correction plane
--- --- Brake disactivated
F 14 Setting of automatic cycle
Automatic cycle ON means:
- The wheel will be stopped in the 1st imbalance position and locked
- After having attached the weights the wheel will be moved automatically into the 2nd imbalance
position by pressing the STOP / POS button
Automatic cycle OFF means:
The wheel will be stopped in the 1st imbalance position and locked
- Does the operator want to move the wheel into the 2
nd
imbalance position he has to push the
STOP button in order to unlock the brake. In this case the wheel needs to be moved into the 2
nd
position manually and locked there by pushing the STOP button
