Page 5 of 15
3. Mounting the wheel hood
The wheel hood is shipped completely assembled including the shaft and wheel hood switch. It is
mounted with 4 screws to the cabinet of the wheel balancer.
The screws are packed in the bag together with the instruction manual.

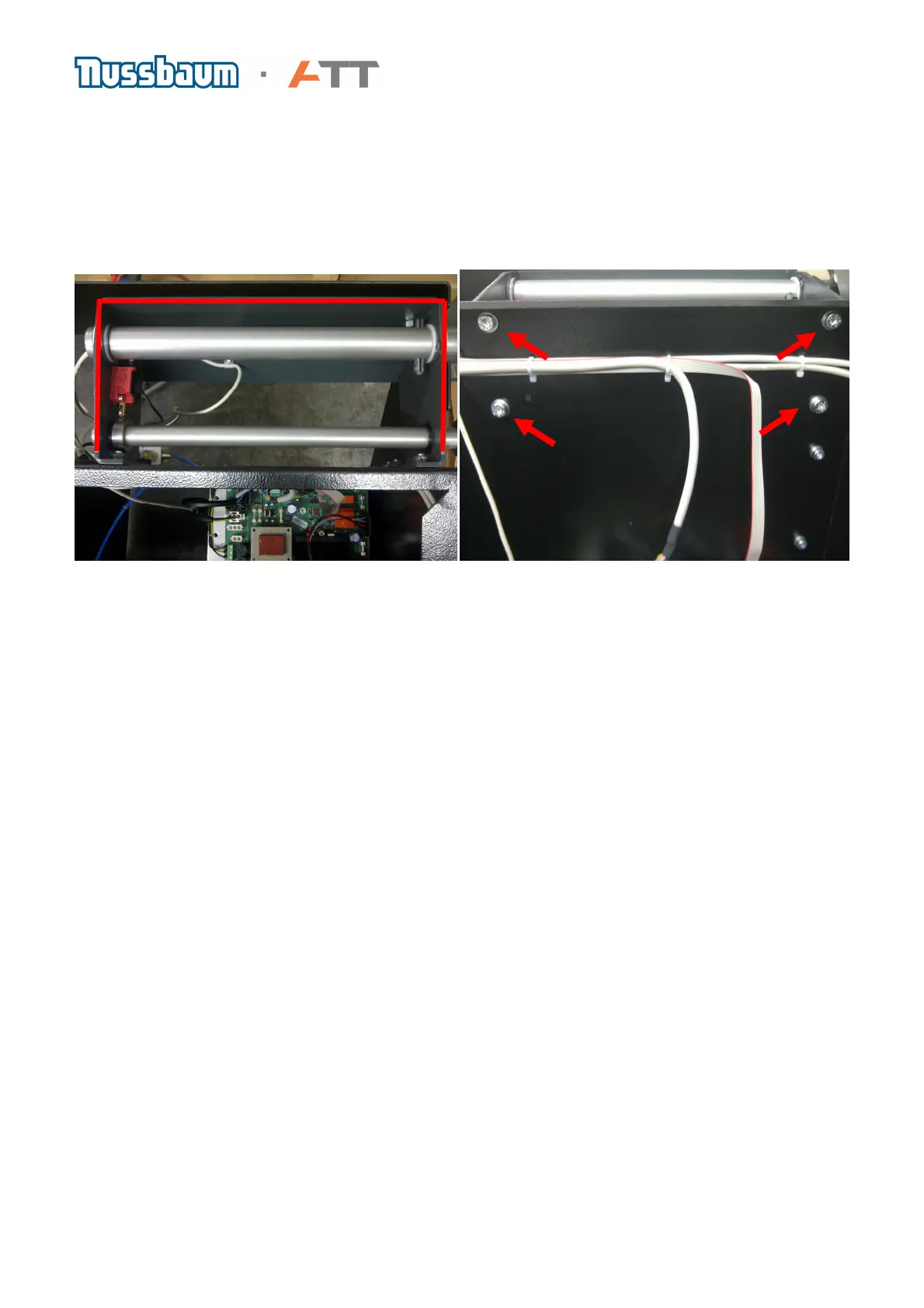

View from top View from inside of cabinet
The connecting cable of the wheel hood switch has to be routed through the bore holes in the
cabinet and the connection plug has to be connected to J 5 on the display board (see chapter. 4.)
For wheel balancer versions with an outside arm the connecting cable has to be connected to
J 12 as described in the drawing on the display board.
