Page 7 of 15

5. Mounting the Touch PC

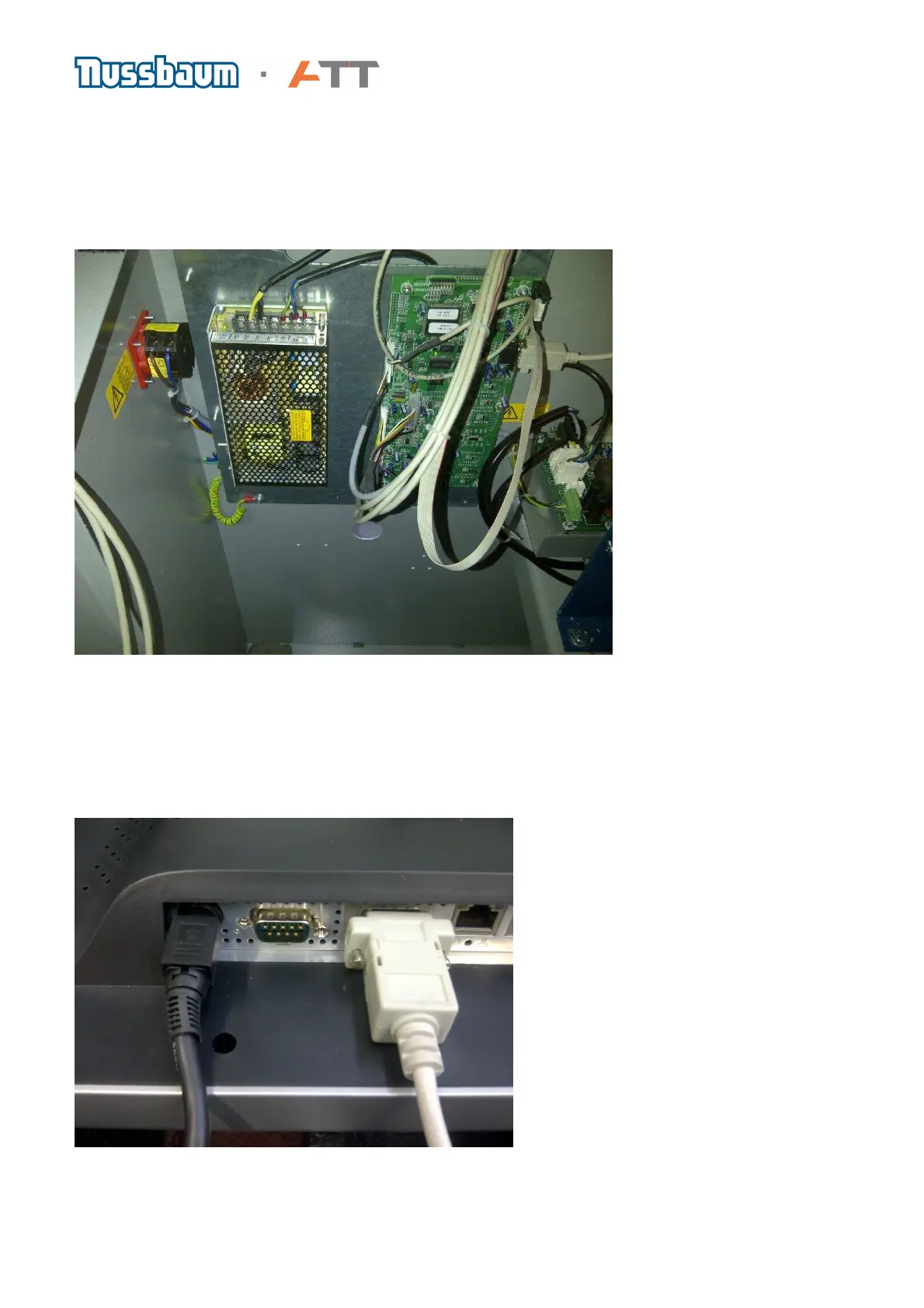

The basic balancing board where the connectors for the wheel hood switch and for the outside

arm (if present) have to be connected is located inside the cabinet

Guide the serial cable and the power supply cable through the monitor boom and mount the

weight tray to the cabinet

Connect the 2 cables as shown in the picture below

Fix the Touch PC with the screw to the top of the monitor boom
