* Standard Hardware. May be purchased locally.
** Not Illustrated.
Order replacement parts by "PART NO." - NOT by "KEY NO."
Damper Rod 1 ——— 98009485
Damper Leaf (2 Req.) 2 ——— 98006062
Damper Rod Bushing (2 Req.) 3 ——— 99100379
Housing 4 97007080 97007077
#8B x 3/8 Hex Head Self Tapping 5 99170245 99170245
Screws (2 Req.)*
Receptacle 6 99270982 99270982
Fan Blade 7 99020271 99020165
Fan Motor 8 99080596 99080176
¼-20 U-Type Sheet Metal Nut 9 99260434 99260434
Motor Mounting Bracket 10 98006066 98007820
#8-32 x 1/2 Hex Head Self 11 99150479 99150479
Tapping Screws (2 Req.) *
Motor Mounting Nuts (2 Req.) 12 99260425 99260428
Grille (Polymeric) 13 99110977 99110916
Grille Knob 15 97011918 97011918
Wiring Box Cover 16 98006047 98006047
#10-32 x 1/2 Hex Head Self 17 99150471 99150471
Tapping Screw
Wiring Box 18 98006046 98006046
Support Angle - long (4 Req.) 19 98003036 98003036
PH HD Screw, #10-12 x .625 20 99150591 99150591
Damper Bumper (2 Req.) 21 ——— 99100586
Grille Stud 22 99420580 99420585
Grille Bracket 23 98008494 98008494
MODEL 504 MODEL 505
PART NO. PART NO.
KEY
DESCRIPTION NO.

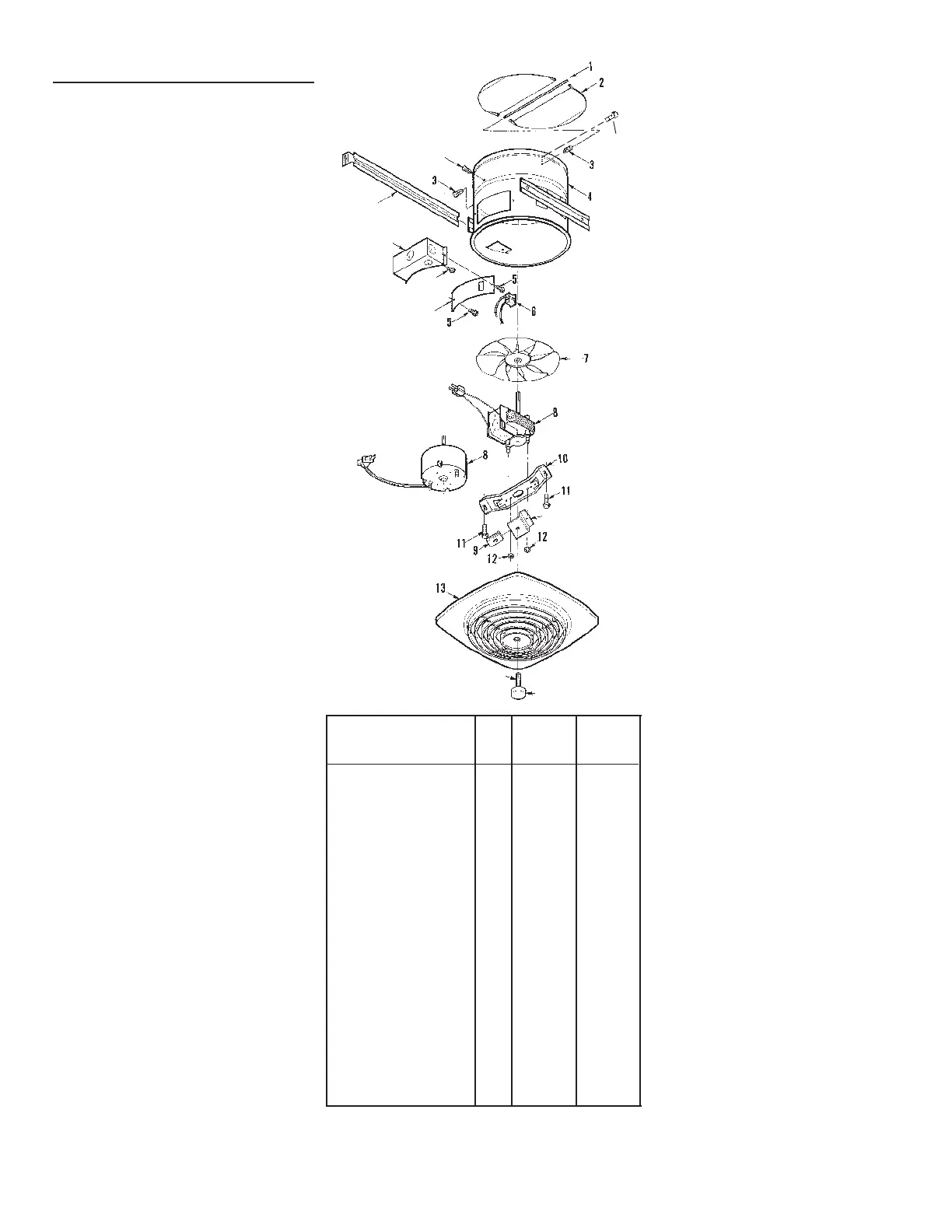

SERVICE PARTS
MODELS 504 & 505
(504)
(505)
15
22
23
16
17
18
19
21
20
