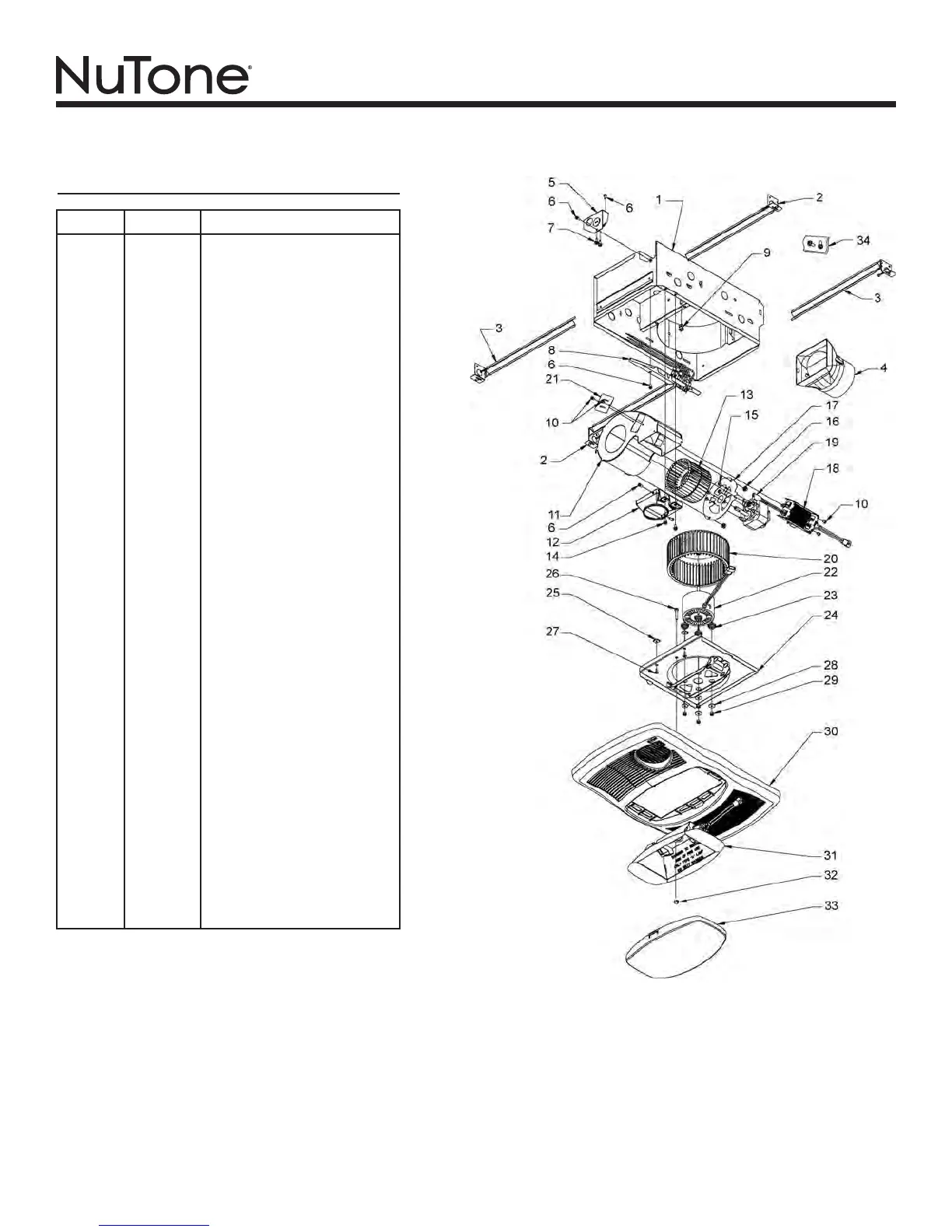

Page 6
MODEL 765HL
SERVICE PARTS
Key No. Part No. Description
1 97017572 Housing Assembly
2 97017712 Slide Mounting Channel
RH (2 req)
3 97017711 Slide Mounting Channel
LH (2 req)
4 97016449 Duct Connector Assembly, 4”
5 98010407 Electrical Knockout Panel
6 99170245 Screw, #8-18 X .375”
*
(5 req)
7 99150471 Screw, Ground #10-32 X .500
PH HWH
*
(2 req)
8 97017713 Wire Panel Assembly
9 99420666 Wire Clip
10 99150415 Screw, 8B X .25
SL HX SR W
*
(4 req)
11 97017609 Heater Scroll
12 98010405 Transition
13 99020294 Heater Wheel
14 97017742 Screw Bag for Transition
15 99260428 Nut, #6-32 X 5/16
*
Twin Whiz
(4 req)
16 99260488 Nut, #10-24
*
Whiz Hex
Flange (4 req)
17 98010409 Heater Motor Bracket
18 97020888 Heater Element
19 99080606 Heater Motor
20 99020293 Fan Wheel
21 98010089 Heating Element
Mounting Bracket
22 99080602 Fan Motor
23 99100491 Isolator Bushing (4 req)
24 97017606 Partition Assembly
25 93260454 Sheet Metal Nut, #8-18
*
(2 req)
26 99150583 Screw, #10-24 X 1.25”
*
27 93150459 Screw, #8-18 X .500”
*
(2 req)
28 99250959 Washer, Flat, #8
*
(4 req)
29 99260558 Nut, Hex Lock, #8-32
*
(4 req)
30 97017663 Grille Assembly
31 97017688 Reflector Assembly
32 97005316 Acorn Nut
33 99111414 Light Lens
34 97017739 Screw Hardware Bag for
Hanger Bars
**
97020890 Heater Scroll Assembly
(Includes Key Nos. 6,
10 thru 19, 21)
**
97017769 Blower Assembly
(Includes Key Nos. 20, 22,
23, 24, 26, 28, 29)
Order service parts by “Part No.” - not by “Key No.”
*
Standard hardware - may be purchased locally.
**
Not shown assembled.
99045040B
