NuTone ALLURE WS3 Series Instructions

®
Page 3
ALLURE
®
WS3 SERIES
RANGE HOOD

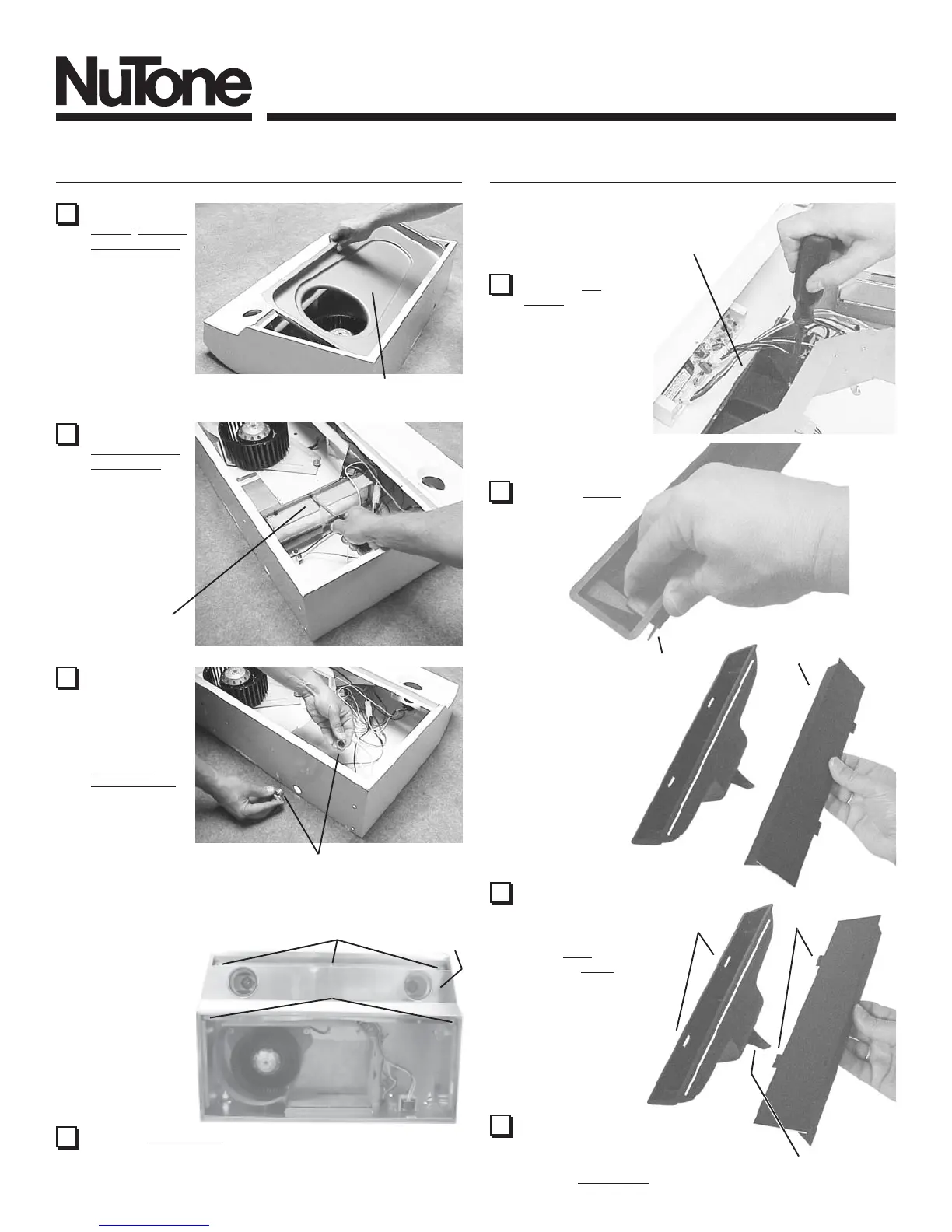

PREPARE THE HOOD PREPARE THE HOOD
4 Remove
Damper/Duct
Connector
from inside
the hood. Set
connector
aside - with
mounting
screws and
parts bag.
3 Remove
Teflon
®
-coated
bottom cover
from hood. Set
cover and
mounting
screws aside.
5 Remove
either top or
back wiring
knockout and
install
approved
Electrical
Cable Clamp.
DAMPER/
DUCT
CONNECTOR
ELECTRICAL CABLE CLAMP
TEFLON
®
-COATED BOTTOM COVER
(Held in place with 2 screws)
Teflon
®
is a registered
trademark of DuPont.
Non-Ducted Installation - Skip to Step 15.
6 Remove Light Panel - held in place with (3) #8 screws and
(2) #8 screws. Disconnect light assembly wire harness
(white connector).
(3) #8 SCREWS
LIGHT
PANEL
(2) #8 SCREWS
The following
Steps (6 thru
14) are for
DUCTED
INSTALLATION
ONLY.
➙
➙
BAFFLE
7 Remove Air
Chute - held in
place with one
(1) screw.
NOTE: Be
careful not to
disconnect any
wires.
9 Rotate baffle.
Reinsert baffle into
air chute (as
shown) so that
baffle
tabs fit all the
way into
slots in air
chute. An audible
“click” will be heard
when fully installed.
This will close off
the air flow through
the non-ducted
slots on top of
hood.
10 Re-install air chute, re-connect wire
harness, and replace light panel.
NOTE: Be careful not to trap wires
between
support fin and light panel.
AIR CHUTE
SLOTS
➙
➙
8 Remove Baffle
from air chute.
➙
BAFFLE
SUPPORT FIN
TABS
