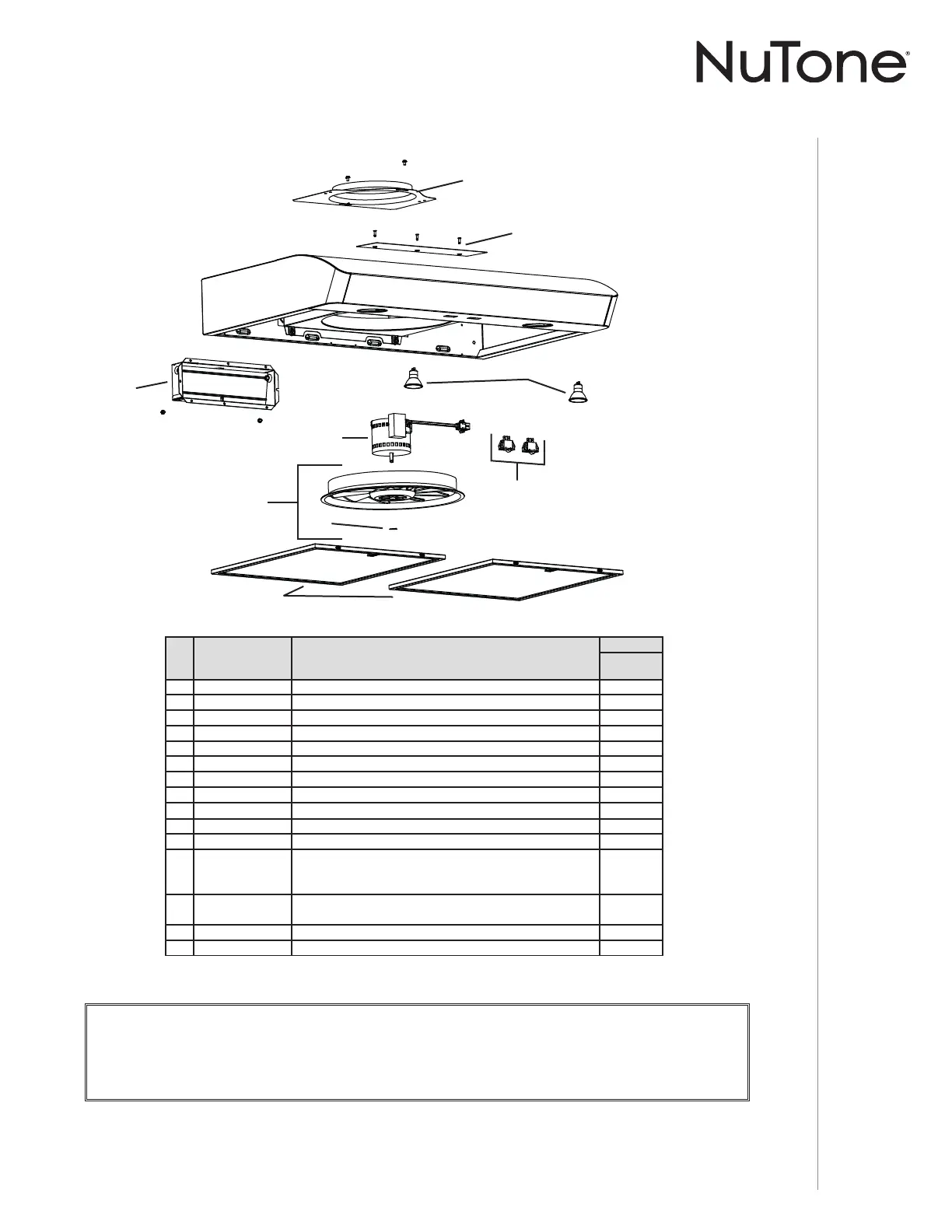

INSTALLATION MANUAL
SERVICE PARTS
23
KEY
NO.
PART NO.DESCRIPTION
QUANTITY
30"
STAINLESS
1 S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS)1
2 SR680508 7'' ROUND DUCT PLATE (INCLUDING SCREWS)1
3 S97020534 3¼” X 10” DAMPER ASSEMBLY (INCLUDING SCREWS)1
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR)1
5 S97020407 F
ANPELLER (INCLUDING ITEM 6) 1
6 SR99420635 CLIP FOR FANPELLER 1
7 S99010430-002 GREASE FILTER - OPEN MESH -TYPE C1 (SET OF 2) 1
8 S99030375 R
OCKER SWITCHES, GREY (SET OF 2) 1
9 S1110531 LED B
ULB 7 W, GU10 2
* S99271660 W
IRE HARNESS 1
* S98011637 WIRING COVER 1
* S97020360
P
ARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2”,
6 ROUND HEAD NO. 8 X 5/8” WOOD SCREWS,
6 NO. 8 X 1/2” COUNTERSUNK WOOD SCREWS
1
* S97020466
NON-DUCTED FILTER - TYPE XC (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
1
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS)1
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE)1
AVSC1 SERIES
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC genuine replacement parts only. Broan-
NuTone LLC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable
certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and
drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC recommend to contact a
certified service depot for all replacement parts and repairs.
* ITEM NOT SHOWN.
