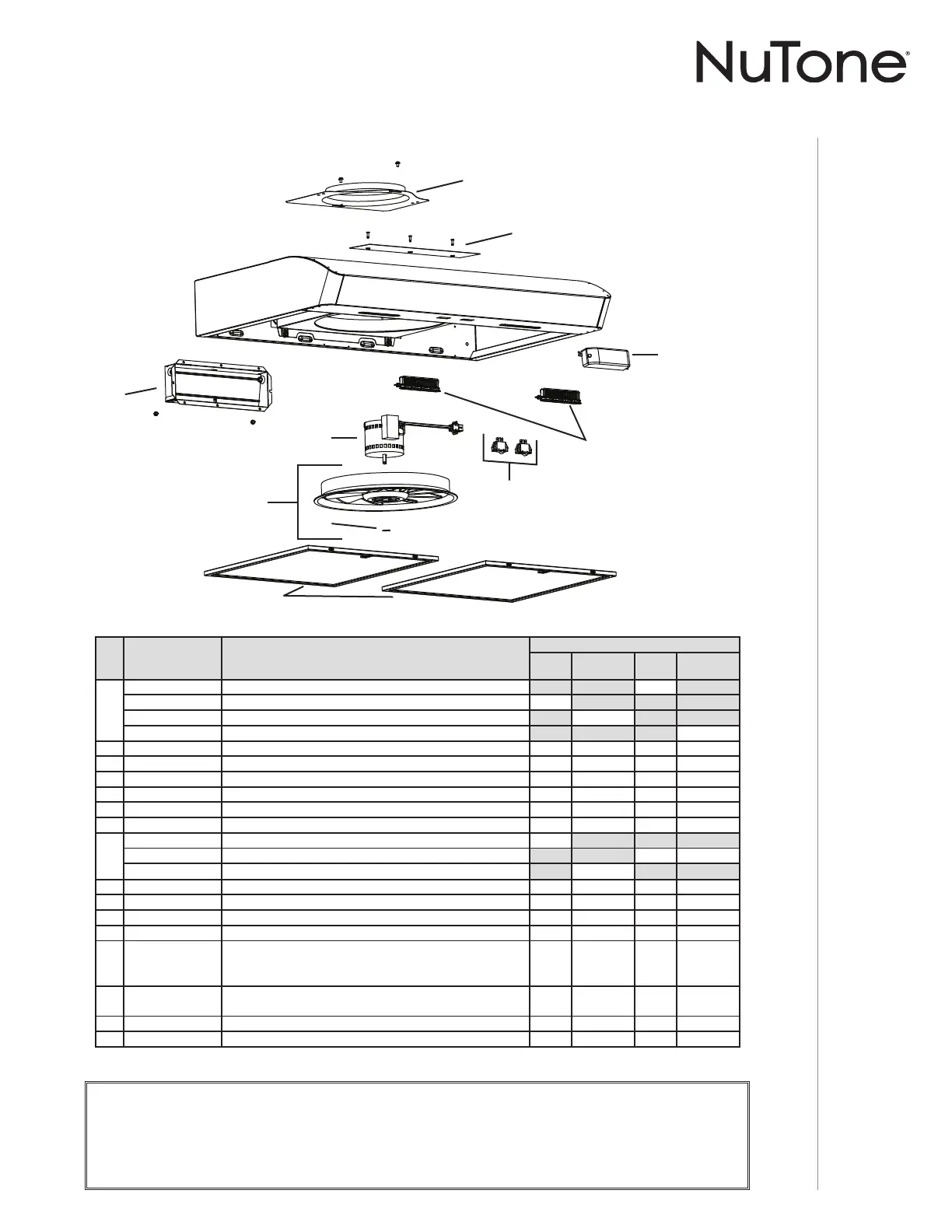

INSTALLATION MANUAL
SERVICE PARTS
21
KEY
NO.
PART NO.DESCRIPTION
QUANTITY
30"
WHITE
30"
STAINLESS
30"
BLACK
30" BLACK
STAINLESS
1
S97020029 R
ECIRCULATION COVER PLATE, BLACK (INCLUDING SCREWS) 1
S97020030 RECIRCULATION COVER PLATE, WHITE (INCLUDING SCREWS)1
S97020031 RECIRCULATION COVER PLATE, STAINLESS STEEL (INCL. SCREWS)1
S98011873 RECIRCULATION COVER PLATE, BLACK STAINLESS (INCL. SCREWS)1
2 SR680508 7'' R
OUND DUCT PLATE (INCLUDING SCREWS) 1111
3 S97020534 3¼” X 10” DAMPER ASSEMBLY (INCLUDING SCREWS) 1111
4 S97020409 BLOWER MOTOR (INCLUDING 4 SCREWS AND 1 CAPACITOR) 1111
5 S97020407 FANPELLER (INCLUDING ITEM 6) 1111
6 SR99420635 CLIP FOR FANPELLER 1111
7 S99010430-002 G
REASE FILTER - OPEN MESH -TYPE C1 (SET OF 2) 1111
8
S99030377 R
OCKER SWITCHES, WHITE (SET OF 2) 1
S99030376 ROCKER SWITCHES, BLACK (SET OF 2) 1 1
S99030375 R
OCKER SWITCHES, GREY (SET OF 2) 1
9 S97020444 LED
MODULE (PAIR) 1111
10 S97020447 DRIVER FOR LED (WITH SCREWS) 1111
* S97020449 W
IRE HARNESS 1111
* S98011637 WIRING COVER 1111
* S97020360
PARTS BAG INCLUDING: 4 METAL SCREWS NO. 8-18 X 1/2”,
6 ROUND HEAD NO. 8 X 5/8” WOOD SCREWS,
6 NO. 8 X 1/2” COUNTERSUNK WOOD SCREWS
1111
* S97020466
NON-DUCTED FILTER - TYPE XC (SET OF 2)
(NON-DUCTED INSTALLATION ONLY)
1111
* S99527587 NON-DUCTED FILTER CLIP KIT (INCLUDES 4 CLIPS) 1111
* S97020470 EASY INSTALL KIT (INCLUDING HARDWARE) 1111
AVSF1 SERIES
(30
IN. WIDTH)
REPLACEMENT PARTS AND REPAIRS
In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC or Venmar Ventilation ULC genuine
replacement parts only. Broan-NuTone LLC or Venmar Ventilation ULC genuine replacement parts are specially designed for each
unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third
party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in
premature failing. Broan-NuTone LLC and Venmar Ventilation ULC recommend to contact a certified service depot for all replacement
parts and repairs.
