NuTone inVent AE80SL User Manual

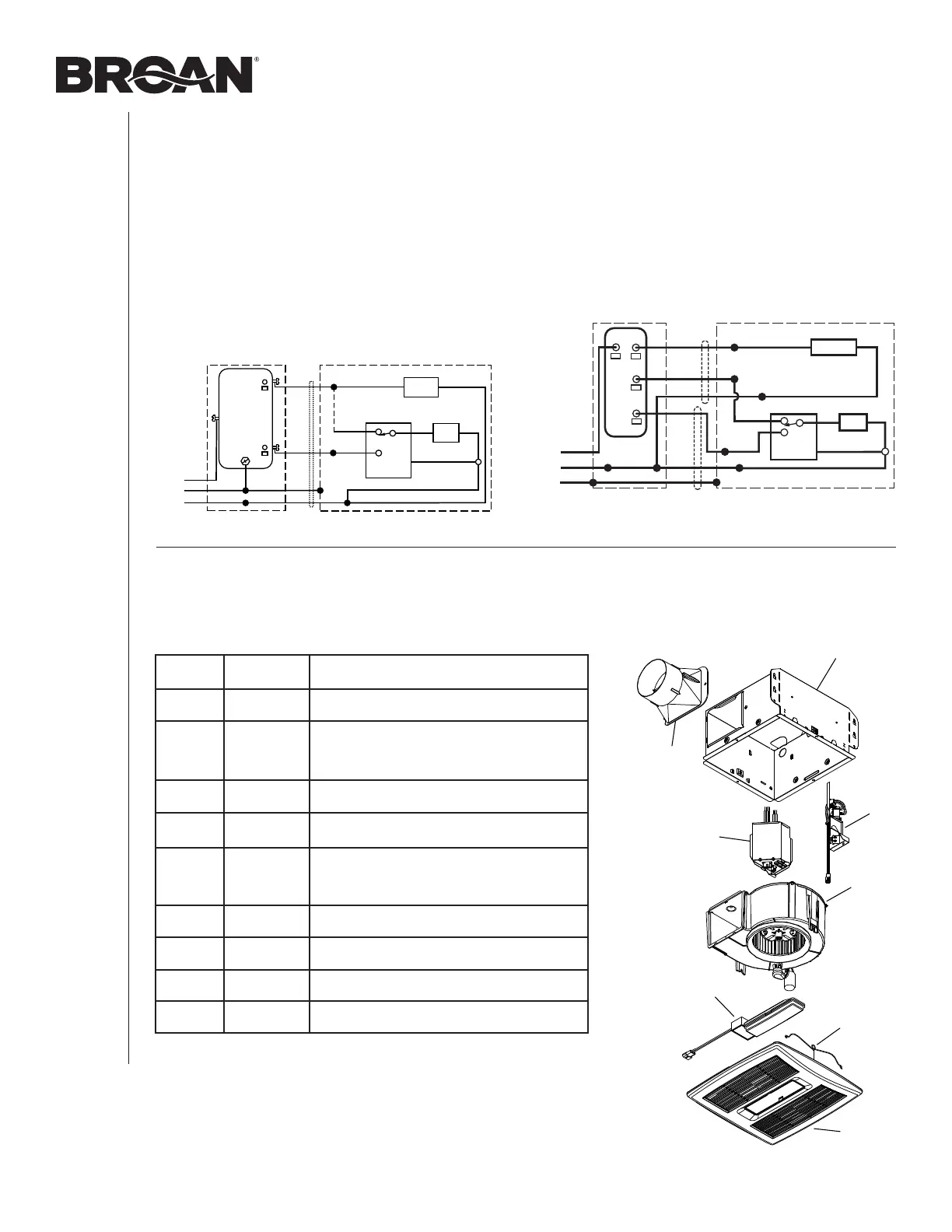

INSTALLATION AND USE & CARE INSTRUCTIONS SERVICE PARTS
8
MODELS AE80SL, AE110SL
SERVICE PARTS
1
2
3
5
7
6
8
4
WIRING DIAGRAMS
WIRING OPTION #1
• When first switch (1) is ON, fan will operate auto-
matically, based on room humidity conditions.
• Turn fan ON immediately for the set timer period
(to control odors), by cycling first switch.
• Use second switch (2) to turn light ON/OFF.
• With optional connection shown, fan will always
be ON when light is ON.
Key No. Part No. Description
1 97019514 Housing
2
97019561
97020122
Duct Connector - 4-in. (AE80SL)
Duct Connector - 4-in. (AE110SL)
3 97020537 Wire Panel Assembly
4 97020538 Humidity Control Panel Assembly
5
97019785
97019786
Blower Assembly (AE80SL)
Blower Assembly (AE110SL)
6 99271529 LED Module
7 99140214 Grille Spring (2 req.)
8 97019920 Grille Assembly (includes key no. 6 & 7)
97019743 Parts Bag (not shown)
BLK
HUMIDITY
CONTROL
LIGHT
FAN
GREY
BRN
BLK
RED
BLK
BLK
WHT
WHT
WHTWHT
WHT
GRD
GRD
LIGHT
(ON/OFF)
FAN
(AUTO/OFF)
120
VAC
LINE
IN
COM
2-FUNCTION CONTROL
(PURCHASE SEPARATELY)
WHT
GRD
SWITCH UNIT
(Optional)
(1)
(2)
WIRING OPTION #2
• When first switch (1) is ON, fan will operate auto-
matically based on room humidity conditions.
• Turn fan ON immediately (to control odors) by using
second switch (2).
• Use third switch (3) to turn light ON/OFF.
3-FUNCTION CONTROL
(PURCHASE SEPARATELY)
LIGHT
(ON/OFF)
COM
FAN
(ON/OFF)
FAN AUTO
(AUTO/OFF)
120
VAC
LINE
IN
SWITCH
WHT
GRD
BLK
BLK
WHT
UNIT
BLK
WHT
GRD
BLK
RED
LIGHT
WHT
WHT
BLK
WHT
BRN
HUMIDITY
CONTROL
FAN
WHT
(1)
(2)
(3)
GREY
